H 1748 (55AI4HPS050) - Cub Cadet Walk-Behind Mower Kawasaki FH541V-CS25 Electrical Equipment Parts Diagram

Walk-Behind Mower

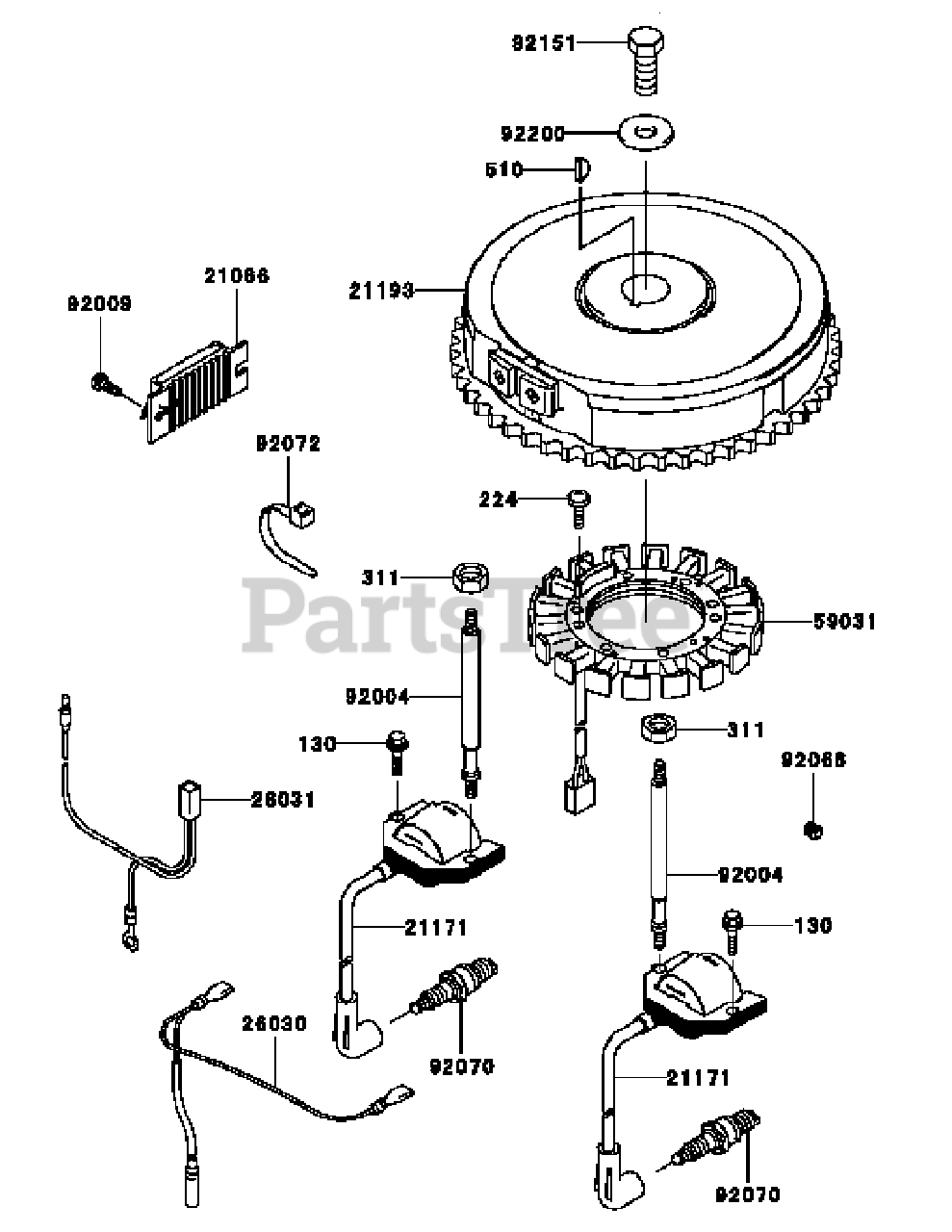

Kawasaki FH541V-CS25 Electrical Equipment Parts Diagram

  • Title

130

Cub Cadet KM-130B0620

BOLT-FLANGED,6X20

$1.49

$

In Stock, Qty 6

0

21066

Cub Cadet KM-21066-7011

REGULATOR-VOLTAGE

$77.99

$

In Stock, Qty 12

0

21171

Cub Cadet KM-21171-7013

COIL-ASSY-IGNITION
(Superseded to KM-21171-7034)

$81.99

$

In Stock, Qty 20+

0

21193

Cub Cadet KM-21193-7007

FLYWHEEL-ASSY

$

$

Not available

224

Cub Cadet KM-224B0520

SCREW-PAN-WP-CROS,5X20
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 16

0

26030

Cub Cadet KM-26030-7001

HARNESS

$10.99

$

In Stock, only 1 left!

0

26031

Cub Cadet KM-26031-7012

HARNESS

$7.99

$

In Stock, Qty 8

0

311

Cub Cadet KM-311B0600

NUT-HEX,6MM
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

510

Cub Cadet KM-510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 9

0

59031

Cub Cadet KM-59031-7009

COIL-CHARGING

$128.99

$

Usually ships in 2-5 days

0

92004

Cub Cadet KM-92004-7009

STUD
(Superseded to KM-92004-7026)

$4.99

$

In Stock, Qty 14

0

92009

Cub Cadet KM-92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

92070

Cub Cadet TC-611049

PLUG-SPARK,SOLID

$4.99

$

In Stock, Qty 20+

0

92072

Cub Cadet KM-92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92151

Cub Cadet KM-92151-2097

BOLT,12X30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 9

0

92200

Cub Cadet KM-92200-7002

WASHER

$3.49

$

In Stock, only 4 left!

0
