H 51 D (954052601) - Husqvarna Walk-Behind Mower (1991-01) General Assembly Parts Diagram

Walk-Behind Mower

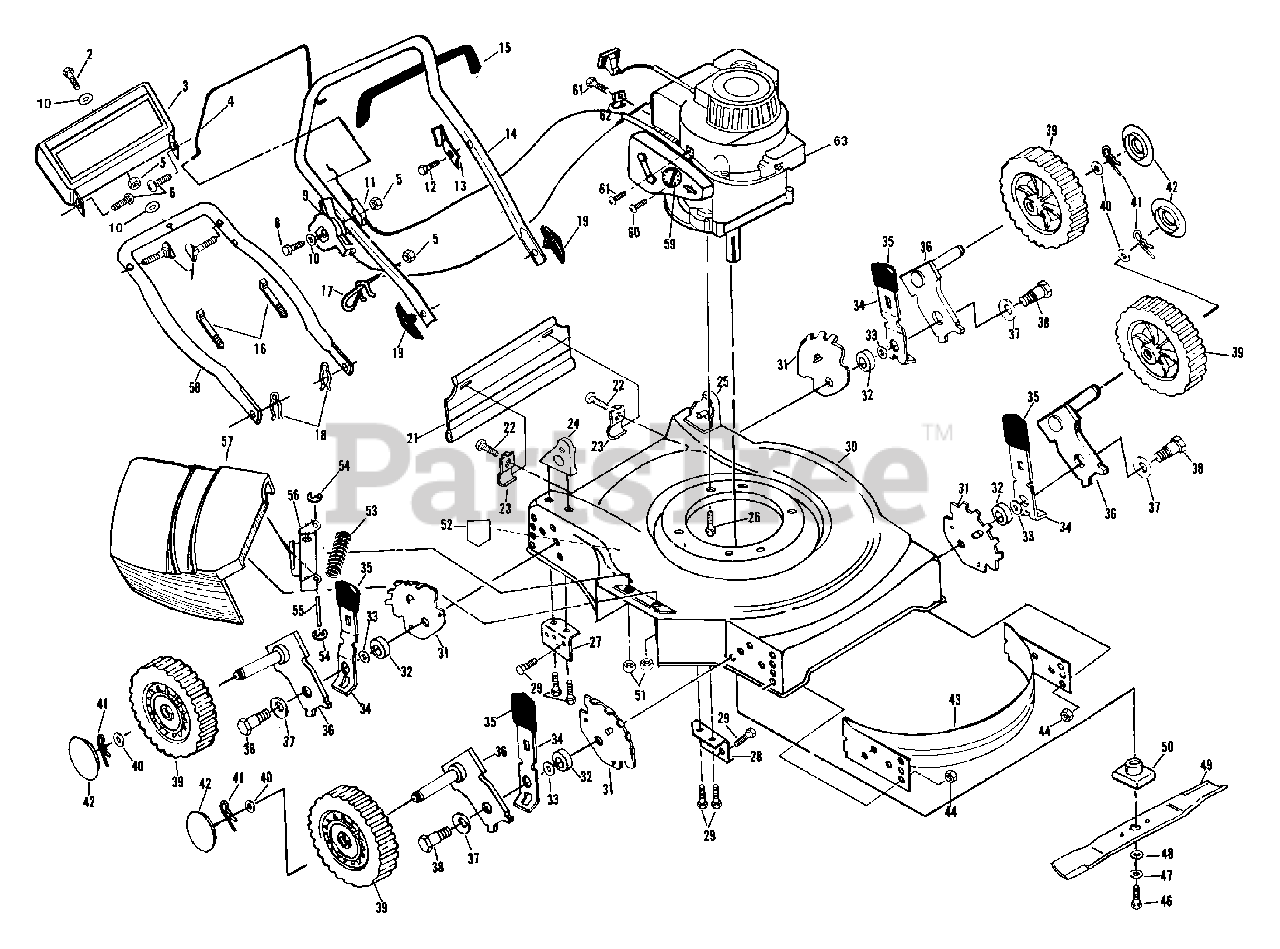

General Assembly Parts Diagram

  • Title

2

Husqvarna 532085436

Hex Washer Head Screw 1/4-20 x 1-1/2
(Superseded to 874760424)

$

$

Not available

3

Husqvarna 532800547

Trim Plate

$

$

Not available

4

Husqvarna 532850758

Control Bar
(Superseded to 532850735)

$

$

Not available

5

Husqvarna 532063601

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532036953

Self-tapping Screw #10-24 x 5/8

$

$

Not available

7

Husqvarna 532058714

Handle Bolt 5/16-18 x 1-3/4
(Superseded to 532183724)

$

$

Not available

8

Husqvarna 532085692

Machine Screw 1/4-20 x 2-1/8
(Superseded to 874250434)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532851461

Throttle Control

$

$

Not available

10

Husqvarna 532085723

Washer

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532851669

Engine Zone Control Cable

$18.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532750097

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 532125171

Upper Handle
(Superseded to 532125161)

$

$

Not available

15

Husqvarna 532850724

Handle Grip
(Superseded to 585161003)

$

$

Not available

16

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532800357

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

18

Husqvarna 532051793

Hairpin Cotter

$7.49

$

In Stock, only 1 left!

0

19

Husqvarna 532063688

Handle Knob
(Superseded to 532183724)

$

$

Not available

21

Husqvarna 532700062

Rear Skirt
(Superseded to 532188984)

$

$

Not available

22

Husqvarna 532081276

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

23

Husqvarna 532125207

Rear Skirt Bracket
(Superseded to 532192301)

$

$

Not available

24

Husqvarna 532125164

Handle Bracket Assembly (Right)

$

$

Not available

25

Husqvarna 532125163

Handle Bracket Assembly (Left)

$

$

Not available

26

Husqvarna 532850998

Thread Rolling Screw 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

In Stock, Qty 10

0

27

Husqvarna 532125205

Support Handle Bracket (Right)

$

$

Not available

28

Husqvarna 532125206

Support Handle Bracket (Left)

$

$

Currently unavailable

29

Husqvarna 532055187

Screw 5/16-18
(Superseded to 817000512)

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 532801091

Lawn Mower Housing

Note: (Includes Key #52)

$

$

Not available

31

Husqvarna 532125167

Wheel Adjusting Bracket
(Superseded to 532850955)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532084920

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 3 left!

0

33

Husqvarna 532088348

Washer

$7.49

$

In Stock, only 4 left!

0

34

Husqvarna 532125168

Selector Spring
(Superseded to 532850856)

$4.99

$

In Stock, Qty 11

0

35

Husqvarna 532077865

Selector Knob
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 532125172

Axle Arm Assembly
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532062335

Belleville Washer

$9.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532084921

Shoulder Bolt 3/8-16
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

39

Husqvarna 532086984

Wheel Assembly 8.0 x 2.0

$

$

Not available

40

Husqvarna 532052160

Washer

$

$

Not available

41

Husqvarna 532085179

Retainer Clip

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532800627

Hubcap

$

$

Not available

43

Husqvarna 532125044

Front Baffle

$

$

Not available

44

Husqvarna 532062336

Locknut 3/8-16
(Superseded to 873610600)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850972

20" Blade
(Superseded to 532145106)

$14.99

$

In Stock, Qty 8

0

50

Husqvarna 532851514

Blade Adapter

$17.99

$

In Stock, Qty 20+

0

51

Husqvarna 532053490

Locknut
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

52

Husqvarna 532107339

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

53

Husqvarna 532087589

Torsion Spring

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532033750

E-Ring
(Superseded to 812000014)

$7.49

$

In Stock, only 2 left!

0

55

Husqvarna 532087590

Hinge Rod

$

$

Not available

56

Husqvarna 532087593

Housing Bracket Assembly

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532850778

Discharge Guard

$

$

Not available

58

Husqvarna 532125173

Lower Handle
(Superseded to 532157081)

$

$

Not available

59

Husqvarna 532103251

Muffler Deflector

$

$

Not available

60

Husqvarna 532093705

Screw #8-32 x 3/8
(Superseded to 532069485)

$

$

Not available

61

Husqvarna 532107488

Thread Rolling Screw #10-32 x 5/8

$

$

Not available

62

Husqvarna 532213146

Cable Clamp
(Superseded to 532125078)

$

$

Not available

63

Engine Briggs & Stratton Model No. 96502, Type No. 3123-01

Note: These parts must be purchased through an authorized Briggs & Stratton dealer.

$

$

Not available

Husqvarna 532125046

Rear Baffle

Note: (Not Shown)

$

$

Not available

Husqvarna 532801675

Operator's Manual (English)

$

$

Not available

Husqvarna 532128433

Operator's Manual (French)

$

$

Currently unavailable

Husqvarna 532800570

Decal (Engine)

$

$

Not available

Husqvarna 532800571

Decal (Housing)

$

$

Not available

Husqvarna 532850788

Decal (Trim Plate)

$

$

Not available
