H 924RX (1695513) - Snapper 24" Snow Thrower, 9hp (2009) Frame Group Parts Diagram

24" Snow Thrower, 9hp

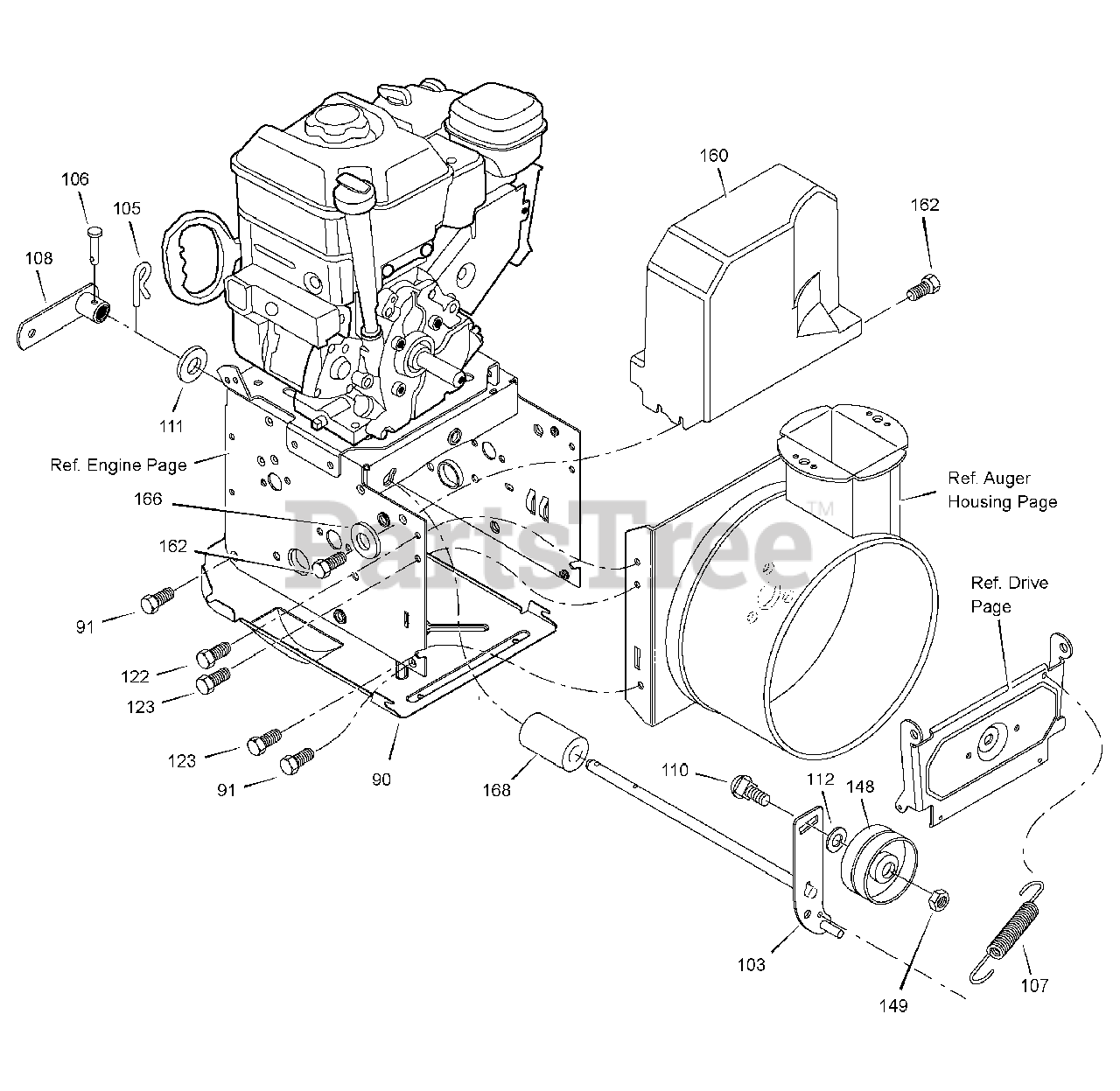

Frame Group Parts Diagram

  • Title

90

Snapper 1740906ASM

COVER, BOTTOM
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

91

Snapper 723210

SCREW, 1/4-20X .63
(Superseded to 310169MA)

$4.49

$

In Stock, only 2 left!

0

103

Snapper 722132

IDLER ASSEMBLY, AUGER
(Superseded to 1501226YZMA)

$52.99

$

Usually ships in 2-12 days

0

105

Snapper 725367

PIN, HAIR .38DIAX1.64LG
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Snapper 1736381

PIN, CLEVIS 3/16" DIA
(Superseded to 703313)

$4.99

$

In Stock, Qty 8

0

107

Snapper 722455

SPRING, TENSION
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 10

0

108

Snapper 1733451

ARM, CONTROL
(Superseded to 1733451SM)

$20.99

$

In Stock, Qty 5

0

110

Snapper 724823

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Snapper 725351

WASHER, FLAT
(Superseded to 711617MA)

$5.49

$

In Stock, only 2 left!

0

112

Snapper 720164

WASHER
(Superseded to 017X48MA)

$8.49

$

Usually ships in 2-12 days

0

122

Snapper 722838

SCREW, TAP 5/16-18 X 0.50
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

123

Snapper 722839

SCREW, TAP 5/16-18 X 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Snapper 722378

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, only 1 left!

0

149

Snapper 724840

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

160

Snapper 727724

COVER, BELT

$

$

Currently unavailable

162

Snapper 722887

SCREW, TAP
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

166

Snapper 725330

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

Snapper 727720

SPACER, AUGER BRACKET
(Superseded to 1502041MA)

$5.99

$

Usually ships in 2-12 days

0
