H2013 SAC (MZBF) - Honda Harmony Lawn Tractor, Made in USA (SN: MZBF-6000001 - MZBF-6100000) STARTER MOTOR (1) Parts Diagram

Harmony Lawn Tractor, Made in USA

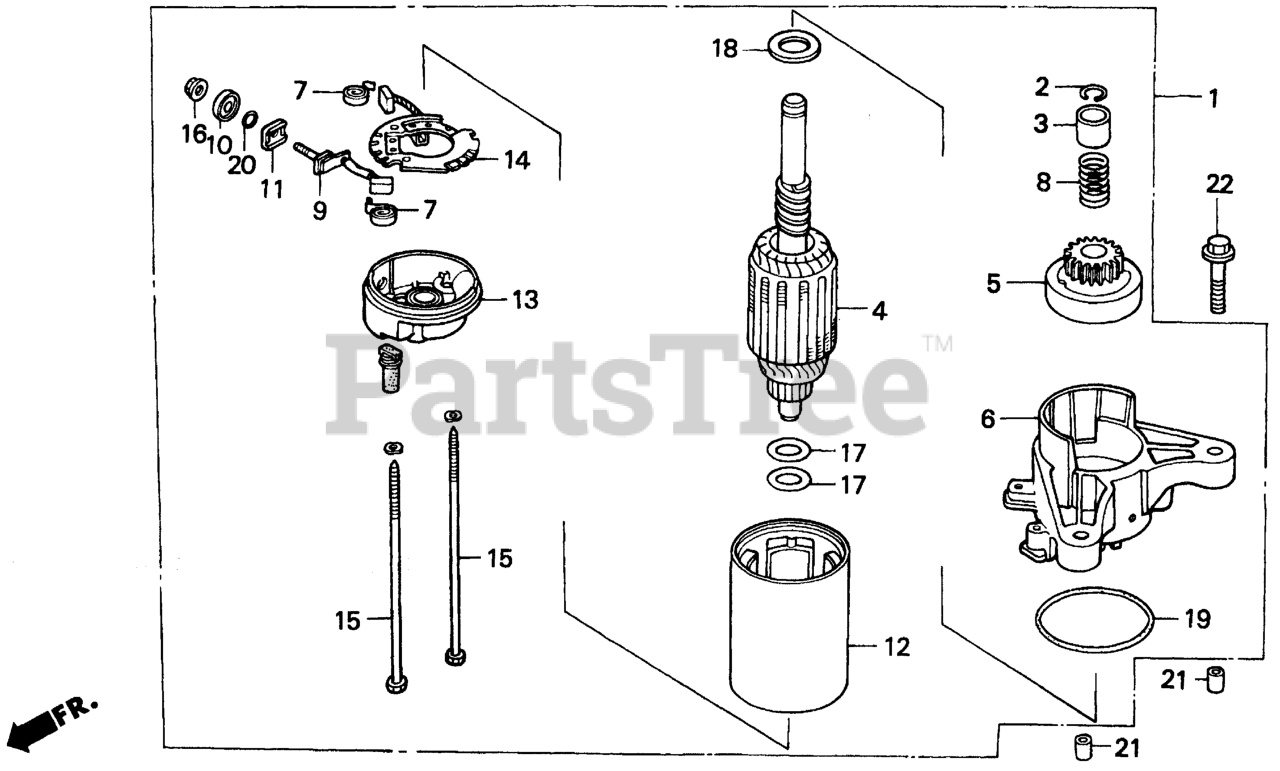

STARTER MOTOR (1) Parts Diagram

  • Title

1

Honda 31200-ZE9-L31

MOTOR ASSY., STARTER (Honda Code 4145884).

$

$

Not available

2

Honda 31201-ZA1-003

RING, SNAP (Honda Code 1238195).

$2.49

$

Usually ships in 3-6 days

0

3

Honda 31202-ZA1-003

COLLAR, CLUTCH (Honda Code 1238203).

$19.99

$

Usually ships in 3-6 days

0

4

Honda 31206-ZA1-003

ARMATURE (Honda Code 1238211).

$205.99

$

Usually ships in 3-6 days

0

5

Honda 31207-ZA1-003

CLUTCH, OVERRUNNING (Honda Code 1238229).

$177.99

$

Usually ships in 3-6 days

0

6

Honda 31208-ZE8-013

HOUSING, DRIVE SIDE (Honda Code 2171247).

$135.99

$

Usually ships in 3-6 days

0

7

Honda 31212-ZA0-700

SPRING, BRUSH (Honda Code 2110260).

$9.99

$

In Stock, only 1 left!

0

8

Honda 31212-ZE8-003

SPRING (Honda Code 2278984).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 31215-ZA1-013

BRUSH (Honda Code 2059608).

$12.99

$

In Stock, only 1 left!

0

10

Honda 31216-ZA1-013

BUSHING, INSULATION (Honda Code 2059616).

$7.99

$

Usually ships in 3-6 days

0

11

Honda 31217-ZA1-013

BUSHING, INSULATION (Honda Code 2059624).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 31218-ZA1-013

YOKE (Honda Code 2059632).

$150.99

$

Usually ships in 3-6 days

0

13

Honda 31219-ZE8-003

FRAME, STARTER END (Honda Code 2091254).

$55.99

$

Usually ships in 3-6 days

0

14

Honda 31231-ZA1-003

SEE PART DETAILS - PRI; PLATE, BRUSH HOLDER

$31.99

$

In Stock, only 1 left!

0

15

Honda 90102-ZA1-013

BOLT, THROUGH (Honda Code 4146692).

$11.99

$

Usually ships in 3-6 days

0

16

Honda 90202-ZA1-003

NUT (Honda Code 1412444).

$3.49

$

Usually ships in 3-6 days

0

17

Honda 90402-ZA1-003

SEE PART DETAILS - SUP; WASHER

$

$

Currently unavailable

18

Honda 90403-ZA1-003

WASHER (Honda Code 1412477).

$3.49

$

Usually ships in 3-6 days

0

19

Honda 91301-ZA1-003

O-RING

$

$

Currently unavailable

20

Honda 91302-ZA1-013

O-RING (Honda Code 2060382).

$2.49

$

Usually ships in 3-6 days

0

21

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

22

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 3 left!

0
