H3011 SA (MZAJ) - Honda Riding Mower, Made in Japan (SN: MZAJ-5000001 - MZAJ-6000000) FLYWHEEL Parts Diagram

Riding Mower, Made in Japan

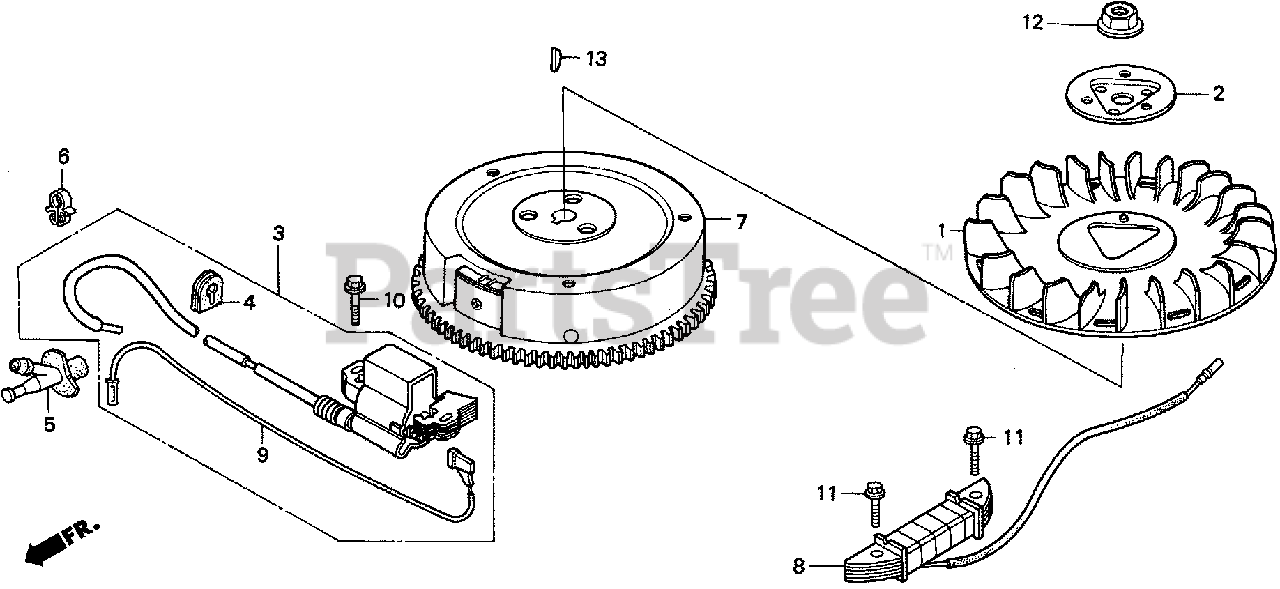

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE9-010

FAN, COOLING
(Superseded to 19511-ZE9-020)

$8.99

$

Usually ships in 3-6 days

0

2

Honda 19512-ZE2-000

PLATE, COOLING FAN SETTING

$10.99

$

In Stock, only 1 left!

0

3

Honda 30500-ZF5-L03

SEE PART DETAILS - SUP; COIL ASSY., IGNITION
(Superseded to 30500-ZF5-L04)

$135.99

$

Usually ships in 3-6 days

0

3

Honda 30500-ZF5-L04

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$135.99

$

Usually ships in 3-6 days

0

4

Honda 30563-ZE8-000

GROMMET, IGNITION

$5.99

$

Usually ships in 3-6 days

0

5

Honda 30700-ZE8-702

CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

6

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM)

$3.49

$

In Stock, only 1 left!

0

7

Honda 31100-ZE9-804

FLYWHEEL (SEL-4POLE)

$

$

Not available

8

Honda 31630-ZE2-841

SEE PART DETAILS - SUP; COIL ASSY., CHARGE (3A)
(Superseded to 31630-ZE2-842)

$55.99

$

In Stock, only 1 left!

0

8

Honda 31630-ZE2-842

SEE PART DETAILS - PRI; COIL ASSY., CHARGE (3A)

$55.99

$

In Stock, only 1 left!

0

9

Honda 36101-ZE9-L30

SEE PART DETAILS - PRI; WIRE, STOP SWITCH

Note: Use from Engine SN 2072745.

$25.99

$

Usually ships in 3-6 days

0

9

Honda 36101-ZF5-L00

WIRE, STOP SWITCH (NOT AVAILABLE)

Note: Use up to Engine SN 2072744.

$

$

Currently unavailable

10

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.49

$

In Stock, only 3 left!

0

11

Honda 90031-ZE1-000

BOLT, FLANGE (6X32) (CT200)

$3.49

$

In Stock, only 2 left!

0

12

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM)

Note: Use from Engine SN 2104461.

$9.49

$

Usually ships in 3-6 days

0

12

Honda 90201-ZE3-790

NUT, SPECIAL (16MM)

Note: Use up to Engine SN 2104460.

$10.99

$

Usually ships in 3-6 days

0

13

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

$3.99

$

Usually ships in 3-6 days

0
