H3013 H HSA (MZAH) - Honda Riding Mower, Made in Japan (SN: MZAH-6000001 - MZAH-9999999) 11H/13H INPUT SHAFT + COUNTERSHAFT Parts Diagram

Riding Mower, Made in Japan

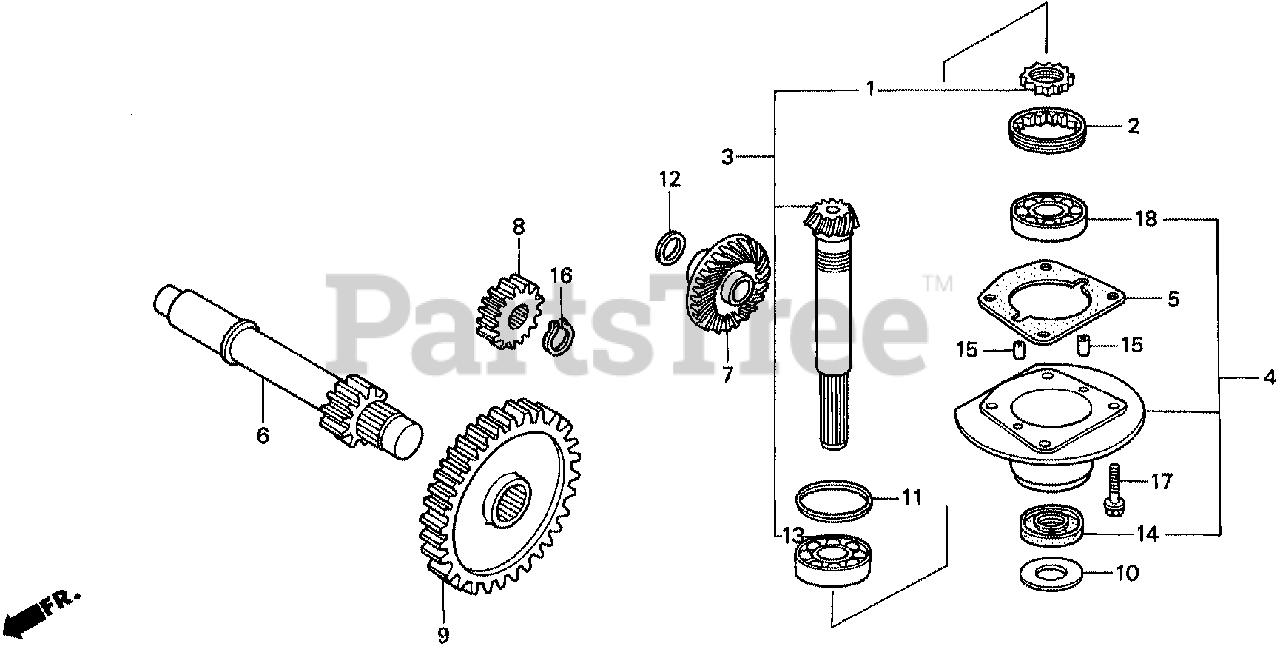

11H/13H INPUT SHAFT + COUNTERSHAFT Parts Diagram

  • Title

1

Honda 21212-750-000

NUT, LOCK (22MM)

$16.99

$

Usually ships in 3-6 days

0

2

Honda 21213-751-000

NUT, LOCK (48MM)

$27.99

$

Usually ships in 3-6 days

0

3

Honda 23110-VD6-000

SHAFT, INPUT

$189.99

$

Usually ships in 3-6 days

0

4

Honda 23115-VD6-000

HOLDER, INPUT SHAFT

$119.99

$

Usually ships in 3-6 days

0

5

Honda 23118-VD6-010

GASKET, INPUT SHAFT HOLDER

$6.99

$

Usually ships in 3-6 days

0

6

Honda 23221-VD6-000

COUNTERSHAFT

$152.99

$

Usually ships in 3-6 days

0

7

Honda 23323-VD6-000

GEAR, BEVEL

$185.99

$

Usually ships in 3-6 days

0

8

Honda 23405-VD6-000

GEAR, COUNTERSHAFT DRIVE (19T)

$51.99

$

Usually ships in 3-6 days

0

9

Honda 23457-VD6-000

GEAR, COUNTERSHAFT DRIVEN (47T)

$149.99

$

Usually ships in 3-6 days

0

10

Honda 90456-155-000

WASHER (17MM)

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90510-VD6-000

SHIM A, PINION GEAR (1.25)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90511-VD6-000

SHIM B, PINION GEAR (1.30)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90512-VD6-000

SHIM C, PINION GEAR (1.35)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90513-VD6-000

SHIM D, PINION GEAR (1.40)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90514-VD6-000

SHIM E, PINION GEAR (1.45)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90515-VD6-000

SHIM F, PINION GEAR (1.50)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90516-VD6-000

SHIM G, PINION GEAR

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90517-VD6-000

SHIM H, PINION GEAR (1.60)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90518-VD6-000

SHIM J, PINION GEAR (1.65)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

11

Honda 90519-VD6-000

SHIM K, PINION GEAR (1.70)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

12

Honda 90520-VD6-000

SHIM, BEVEL GEAR (1.45) (A)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90521-VD6-000

SHIM, BEVEL GEAR (1.50) (B)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90522-VD6-000

SHIM, BEVEL GEAR (1.55) (C)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90523-VD6-000

SHIM, BEVEL GEAR (1.60) (D)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90524-VD6-000

SHIM, BEVEL GEAR (1.65) (E)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90525-VD6-000

SHIM, BEVEL GEAR (1.70) (F)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90526-VD6-000

SHIM, BEVEL GEAR (1.75) (G)

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90527-VD6-000

SHIM, BEVEL GEAR (1.80) (H)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90528-VD6-000

SHIM, BEVEL GEAR (1.85) (J)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90529-VD6-000

SHIM, BEVEL GEAR (1.90) (K)

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

13

Honda 91003-751-701

BEARING, RADIAL BALL (60/22) (TMB) (NOT AVAILABLE)

$

$

Not available

14

Honda 91202-751-701

OIL SEAL (20X38X8)

$9.99

$

Usually ships in 3-6 days

0

15

Honda 94301-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 94510-15000

CIRCLIP (OUTER) (15MM)

$1.49

$

In Stock, Qty 9

0

17

Honda 95701-08025-08

BOLT, FLANGE (8X25)

$0.99

$

In Stock, only 2 left!

0

18

Honda 96100-62040-00

BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0
