H4518 H HSA/C (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-3000001 - MZAT-3999999) BATTERY Parts Diagram

Lawn Tractor, Made in Japan

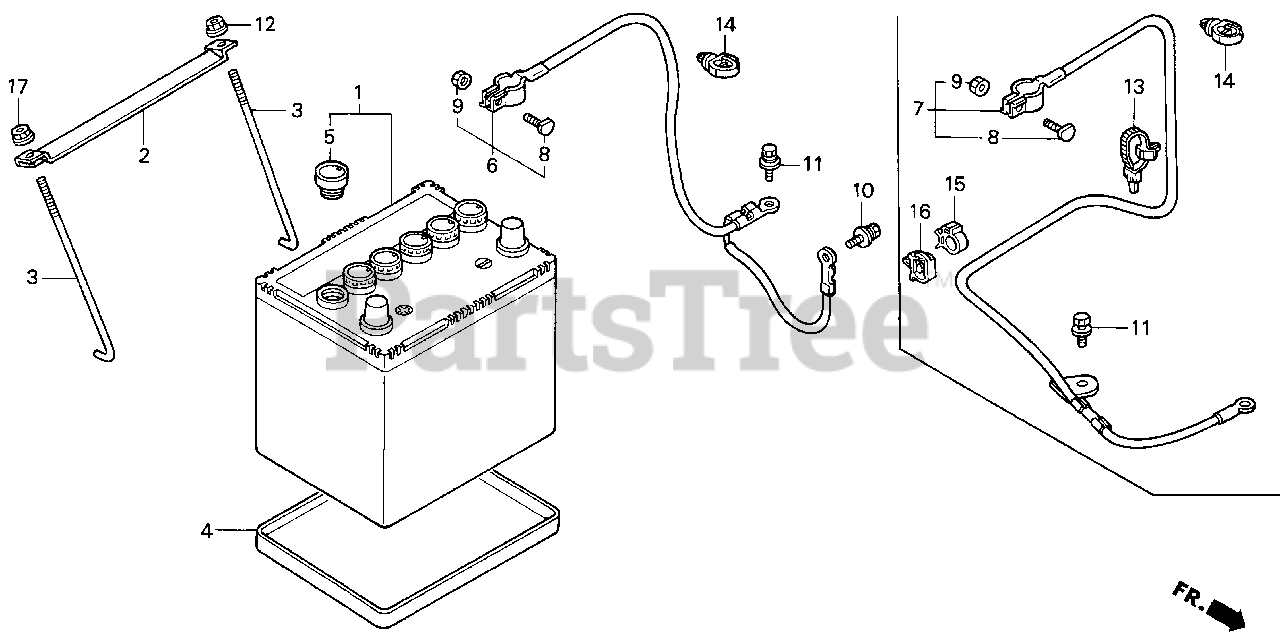

BATTERY Parts Diagram

  • Title

1

Honda 31500-750-013

SEE PART DETAILS - SUP; BATTERY ASSY. (32A19RT-S) (YUASA)
(Superseded to 31500-750-023)

$145.99

$

Usually ships in 3-6 days

0

2

Honda 31512-751-010

SEE PART DETAILS - PRI; PLATE, BATTERY SETTING

$20.99

$

In Stock, only 1 left!

0

3

Honda 31513-SA7-811

SEE PART DETAILS - SUP; BOLT, BATTERY SETTING (215MM)
(Superseded to 31513-SP0-010)

$10.99

$

Usually ships in 3-6 days

0

3

Honda 31513-SP0-010

SEE PART DETAILS - PRI; BOLT A, BATTERY SETTING

$10.99

$

Usually ships in 3-6 days

0

4

Honda 31523-ZA0-800

TRAY, BATTERY

$14.99

$

Usually ships in 3-6 days

0

5

Honda 31542-538-007

PLUG, VENT (YUASA)

$10.99

$

Usually ships in 3-6 days

0

6

Honda 32600-758-800

CABLE ASSY., GROUND

$

$

Not available

8

Honda 32601-SA5-003

SEE PART DETAILS - SUP; BOLT, BATTERY TERMINAL (SUMITOMO)

$11.99

$

Usually ships in 3-6 days

0

9

Honda 32602-SA5-003

NUT, BATTERY TERMINAL (SUMITOMO)

$7.49

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 13

0

11

Honda 90149-SE0-003

BOLT, GROUND (6X16) (SN)

$10.99

$

Usually ships in 3-6 days

0

12

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0

14

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0
