H4518 H HSA/C (MZAT) - Honda Lawn Tractor, Made in Japan (SN: MZAT-3000001 - MZAT-3999999) CYLINDER BLOCK (H4518H) Parts Diagram

Lawn Tractor, Made in Japan

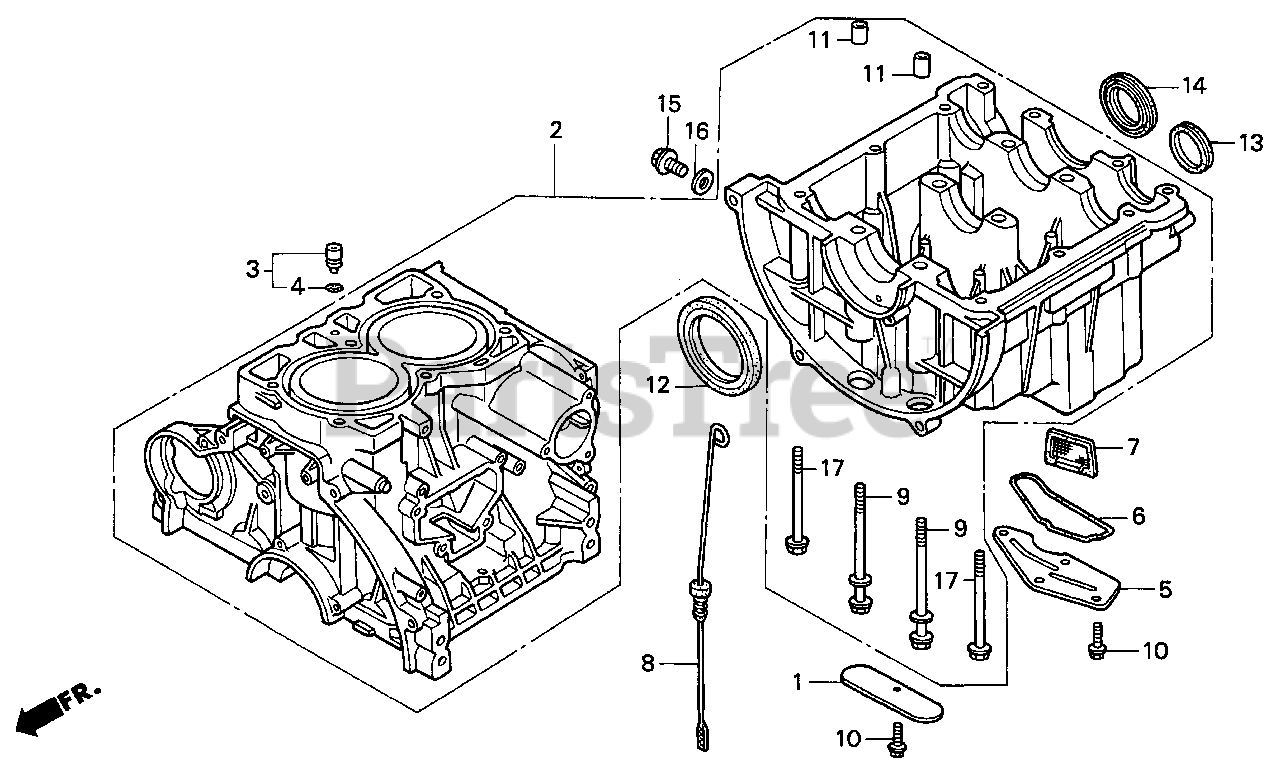

CYLINDER BLOCK (H4518H) Parts Diagram

  • Title

1

Honda 11313-ZG8-000

PLATE (LOWER)

$4.99

$

Usually ships in 3-6 days

0

2

Honda 120A0-ZG8-000

BLOCK ASSY., CYLINDER

$1920.99

$

Usually ships in 3-6 days

0

3

Honda 15140-PJ7-010

ORIFICE ASSY., OIL PASSAGE
(Superseded to 15140-ZG8-000)

$10.99

$

Usually ships in 3-6 days

0

4

Honda 15142-PE0-000

SEE PART DETAILS - PRI; O-RING (4.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

5

Honda 15334-ZG8-000

PLATE, OIL FILTER

$15.99

$

Usually ships in 3-6 days

0

6

Honda 15339-ZG8-003

O-RING, OIL PLATE

$5.49

$

In Stock, only 1 left!

0

7

Honda 15427-ZG8-000

SCREEN, OIL FILTER

$12.99

$

In Stock, only 1 left!

0

8

Honda 15655-ZG8-000

DIPSTICK, OIL

$16.99

$

Usually ships in 3-6 days

0

9

Honda 90007-PJ7-003

BOLT-WASHER (10X105)

$14.99

$

Usually ships in 3-6 days

0

10

Honda 90014-952-000

BOLT, FLANGE (6X14)

$2.99

$

In Stock, Qty 8

0

11

Honda 90715-PC6-000

PIN, DOWEL (13X20)

$7.49

$

Usually ships in 3-6 days

0

12

Honda 91202-ZG8-003

OIL SEAL (65X88X12)

$16.99

$

Usually ships in 3-6 days

0

13

Honda 91204-ZG8-003

PLUG, SEALING (42X7)

$8.49

$

Usually ships in 3-6 days

0

14

Honda 91213-ZG8-003

OIL SEAL (35X50X8)

$10.99

$

Usually ships in 3-6 days

0

15

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$4.99

$

In Stock, only 3 left!

0

16

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 95701-08085-08

BOLT, FLANGE (8X85)

$3.99

$

Usually ships in 3-6 days

0
