H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) COUNTERSHAFT Parts Diagram

Compact Tractor, Made in Japan

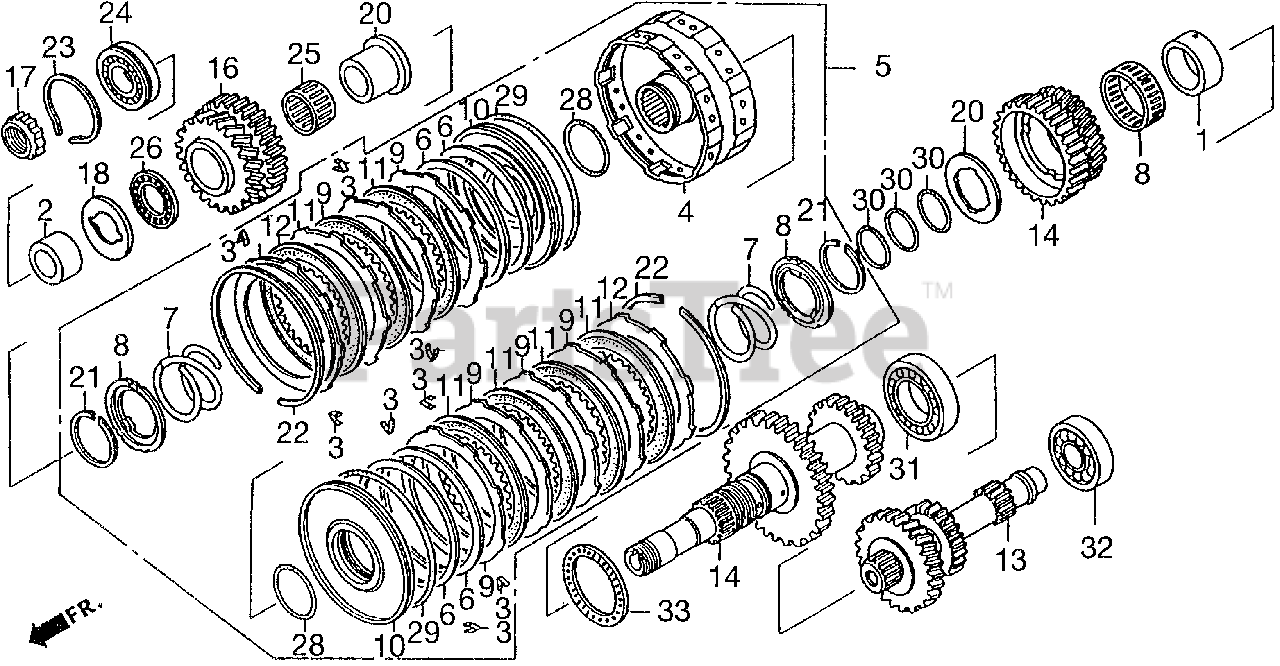

COUNTERSHAFT Parts Diagram

  • Title

1

Honda 17202-764-640

COLLAR, DISTANCE

$

$

Not available

2

Honda 22118-MC0-000

COLLAR (25MM) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 22405-759-610

SPRING, DISK SETTING

$

$

Not available

4

Honda 22475-759-610

GUIDE, SECOND & THIRD CLUTCH

$

$

Not available

5

Honda 22500-759-610

CLUTCH ASSY., SECOND & THIRD

$

$

Not available

6

Honda 22537-759-610

SPRING, CLUTCH DISK

$24.99

$

Usually ships in 3-6 days

0

7

Honda 22403-764-640

SPRING, CLUTCH RETURN

$

$

Not available

8

Honda 22542-PA9-000

SEAT, CLUTCH SPRING

$7.99

$

Usually ships in 3-6 days

0

9

Honda 22543-PJ4-000

PLATE, CLUTCH (106)

$

$

Not available

10

Honda 22543-759-610

PISTON, CLUTCH

$

$

Not available

11

Honda 22544-PN0-000

DISK, CLUTCH

$

$

Not available

12

Honda 22551-PA9-010

PLATE, CLUTCH END (2.3MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22552-PA9-010

PLATE, CLUTCH END (2.6MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22553-PA9-010

PLATE, CLUTCH END (2.9MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22554-PA9-010

PLATE, CLUTCH END (3.2MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22555-PA9-010

PLATE, CLUTCH END (3.5MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22561-PA9-010

PLATE, CLUTCH END (2.15MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22562-PA9-010

PLATE, CLUTCH END (2.45MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22563-PA9-010

PLATE, CLUTCH END (2.75MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22564-PA9-010

PLATE, CLUTCH END (3.05MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22565-PA9-010

PLATE, CLUTCH END (3.35MM)

$37.99

$

Usually ships in 3-6 days

0

12

Honda 22566-PA9-010

PLATE, CLUTCH END (3.65MM)

$37.99

$

Usually ships in 3-6 days

0

13

Honda 23141-764-640

SHAFT, AUXILIARY DRIVE

$

$

Not available

14

Honda 23220-764-640

COUNTERSHAFT

$

$

Not available

15

Honda 23432-764-640

GEAR, SECOND DRIVEN (38T-28T)

$

$

Not available

16

Honda 23433-764-640

GEAR, THIRD DRIVEN (38T-23T)

$

$

Not available

17

Honda 44332-752-000

NUT, LOCK (25MM)

$

$

Not available

18

Honda 90407-PC9-000

WASHER, THRUST (26X53X3)

$

$

Not available

19

Honda 90561-764-640

WASHER, THRUST (36.5X56X3.50)

$

$

Not available

19

Honda 90562-764-640

WASHER, THRUST (36.5X56X3.55)

$

$

Not available

19

Honda 90563-764-640

WASHER, THRUST (36.5X56X3.60)

$

$

Not available

19

Honda 90564-764-640

WASHER, THRUST (36.5X56X3.65)

$

$

Not available

19

Honda 90565-764-640

WASHER, THRUST (36.5X56X3.70)

$

$

Not available

19

Honda 90566-764-640

WASHER, THRUST (36.5X56X3.75)

$

$

Not available

19

Honda 90567-764-640

WASHER, THRUST (36.5X56X3.80)

$

$

Not available

19

Honda 90568-764-640

WASHER, THRUST (36.5X56X3.85)

$

$

Not available

20

Honda 90582-759-611

COLLAR, THIRD DRIVEN

$

$

Not available

21

Honda 90603-P24-A01

SEE PART DETAILS - SUP; CIRCLIP (OUTER) (40MM) (F.C.C.)

$

$

Not available

22

Honda 90605-PA9-000

RING, SNAP (114X1.8)

$22.99

$

Usually ships in 3-6 days

0

23

Honda 90652-759-000

RING, SNAP (52MM)

$

$

Not available

24

Honda 91002-300-008

SEE PART DETAILS - SUP; BEARING, SPECIAL BALL (6205) (NOT AVAILABLE)

$

$

Not available

25

Honda 91012-PN6-701

BEARING, NEEDLE (31X36X18.5)

$53.99

$

Usually ships in 3-6 days

0

26

Honda 91019-PA9-013

BEARING, THRUST NEEDLE (31X47X2)

$32.99

$

Usually ships in 3-6 days

0

27

Honda 91054-764-640

BEARING, NEEDLE (43X48X17)

$

$

Not available

28

Honda 91302-PA9-003

O-RING (39.8X2.2) (ARAI)

$6.99

$

Usually ships in 3-6 days

0

29

Honda 91303-PA9-004

O-RING (100X2.2) (NOK)

$12.99

$

Usually ships in 3-6 days

0

30

Honda 91307-PA9-003

O-RING (31.2X1.9) (ARAI)

$5.99

$

Usually ships in 3-6 days

0

31

Honda 96100-60070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6007)

$26.99

$

Usually ships in 3-6 days

0

32

Honda 96140-62040-00

BEARING, RADIAL BALL (6204U)

$36.99

$

Usually ships in 3-6 days

0

33

Honda 91007-PT2-003

BEARING, THRUST (WU)

$

$

Not available
