H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) INPUT SHAFT Parts Diagram

Compact Tractor, Made in Japan

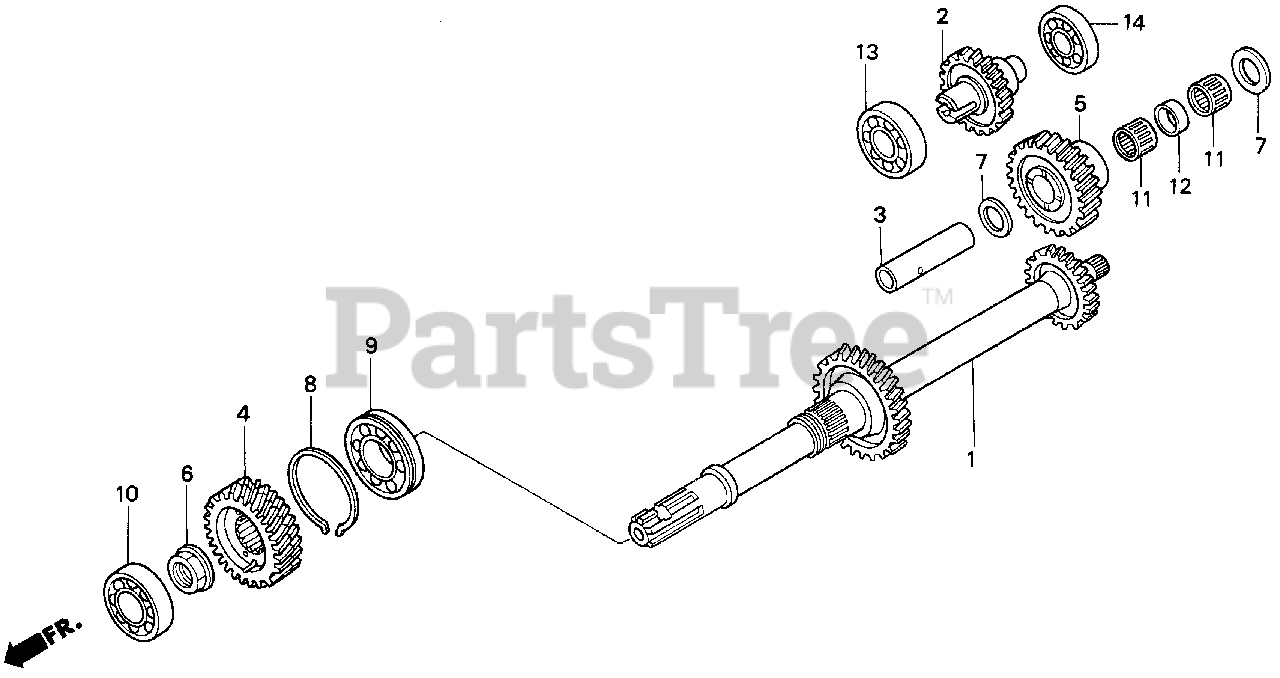

INPUT SHAFT Parts Diagram

  • Title

1

Honda 23110-764-640

SHAFT, INPUT

$

$

Not available

2

Honda 23240-759-000

SHAFT, PUMP DRIVE

$

$

Not available

3

Honda 23245-759-000

SHAFT, PUMP IDLE

$

$

Not available

4

Honda 23410-759-010

GEAR ASSY., PRIMARY

$

$

Not available

5

Honda 23531-759-000

GEAR, PUMP IDLE (31T)

$

$

Not available

6

Honda 90314-759-000

NUT, LOCK (25MM)

$

$

Not available

7

Honda 90401-MN1-670

WASHER, THRUST (17X22X0.75)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90651-759-000

RING, SNAP (58MM)

$

$

Not available

9

Honda 91002-MG9-008

BEARING, SPECIAL BALL (62/28)

$

$

Not available

10

Honda 91002-750-003

BEARING, RADIAL BALL (62/22)

$21.99

$

Usually ships in 3-6 days

0

11

Honda 91005-GB2-701

BEARING, NEEDLE (19X23X13)

$17.99

$

Usually ships in 3-6 days

0

12

Honda 91555-759-000

COLLAR, DISTANCE (20X23X12.7)

$

$

Not available

13

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$15.99

$

In Stock, only 2 left!

0

14

Honda 96120-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203)

$21.99

$

Usually ships in 3-6 days

0
