H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) MIDDLE P.T.O. GEAR Parts Diagram

Compact Tractor, Made in Japan

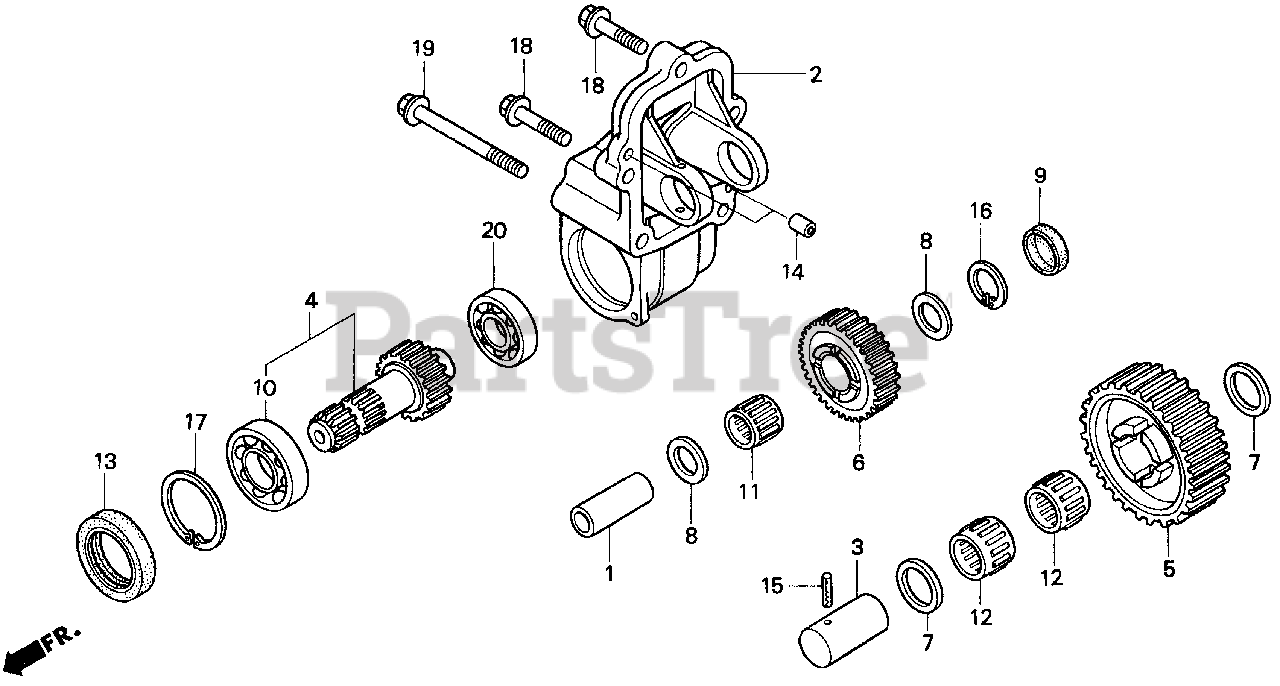

MIDDLE P.T.O. GEAR Parts Diagram

  • Title

1

Honda 13111-MT3-000

PIN, PISTON

$14.99

$

Usually ships in 3-6 days

0

2

Honda 21331-764-640

COVER, MIDDLE P.T.O.

$

$

Not available

3

Honda 23261-764-640

SHAFT, MIDDLE P.T.O. IDLE

$

$

Not available

4

Honda 23270-764-640

SHAFT, MIDDLE P.T.O.

$

$

Not available

5

Honda 23561-764-640

GEAR A, MIDDLE P.T.O. IDLE (34T)

$

$

Not available

6

Honda 23562-764-640

GEAR B, MIDDLE P.T.O. IDLE (23T)

$

$

Not available

7

Honda 90451-KG4-000

WASHER, THRUST (22X39X2)

$5.99

$

Usually ships in 3-6 days

0

8

Honda 90501-KAE-000

WASHER (18MM)

$

$

Not available

9

Honda 90851-764-641

PLUG, SEALING (19X5)

$

$

Not available

10

Honda 91002-HE0-003

BEARING, RADIAL BALL (S6205) (KOYO)

$22.99

$

Usually ships in 3-6 days

0

11

Honda 91059-764-640

BEARING, NEEDLE (18X25X22)

$

$

Not available

12

Honda 91061-764-640

BEARING, NEEDLE (22X29X16)

$16.99

$

Usually ships in 3-6 days

0

13

Honda 91251-764-641

OIL SEAL (25X52X8)

$

$

Not available

14

Honda 94303-08140

PIN C, DOWEL (8X14)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 94305-50362

PIN, SPRING (5X36)

$2.99

$

In Stock, Qty 7

0

16

Honda 94520-18000

CIRCLIP (INNER) (18MM)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94520-52000

CIRCLIP (INNER) (52MM)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 95701-10040-08

BOLT, FLANGE (10X40)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 95701-10085-08

BOLT, FLANGE (10X85)

$5.49

$

Usually ships in 3-6 days

0

20

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0
