H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) PARKING BRAKE LEVER Parts Diagram

Compact Tractor, Made in Japan

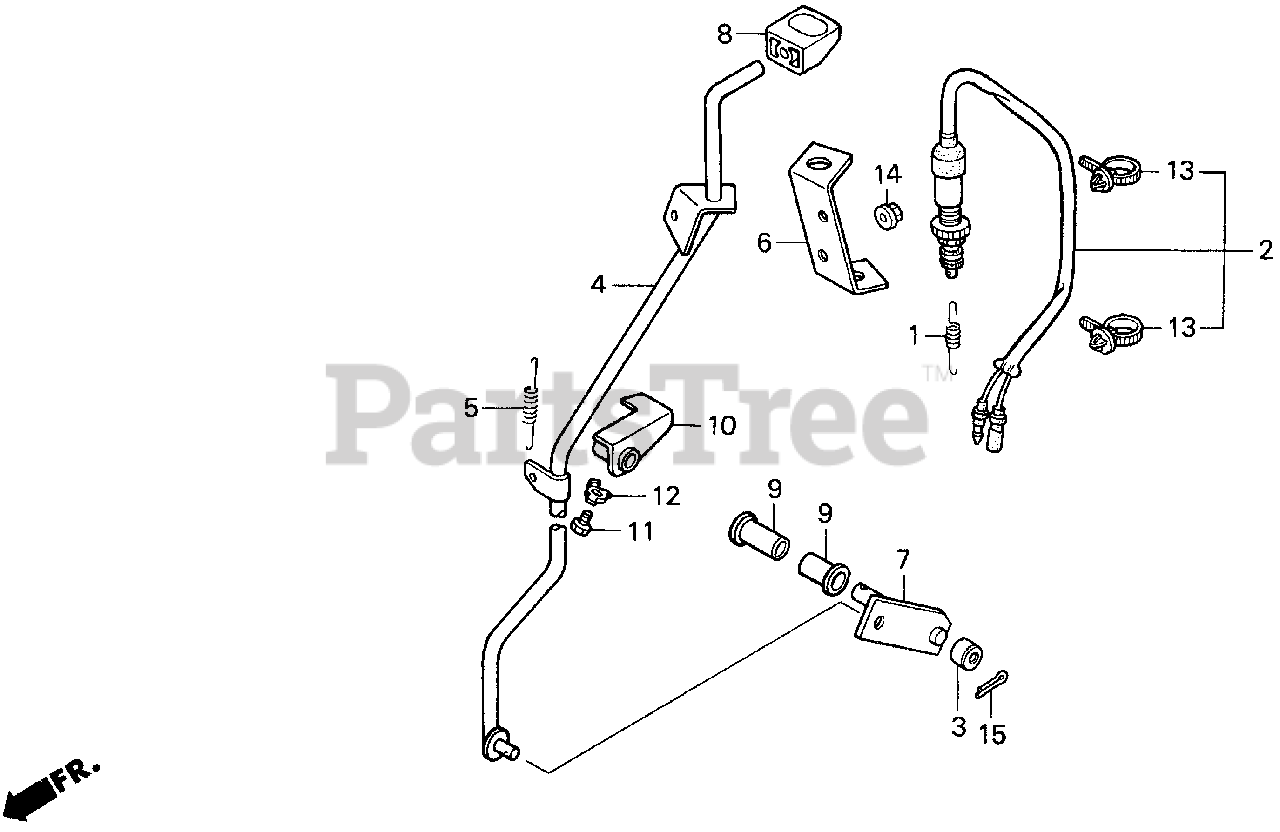

PARKING BRAKE LEVER Parts Diagram

  • Title

1

Honda 16575-ZA0-700

SPRING, CONTROL LEVER RETURN

$4.49

$

Usually ships in 3-6 days

0

2

Honda 35620-759-013

SWITCH ASSY., PARKING BRAKE

$24.99

$

Usually ships in 3-6 days

0

3

Honda 43532-GT4-000

COLLAR, PUSH ROD

$10.99

$

Usually ships in 3-6 days

0

4

Honda 47110-759-010

LEVER, PARKING BRAKE

$

$

Not available

5

Honda 47135-759-000

SPRING, PARKING BRAKE LEVER

$

$

Not available

6

Honda 47156-759-000

BRACKET, PARKING BRAKE LEVER

$

$

Not available

7

Honda 47161-759-000

ARM, PARKING BRAKE

$

$

Not available

8

Honda 47162-759-000

KNOB, PARKING BRAKE

$

$

Not available

9

Honda 47164-759-000

BUSH, PARKING BRAKE

$5.99

$

Usually ships in 3-6 days

0

10

Honda 47166-759-000

ARM, PARKING BRAKE STOPPER

$

$

Not available

11

Honda 90001-PA9-000

BOLT, HEX. (6MM)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 90433-639-000

WASHER, LOCK (6MM)

$6.49

$

Usually ships in 3-6 days

0

13

Honda 91551-SF4-003

BAND, WIRE HARNESS (110MM) (BROWN)

$9.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 12

0

15

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, COTTER (2.5MM)

$1.49

$

Usually ships in 3-6 days

0
