H6522 A4/A (TZAD) - Honda Compact Tractor, Made in Japan (SN: TZAD-1001870 - TZAD-1099999) REAR WIRE HARNESS Parts Diagram

Compact Tractor, Made in Japan

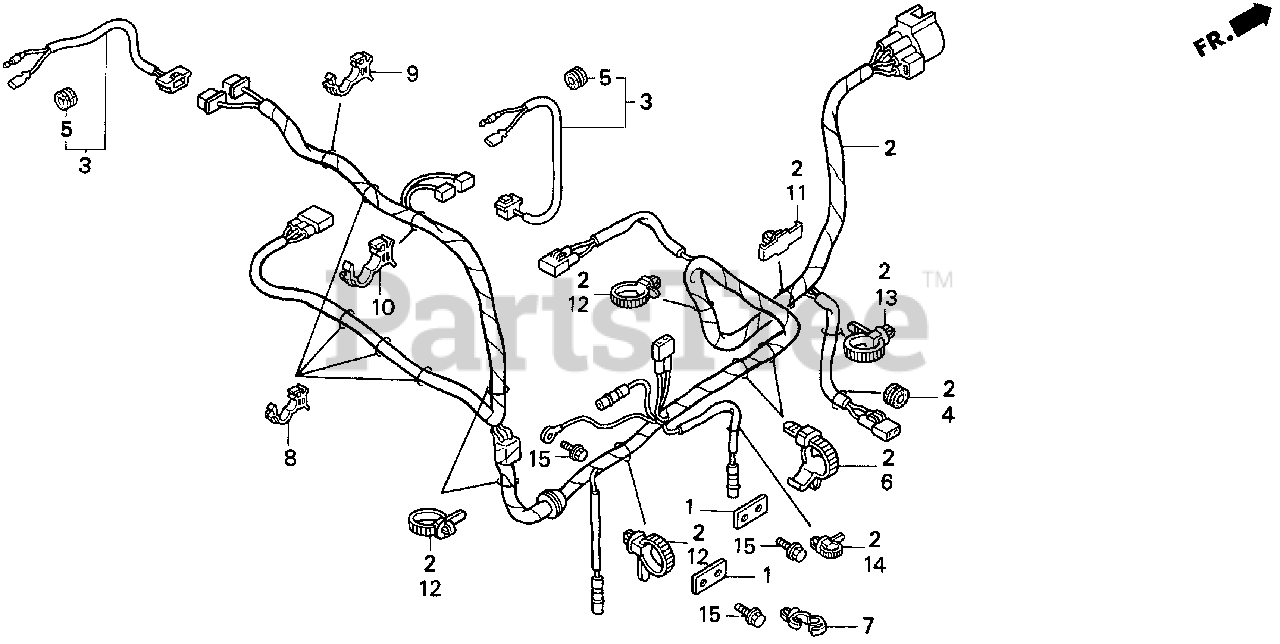

REAR WIRE HARNESS Parts Diagram

  • Title

1

Honda 32103-759-000

BRACKET, WIRE HARNESS CLIP

$3.99

$

Usually ships in 3-6 days

0

2

Honda 32120-764-640

WIRE HARNESS ASSY., RR.

$

$

Not available

3

Honda 32151-764-640

SUB-WIRE, ROPS.

$

$

Not available

4

Honda 61315-958-680

RUBBER, HEADLIGHT MOUNTING

$4.49

$

Usually ships in 3-6 days

0

5

Honda 80219-HC4-000

RUBBER, TAILLIGHT MOUNTING

$3.99

$

Usually ships in 3-6 days

0

6

Honda 90649-SC2-003

BAND, WIRE HARNESS (WHITE)

$8.49

$

Usually ships in 3-6 days

0

7

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 90690-GHB-641

CLIP, CABLE (10MM)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90690-GHB-651

CLIP, CABLE (15MM)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90690-GHB-671

CLIP, CABLE (25MM)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 91507-693-003

CLIP, WIRE HARNESS (BLACK)(HARNESS TAPING)

$9.49

$

Usually ships in 3-6 days

0

12

Honda 91550-SE0-003

CLIP, WIRE HARNESS (GRAY)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 91551-SF4-003

BAND, WIRE HARNESS (110MM) (BROWN)

$9.49

$

Usually ships in 3-6 days

0

14

Honda 91567-SE0-003

BAND, WIRE HARNESS (94MM) (WHITE)

$11.99

$

Usually ships in 3-6 days

0

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0
