HA4118 H38A (MZCH) - Honda Lawn Tractor, Made in USA (SN: MZCH-6000001 - MZCH-9999999) MUFFLER Parts Diagram

Lawn Tractor, Made in USA

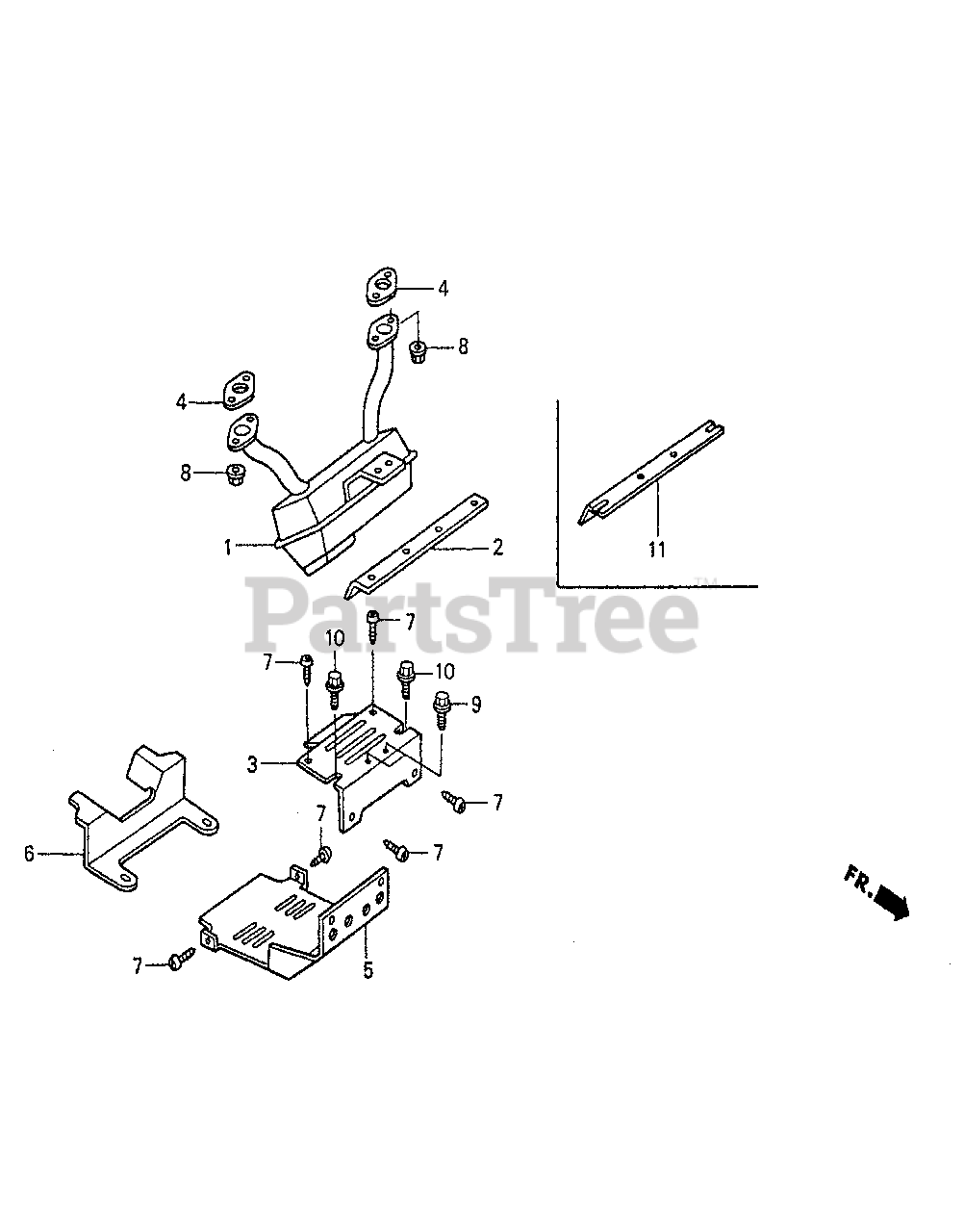

MUFFLER Parts Diagram

  • Title

1

Honda 18310-V09-A01

MUFFLER

$133.99

$

Usually ships in 3-6 days

0

2

Honda 18318-V09-A01

PLATE, MUFFLER SUPPORT

Note: Use up to Frame SN 6001209.

$

$

Not available

3

Honda 18321-V09-A01

PROTECTOR, MUFFLER (UPPER)

$59.99

$

Usually ships in 3-6 days

0

4

Honda 18333-ZJ1-000

GASKET, EX. PIPE

$17.99

$

Usually ships in 3-6 days

0

5

Honda 18438-V09-A01

GUARD, MUFFLER PROTECTOR

$64.99

$

Usually ships in 3-6 days

0

6

Honda 18451-V09-A01

GUARD, EX. PIPE

$21.99

$

Usually ships in 3-6 days

0

7

Honda 54010-V09-A01

SEE PART DETAILS - PRI; HEIGHT ADJUST SET

$

$

Not available

8

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 90137-V09-A01

BOLT, FLANGE (8X25)

Note: Use up to Frame SN 6001209.

$

$

Currently unavailable

9

Honda 90167-V09-A01

SCREW, SELF-TAPPING (8MM)

Note: Use from Frame SN 6001210.

$

$

Currently unavailable

10

Honda 90102-V09-A01

BOLT, FLANGE (8X16) (19M7867)

Note: Use from Frame SN 6001210.

$

$

Currently unavailable

10

Honda 90137-V09-A01

BOLT, FLANGE (8X25)

Note: Use up to Frame SN 6001209.

$

$

Currently unavailable

11

Honda 18318-V09-A02

PLATE, MUFFLER SUPPORT (NOT AVAILABLE)

Note: Use from Frame SN 6001210.

$

$

Currently unavailable
