HF 1748 (55AF3D4V150) - Cub Cadet Walk-Behind Mower, Kawasaki Kawasaki Engine Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

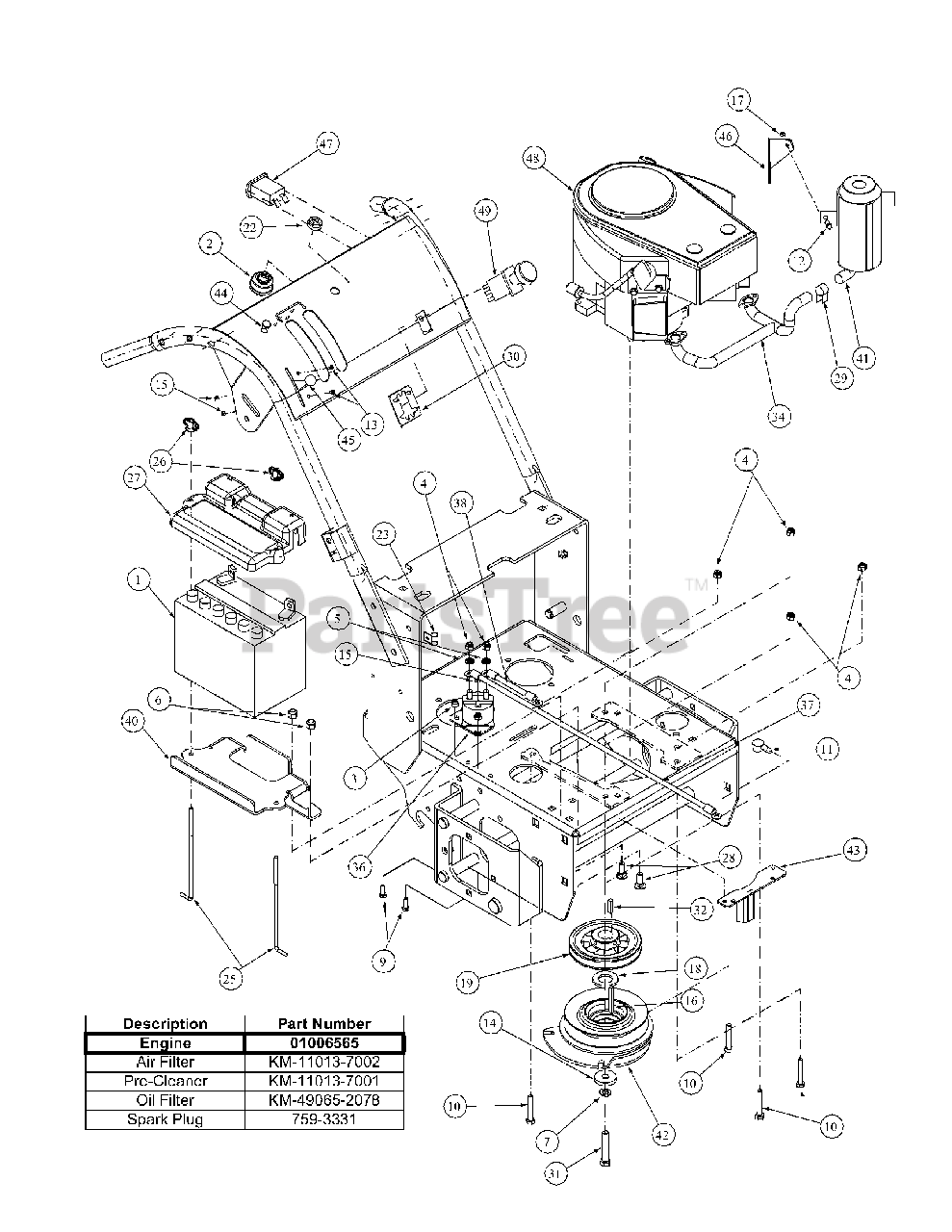

Kawasaki Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 925-1707D

Battery 12V

$

$

Not available

2

Cub Cadet 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 12

0

3

Cub Cadet 00012152

Lock Nut Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available

6

Cub Cadet 712-04065

Nylock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

9

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 00013258

Rubber Boot, 1" OD

$9.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 00013669

Screw, Hex Washer w/slot, 10-32x1/2

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

16

Cub Cadet 00021517

Key Stick, 1/4 x 1/4 x 2

$8.99

$

In Stock, only 1 left!

0

17

Cub Cadet 00022547

Lock Nut, 5/16-18

$

$

Not available

18

Cub Cadet 00023822

Washer
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 17

0

19

Cub Cadet 00023886

Sheave, 1" Bore with 2 Set Screws

$

$

Not available

20

Cub Cadet 00023887

Hydro Pump Drive Belt

$51.99

$

In Stock, only 1 left!

0

22

Cub Cadet 00032097

Nut w/cap 5/8-32
(Superseded to 00032097P)

$

$

Not available

23

Cub Cadet 00060807

Support Clamp 3/8 OD

$

$

Not available

24

Cub Cadet 00095784

Cable Battery, 10-1/4"

$

$

Not available

25

Cub Cadet 911-0222A

Hold Down Rod

$11.99

$

In Stock, only 1 left!

0

26

Cub Cadet 912-0397

Wing Nut w/Belle Washer, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 01000204

Battery Cover

$11.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 9

0

29

Cub Cadet 01000983

Muffler Clamp Assembly

Note: NLA

$

$

Not available

30

Cub Cadet 783-0462

Retainer Clip

$7.99

$

In Stock, only 2 left!

0

31

Cub Cadet 01001082

Hex Cap Screw, 7/16-20, 2.00

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01001393

Keystick, 1/4 x 1/4 x 1

$

$

Not available

33

Cub Cadet 01001811

Harness Hourmeter
(Superseded to 929-04195)

$8.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 01001993

Manifold

$

$

Not available

35

Cub Cadet 01002142

Harness Kohler

$

$

Not available

36

Cub Cadet 925-3001

Magnetic Solenoid Switch

$58.99

$

In Stock, Qty 9

0

37

Cub Cadet 01002252

24" Red Battery Cable

$38.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 01002253

5" Red Battery Cable

$

$

Not available

39

Cub Cadet 01002433

Harness Adapter Kawasaki

$

$

Not available

40

Cub Cadet 01002637-0637

Battery Bracket

$

$

Not available

41

Cub Cadet KM-49070-6001

Muffler, Kawasaki KM-49070-7002

$147.99

$

Usually ships in 2-5 days

0

42

Cub Cadet 01003479P

Electric Clutch

$

$

Not available

43

Cub Cadet 01003485

Retainer Clutch Bracket Assembly

$

$

Not available

44

Cub Cadet 02003479P

Cable Choke

$42.99

$

In Stock, only 1 left!

0

45

Cub Cadet 01004051P

Control Throttle w/Detent

$

$

Not available

46

Cub Cadet 01000192

Muffler Bracket

$

$

Not available

47

Cub Cadet 925-04893

Hour Meter
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 01006565

17 HP Kawasaki Engine

Note: NLA

$

$

Not available

49

Cub Cadet 01002111

Blade Clutch Switch
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7002

Air Filter

$21.99

$

In Stock, Qty 16

0

Cub Cadet KM-11013-7033

Pre-Cleaner

$5.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3331

Spark Plug

$3.99

$

In Stock, Qty 5

0
