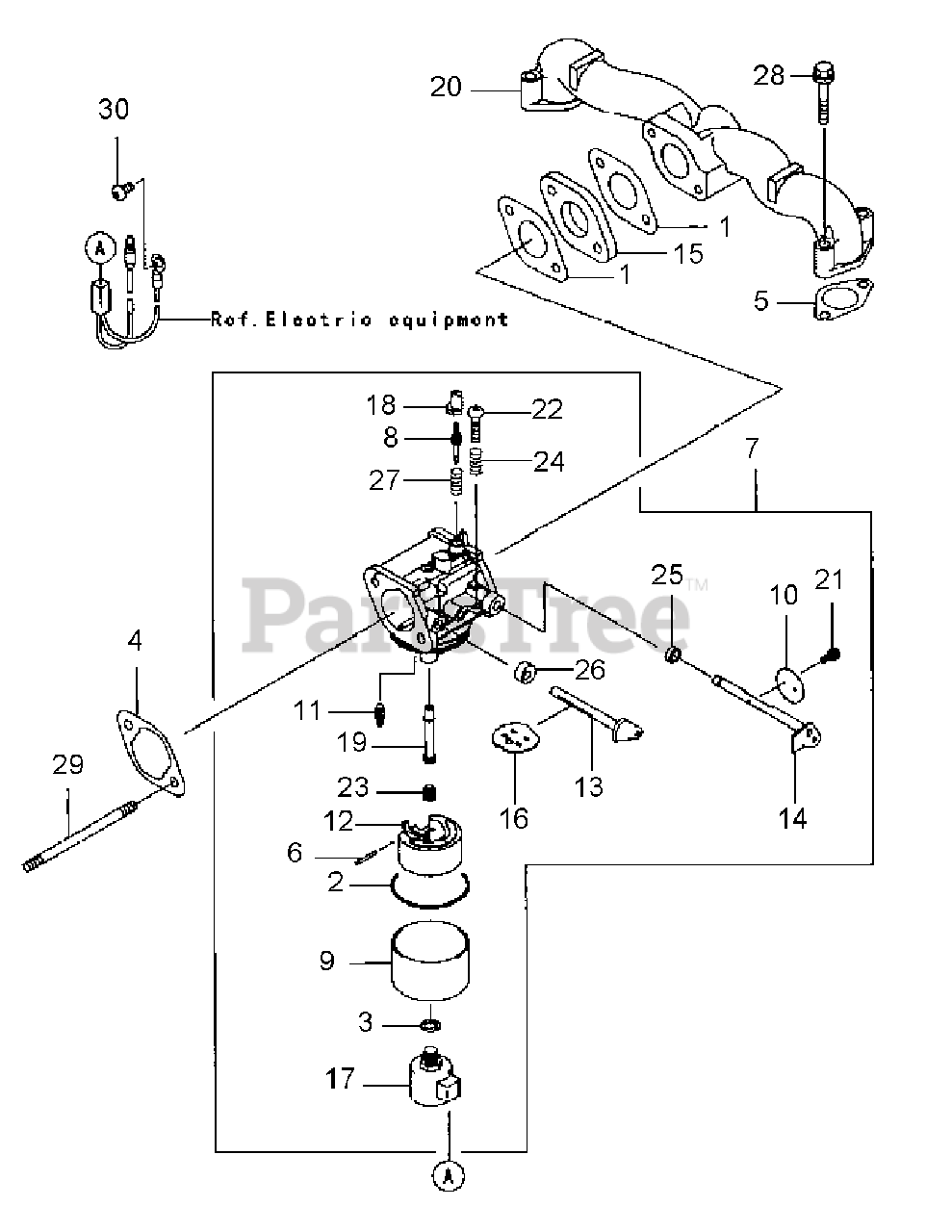

HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki FH541V-AS25 Carburetor Parts Diagram

Walk-Behind Mower, Kawasaki

FH541V-AS25 Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11061-7004

INSULATOR GASKET

$2.49

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11061-7009

CHAMBER GASKET

$2.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11061-7010

GASKET

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11061-7018

AIR CLEANER GASKET

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-11061-7019

GASKET

$2.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-13107-7018

SHAFT

$4.49

$

In Stock, Qty 7

0

7

Cub Cadet KM-15004-7056

CARBURETOR ASSY.

$361.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-16014-7007

PILOT AIR SCREW

$14.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-16020-7003

FLOAT BOWL

$14.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-16025-7006

THROTTLE VALVE

$17.99

$

In Stock, Qty 5

0

11

Cub Cadet KM-16030-7003

FLOAT VALVE

$20.99

$

In Stock, only 2 left!

0

12

Cub Cadet KM-16031-7002

FLOAT

$28.99

$

In Stock, Qty 7

0

13

Cub Cadet KM-16041-7016

CHOKE SHAFT

$15.99

$

In Stock, Qty 5

0

14

Cub Cadet KM-16041-7018

THROTTLE SHAFT

$22.99

$

In Stock, Qty 5

0

15

Cub Cadet KM-16073-7007

INSULATOR
(Superseded to KM-16073-0876)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-16186-7004

CHOKE VALVE ASSY.

$13.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-21188-7002

SOLENOID

$171.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-39076-7001

LIMITER

$8.49

$

In Stock, only 4 left!

0

19

Cub Cadet KM-49121-7010

MAIN NOZZLE

$34.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KM-59076-7017

INTAKE MANIFOLD

$

$

Not available

21

Cub Cadet KM-92009-2083

SCREW

$2.49

$

In Stock, Qty 11

0

22

Cub Cadet KM-92009-2349

SCREW

$1.49

$

In Stock, Qty 5

0

23

Cub Cadet KM-92063-7065

MAIN JET #112

$12.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KM-92081-2234

SPRING

$4.49

$

In Stock, Qty 5

0

25

Cub Cadet KM-92093-2100

SEAL

$3.49

$

In Stock, Qty 14

0

26

Cub Cadet KM-92093-7003

SEAL

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet KM-92145-7015

SPRING

$2.49

$

In Stock, Qty 10

0

28

Cub Cadet KM-130G0635

FLANGED BOLT
(Superseded to KM-130BA0635)

$1.49

$

In Stock, Qty 6

0

29

Cub Cadet KM-172BA0690

STUD BOLT

$2.99

$

In Stock, only 2 left!

0

30

Cub Cadet KM-214B0510

PAN SCREW

$

$

Not available
