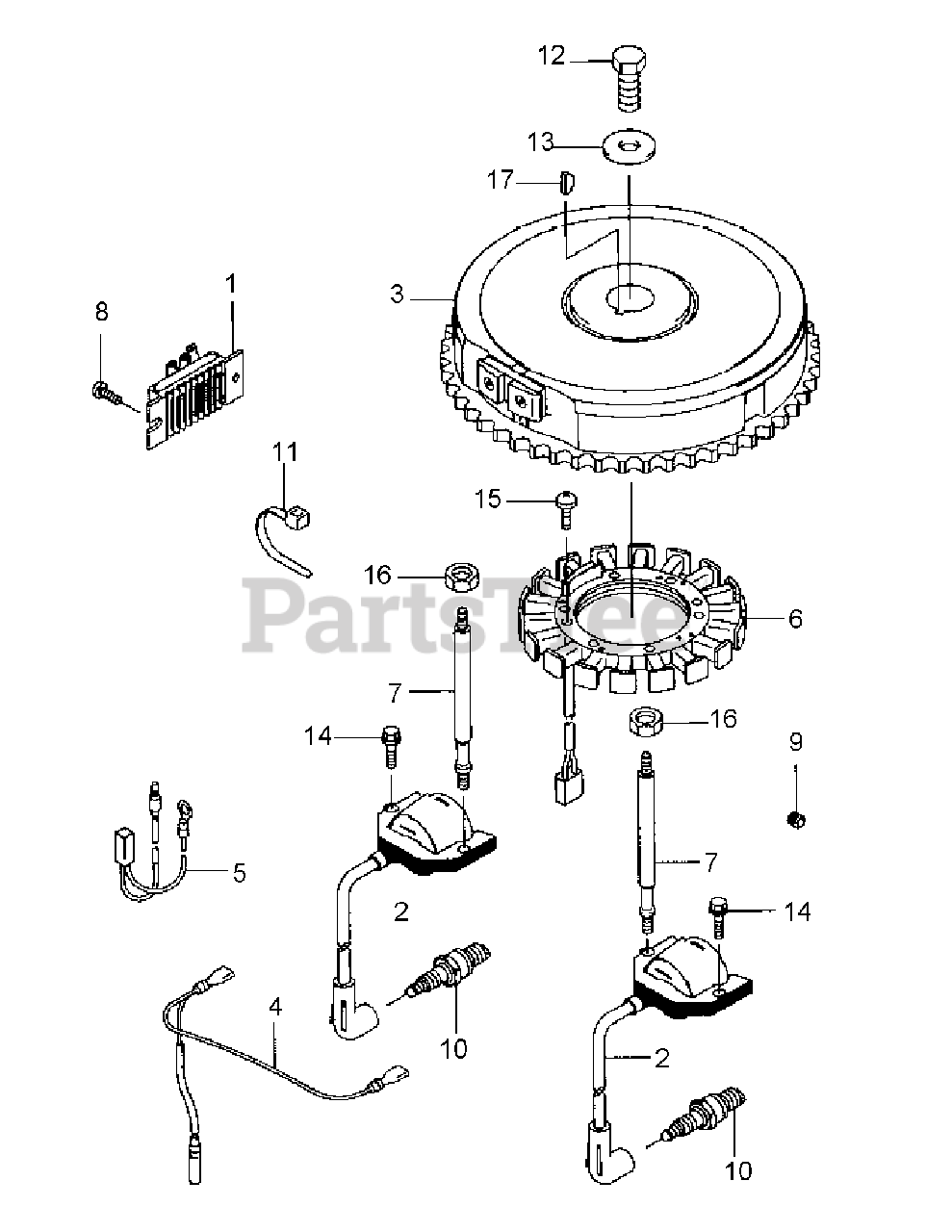

HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki FH541V-AS25 Electric Equipment Parts Diagram

Walk-Behind Mower, Kawasaki

FH541V-AS25 Electric Equipment Parts Diagram

  • Title

1

Cub Cadet KM-21066-7011

VOLTAGE REGULATOR

$77.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-21171-7034

IGNITION COIL ASSY.

$81.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-21194-7007

FLYWHEEL

$190.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-26030-7001

HARNESS

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-26031-7002

HARNESS

$

$

Not available

6

Cub Cadet KM-59031-7014

CHARGING COIL
(Superseded to KM-59031-7009)

$128.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-92004-7009

STUD
(Superseded to KM-92004-7026)

$4.99

$

In Stock, Qty 16

0

8

Cub Cadet KM-92009-2308

SCREW

$0.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

10

Cub Cadet TC-611049

SPARK PLUG

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

12

Cub Cadet KM-92154-7003

BOLT, 12x30

$4.99

$

In Stock, Qty 9

0

13

Cub Cadet KM-92200-7002

WASHER

$3.49

$

In Stock, only 4 left!

0

14

Cub Cadet KM-130CA0620

FLANGED BOLT

$1.49

$

In Stock, Qty 6

0

15

Cub Cadet KM-224B0520

PAN SCREW
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 16

0

16

Cub Cadet KM-311BA0600

HEX NUT

$2.49

$

In Stock, Qty 7

0

17

Cub Cadet KM-510A5100

WOODRUFF KEY

$3.49

$

In Stock, Qty 9

0
