HFF 1748 (55AG5D4V750) - Cub Cadet Walk-Behind Mower, Kawasaki Frame Assembly Parts Diagram

Walk-Behind Mower, Kawasaki

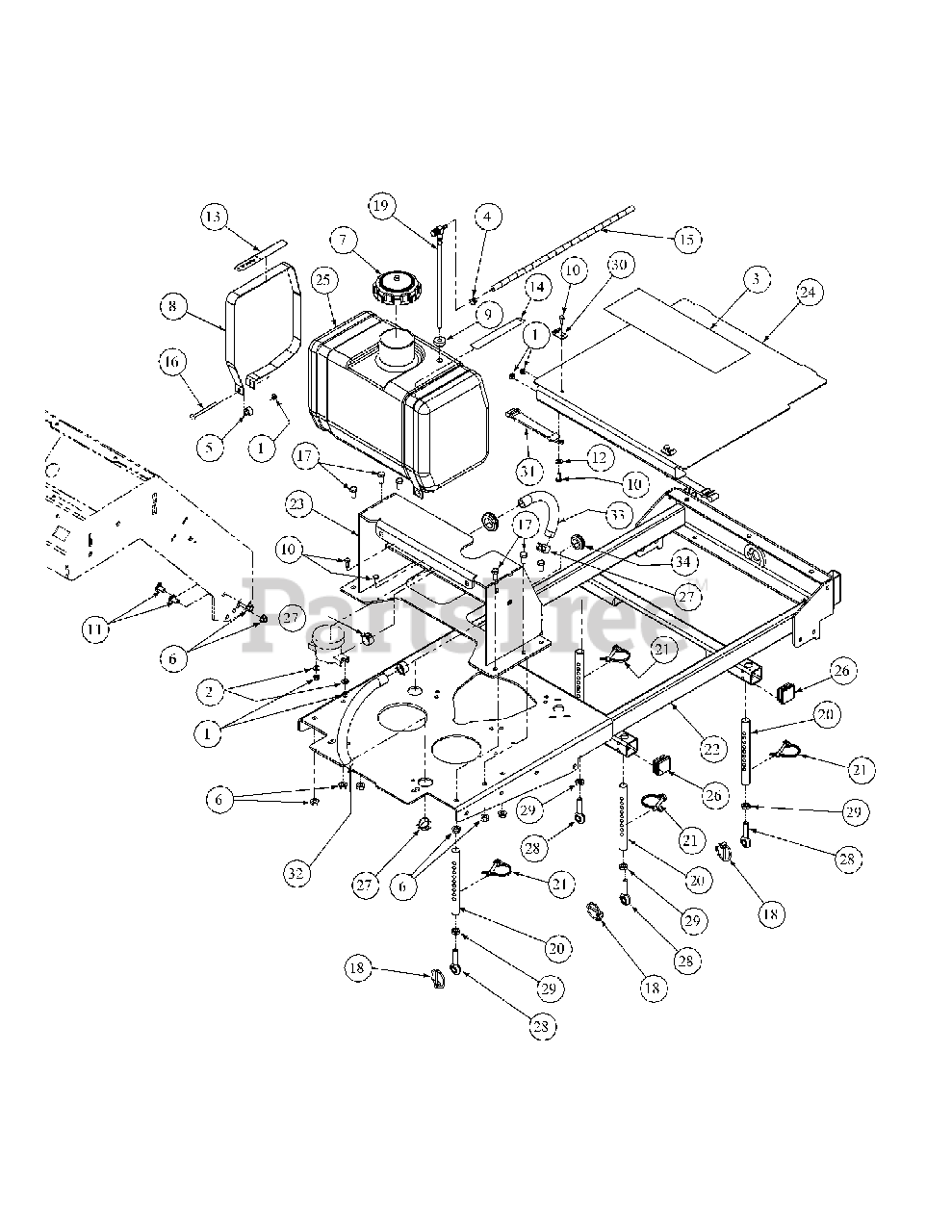

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00012152

Nut, 1/4-20, Nylon Insert

$3.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00012154

Washer, 1/4 Zinc
(Superseded to 936-3020)

$

$

Not available

3

Cub Cadet 01006789

Decal

$28.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00012235

Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 00021941

Spacer, Drive Wheel

$

$

Not available

6

Cub Cadet 00022560

Nut, 3/8-16, Hex Flange Lock
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 951-3124E

Fuel Cap

$33.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01001023

Fuel Tank Strap

$52.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02002253

Fuel Tank Grommet

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0463

Washer, 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 01001036

Label, Warning Turn Off Engine

$

$

Not available

14

Cub Cadet 01001038

Label, Fuel Valve Info

$

$

Not available

15

Cub Cadet n/a

Fuel Hose, 18" Long

Note: (purchase locally)

$

$

Currently unavailable

16

Cub Cadet 01002509

Carriage Bolt, 1/4-20 x 3.00

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .750

$3.99

$

In Stock, Qty 17

0

18

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01007425

Fitting, Fuel Pickup
(Superseded to 751-12478)

$48.99

$

In Stock, only 3 left!

0

20

Cub Cadet 01007668

Rod End, 3/4 Dia.

$

$

Not available

21

Cub Cadet 01007669

Pin, 1/4" Lock Wire

$

$

Not available

22

Cub Cadet 01008715

Frame Weldment

$

$

Not available

23

Cub Cadet 01008733

Handle Mount Weldment

$

$

Not available

24

Cub Cadet 01008743

Deck Belt Cover, Black

$

$

Not available

24

Cub Cadet 01008750

Deck Belt Cover, Yellow

$

$

Not available

25

Cub Cadet 01008857

Fuel Tank

$

$

Not available

26

Cub Cadet 01008865

Square Cap, 1.50"

$

$

Not available

27

Cub Cadet 01009137

Hose Clamp, 7/8"

$

$

Not available

28

Cub Cadet 01009388

Male Rod End

$

$

Not available

29

Cub Cadet 01009389

Nut, 7/16-20 Hex Jam

$

$

Not available

30

Cub Cadet 01009468

Hook Retainer Bracket

$

$

Not available

31

Cub Cadet 01009469

Strap Retainer Assembly

$

$

Not available

32

Cub Cadet 01009470

Right Hand Tube Tank, 12"

$

$

Not available

33

Cub Cadet 01009471

Left Hand Tube Tank, 10"

$

$

Not available

34

Cub Cadet 01004040

Rubber Grommet
(Superseded to 735-04285)

$3.99

$

Usually ships in 3-6 days

0
