HH 150 A (UT-65045-A) - Homelite Portable Space Heater Heater Exploded View Parts Diagram

Portable Space Heater

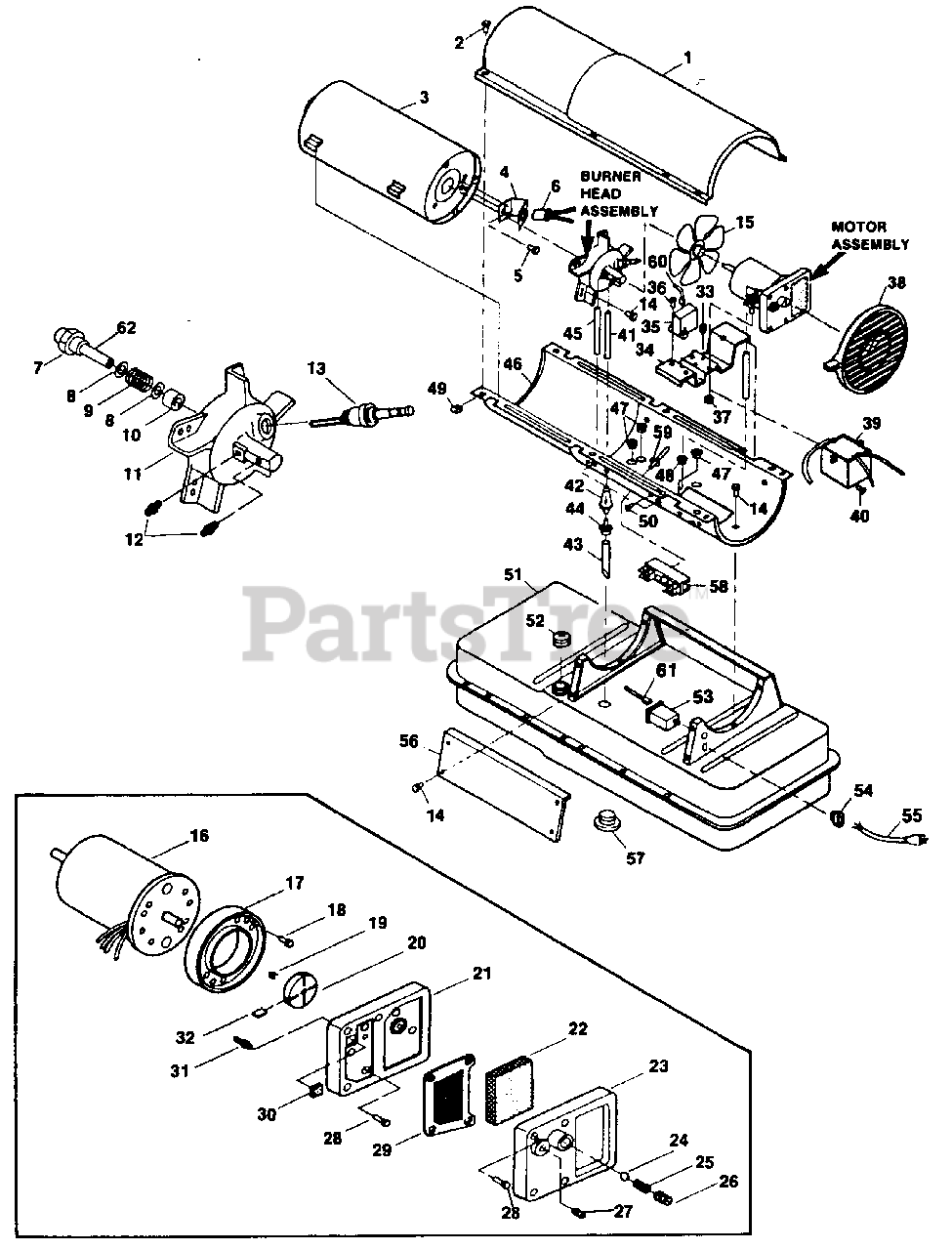

Heater Exploded View Parts Diagram

  • Title

1

Homelite 0332695

SHELL- Upper

$

$

Currently unavailable

2

Homelite 0052916

SCREW- (#10-16 x 1/2")

$4.49

$

Usually ships in 3-7 days

0

3

Homelite A0332645

COMBUSTION CHAMBER KIT

$

$

Currently unavailable

4

Homelite 0332680

BRACKET- Photocell

$

$

Currently unavailable

5

Homelite 0052907

SCREW- (#6-32 x 3/8")

$

$

Currently unavailable

6

Homelite A0332657

PHOTOCELL

$

$

Currently unavailable

7

Homelite A04240

NOZZLE

$

$

Currently unavailable

8

Homelite 0053102

NOZZLE WASHER (5")

$

$

Currently unavailable

9

Homelite 0053103

SPRING- Nozzle (5")

$

$

Currently unavailable

10

Homelite 0053130

SLEEVE- Nozzle (5")

$

$

Currently unavailable

11

Homelite 0053120

BODY- Burner head

$

$

Currently unavailable

12

Homelite 0053119

FITTING- Barb
(Superseded to PT8357)

$

$

Not available

13

Homelite 0332697

SPARK PLUG
(Superseded to TY4589)

$33.99

$

Usually ships in 3-7 days

0

14

Homelite 0052911

SCREW- Hex (#10-16 x 1/2")

$

$

Currently unavailable

15

Homelite 0332691

FAN

$

$

Currently unavailable

16

Homelite 0332675

MOTOR (Split Phase)
(Superseded to PT16019)

$

$

Not available

17

Homelite 0052953

BODY- Pump (35")

$

$

Currently unavailable

18

Homelite 0052901

SCREW- (#10-32 x 1/2")

$

$

Currently unavailable

19

Homelite 0052920

INSERT- Rotor (10")

$

$

Currently unavailable

20

Homelite 0052921

ROTOR- Pump (8")

$

$

Not available

21

Homelite 0053117

COVER- Pump end (8")

$

$

Not available

22

Homelite 0053106

FILTER- Intake (10")
(Superseded to TY4071)

$

$

Currently unavailable

23

Homelite 0053110

COVER- Filter end (5")

$

$

Not available

24

Homelite 0052948

BALL- Steel (1/4" dia)

$

$

Not available

25

Homelite 0052909

SPRING- Relief

$

$

Not available

26

Homelite 0052924

SCREW- Adjusting

$

$

Not available

27

Homelite 0052922

PLUG

$

$

Not available

28

Homelite 0052915

SCREW- (#10-32 x 1")

$4.49

$

Usually ships in 3-7 days

0

29

Homelite 0053107

FILTER- Output (10")
(Superseded to TY4066)

$

$

Not available

30

Homelite 0053105

FILTER- Lint
(Superseded to TY4077)

$

$

Not available

31

Homelite 0053119

FITTING- Barb
(Superseded to PT8357)

$

$

Not available

32

Homelite 0052947

BLADE- (20")

$

$

Currently unavailable

33

Homelite 0052938

BUMPER- Rubber

$

$

Currently unavailable

34

Homelite 0108612

BRACKET- Motor mtg.

$

$

Currently unavailable

35

Homelite 0053133

RELAY- Solid State

$

$

Currently unavailable

36

Homelite 0108645

SCREW (#8-15 x 1/2")

$

$

Currently unavailable

37

Homelite 0052949

NUT- Hex (1/4-20)

$

$

Currently unavailable

38

Homelite 0053124

GUARD- Fan
(Superseded to PT14711)

$

$

Not available

39

Homelite A0332663

IGNITOR KIT
(Superseded to PT19238)

$

$

Currently unavailable

40

Homelite 0052912

SCREW (#10-16 x 3/4")

$

$

Currently unavailable

41

Homelite 0332692

LINE- Fuel

$

$

Not available

42

Homelite 0053126

FILTER- Fuel (2")
(Superseded to PT16024)

$

$

Not available

43

Homelite 0332693

TUBE- Fuel line

$

$

Currently unavailable

44

Homelite A0053235

BUSHING- Rubber

$

$

Currently unavailable

45

Homelite 0053217

AIR LINE TUBE

$

$

Currently unavailable

46

Homelite 0332676

SHELL- Lower

$

$

Currently unavailable

47

Homelite 0053004

BUSHING

$

$

Currently unavailable

48

Homelite 0052937

BUSHING

$

$

Currently unavailable

49

Homelite 0052914

NUT- Tinnerman

$

$

Not available

50

Homelite 0052917

SCREW- (#8-18 x 1/4")

$

$

Currently unavailable

51

Homelite 0332694

TANK- Fuel

$

$

Currently unavailable

52

Homelite 0052958

CAP- Fuel (Incl. gasket)

$

$

Currently unavailable

53

Homelite 0332666

SAFETY CONTROL

$

$

Not available

54

Homelite 0052913

BUSHING- Strain relief

$

$

Currently unavailable

55

Homelite 0332677

POWER CORD

$

$

Currently unavailable

56

Homelite 0053123

COVER- Side

$

$

Currently unavailable

57

Homelite 0053215

PLUG- Drain (Inc. "O" ring)

$

$

Currently unavailable

58

Homelite 0332678

BOARD- Terminal

$

$

Currently unavailable

59

Homelite 0332638

RIVET (3/16")

$

$

Currently unavailable

60

Homelite A0332679

WIRING ASSEMBLY (Red, 14 1/2")

$

$

Currently unavailable

61

Homelite A0332664

WIRING ASSEMBLY (Red, 6")

$

$

Currently unavailable

62

Homelite 0053130

SLEEVE

$

$

Currently unavailable

Homelite 0053112

WHEELS

$

$

Currently unavailable

Homelite 0053106

AXLE
(Superseded to TY4071)

$

$

Currently unavailable

Homelite 0053105

FRAME - Wheel support
(Superseded to TY4077)

$

$

Not available

Homelite 0053101

HANDLE- Front

$

$

Currently unavailable

Homelite 0053109

SCREW- Mtg (10-24 x 1 2/4")

$

$

Not available

Homelite 0053115

NUT- Cap

$4.49

$

Usually ships in 3-7 days

0

Homelite 0053131

NUT- Hex lock #10-24

$2.99

$

Usually ships in 3-7 days

0

Homelite 0332654

HANG-UP THERMOSTAT

$

$

Not available

Homelite 0052902

AIR GUAGE KIT
(Superseded to PT19483)

$

$

Not available

Homelite 0332668

FUEL TANK FILTER SCREEN

$

$

Currently unavailable

Homelite A0332669

ROTOR KIT (Incl. #19, 20, & 32)

$

$

Currently unavailable

Homelite A0332680

FILTER KIT (Incl. #22, 29, 30 & 32)

$

$

Not available

Homelite A0332671

PUMP KIT (Incl. #24 thru 27)

$

$

Currently unavailable
