HM 20 P5 (UT-30153) - Homelite 20" Mulcher Walk-Behind Mower Gear Reducer Parts Diagram

20" Mulcher Walk-Behind Mower

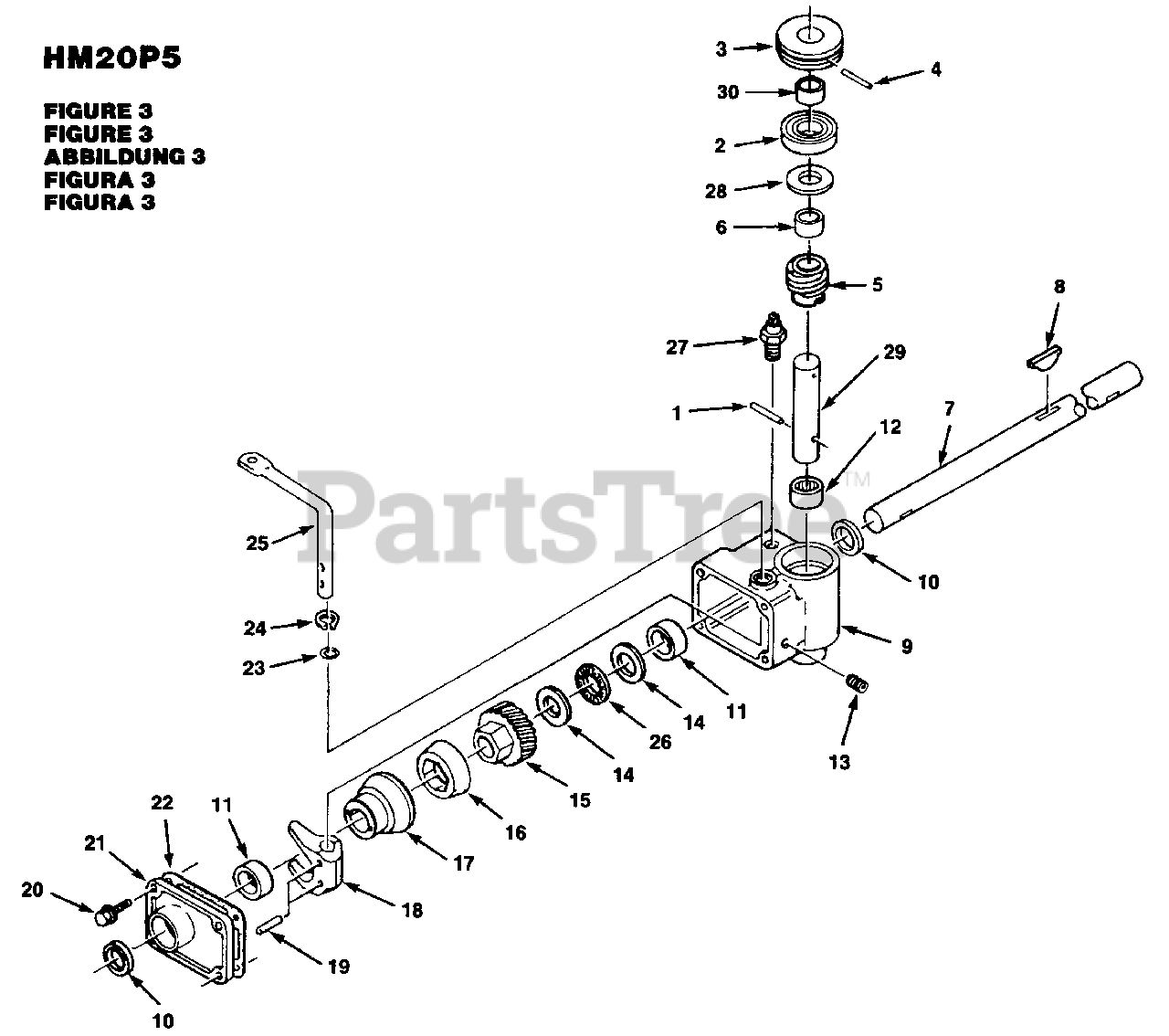

Gear Reducer Parts Diagram

  • Title

1

Homelite JA461415

PIN TBO

$

$

Not available

2

Homelite JA990499

4BALL BEARING-TBO

$

$

Not available

3

Homelite JA994966

Pulley - drive

$

$

Currently unavailable

4

Homelite JA461414

Pin - Roll 3/32 x 1 1/4"

$

$

Currently unavailable

5

Homelite JA990642

WORM & SPACER

$

$

Currently unavailable

6

Homelite JA990478

SPACER - Worm

$

$

Currently unavailable

7

Homelite JA992990

SHAFT-Drive

$

$

Currently unavailable

8

Homelite JA463101

KEY TBO

$1.99

$

In Stock, only 1 left!

0

9

Homelite JA990529

HOUSING - Gear box

$

$

Currently unavailable

10

Homelite JA376110

SEAL-TBO

$9.49

$

In Stock, only 2 left!

0

11

Homelite JA992820

BUSHING TBO

$

$

Not available

12

Homelite JA990527

BEARING,NEEDLE TBO
(Superseded to 58956)

$

$

Not available

13

Homelite JA472007

PLUG - Pipe

$

$

Not available

14

Homelite JA990446

RACE TBO

$

$

Not available

15

Homelite JA992770

GEAR TBO

$

$

Not available

16

Homelite JA992780

CONE - Friction

$

$

Currently unavailable

17

Homelite JA990217

DRUM - Clutch

$

$

Not available

18

Homelite JA990153

FORK TBO

$

$

Not available

19

Homelite JA461330

PIN - Groove

$

$

Not available

20

Homelite JA408862

SCREW- 1/4-20 x 7/8

$

$

Currently unavailable

21

Homelite JA990168

COVER - Gear Box

$

$

Currently unavailable

Homelite JA376110

SEAL-TBO

$9.49

$

In Stock, only 2 left!

0

Homelite JA992820

BUSHING TBO

$

$

Not available

22

Homelite JA375948

GEARBOX GASKET
(Superseded to GP582047)

$2.99

$

Usually ships in 3-7 days

0

23

Homelite JA459037

"O" Ring

$

$

Not available

24

Homelite JA458094

TRU-ARC RING

$

$

Not available

25

Homelite JA994140

LEVER - Shift

$

$

Currently unavailable

26

Homelite JA990447

BEARING - Needle

$

$

Currently unavailable

27

Homelite JA990415

VENT TBO

$

$

Not available

28

Homelite JA990463

WASHER

$

$

Not available

29

Homelite JA990526

WORM- Shaft

$

$

Not available

30

Homelite JA359231

SPACER- Pulley

$

$

Currently unavailable
