HMB 21 P5-I (UT-30529-B) - Homelite 21" Walk-Behind Mower Gear Reducer Parts Diagram

21" Walk-Behind Mower

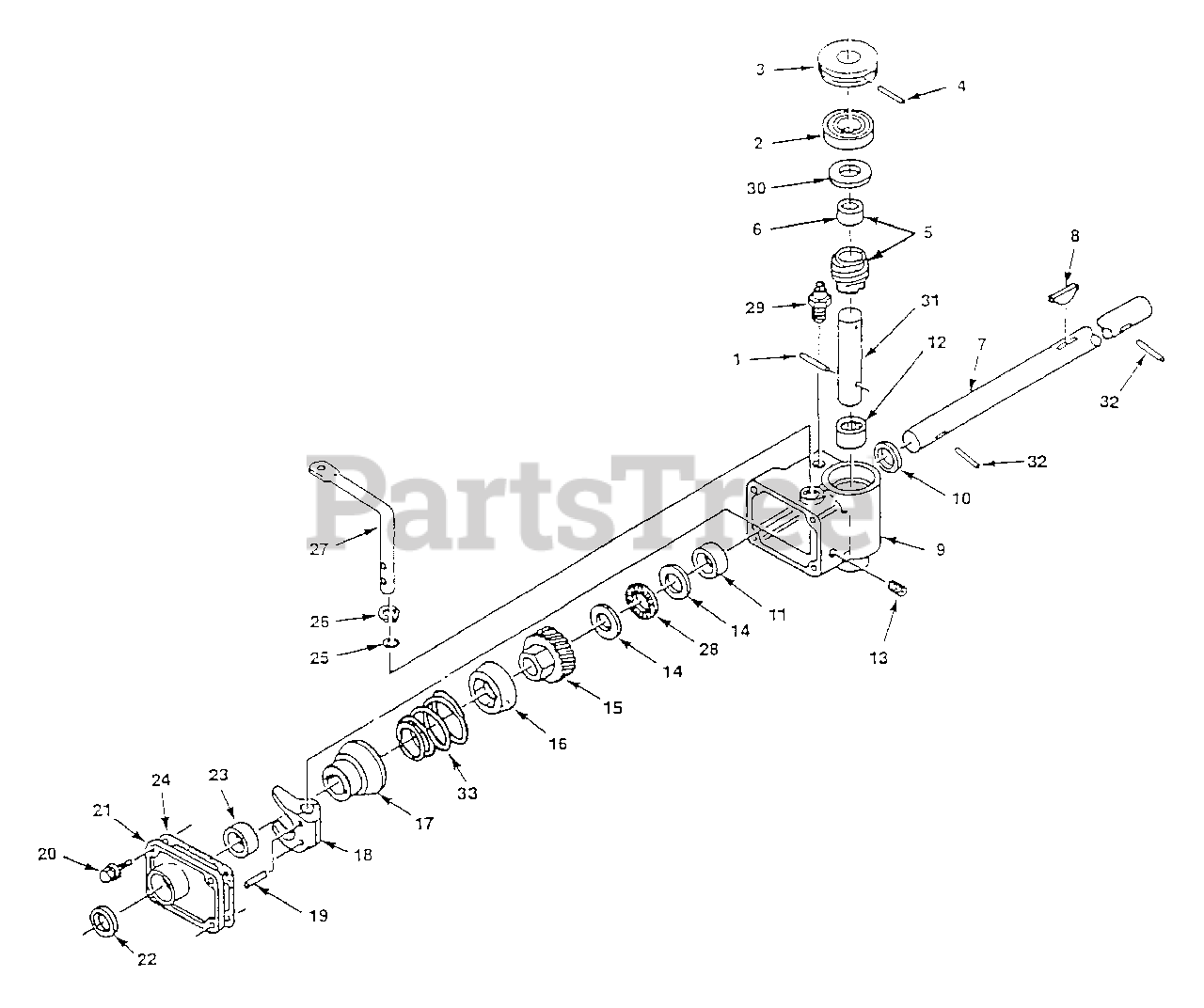

Gear Reducer Parts Diagram

  • Title

Homelite GP300014

TRANSMISSION

Note: Includes all items in this group

$

$

Currently unavailable

1

Homelite JA461415

Pin - Roll 3/16 x 7/8

$

$

Not available

2

Homelite JA990499

Bearing - Bail

$

$

Not available

3

Homelite JA359085

Pulley - Gear box
(Superseded to UP06660)

$19.99

$

Usually ships in 3-7 days

0

4

Homelite JA461414

Pin - Roll 3/32 x 1 1/4"

$

$

Currently unavailable

5

Homelite JA990642

WORM & SPACER

$

$

Currently unavailable

6

Homelite JA990478

SPACER - Worm

$

$

Currently unavailable

7

Homelite JA994780

SHAFT - Drive

$

$

Currently unavailable

8

Homelite JA463101

KEY

$1.99

$

In Stock, only 1 left!

0

9

Homelite JA990529

HOUSING - Gear box

$

$

Currently unavailable

10

Homelite JA376110

SEAL

$9.49

$

In Stock, only 2 left!

0

11

Homelite JA992820

BUSHING - Sleeve

$

$

Not available

12

Homelite 58956

BEARING - Needle

$

$

Not available

13

Homelite JA472007

PLUG - Pipe

$

$

Not available

14

Homelite JA990446

RACE - Thrust

$

$

Not available

15

Homelite JA992770

GEAR - Helical

$

$

Not available

Homelite A03385

CLUTCH - Drum & Cone

$

$

Currently unavailable

16

Homelite GP300021

CONE - Friction

$

$

Currently unavailable

17

Homelite JA990217

DRUM - Clutch

$

$

Not available

18

Homelite JA990153

FORK - Shift

$

$

Not available

19

Homelite JA461330

PIN - Groove

$

$

Not available

20

Homelite GP382891

SCREW - 1/4-20 x 7/8"

$4.49

$

Usually ships in 3-7 days

0

21

Homelite JA990168

COVER - Gear Box

$

$

Currently unavailable

22

Homelite 2A376110

SEAL

$

$

Currently unavailable

23

Homelite JA992820

BUSHING - Sleeve

$

$

Not available

24

Homelite JA375948

GASKET - Cover
(Superseded to GP582047)

$2.99

$

Usually ships in 3-7 days

0

25

Homelite JA459037

"O" Ring

$

$

Not available

26

Homelite JA458094

TRU-ARC RING

$

$

Not available

27

Homelite JA994140

LEVER - Shift

$

$

Currently unavailable

28

Homelite JA990447

BEARING - Needle

$

$

Currently unavailable

29

Homelite JA990415

VENT

$

$

Not available

30

Homelite JA990463

WASHER

$

$

Not available

31

Homelite JA990525

WORM - Shaft

$

$

Currently unavailable

32

Homelite JA461361

PIN - Roll 1/8" x 7/8"

$

$

Not available

33

Homelite GP095171

SPRING - Clutch

$

$

Currently unavailable
