Horse I - Troy-Bilt Rear-Tine Tiller, 8hp (SN: 001001 - 639999) WHEELS AND TIRES Parts Diagram

Rear-Tine Tiller, 8hp

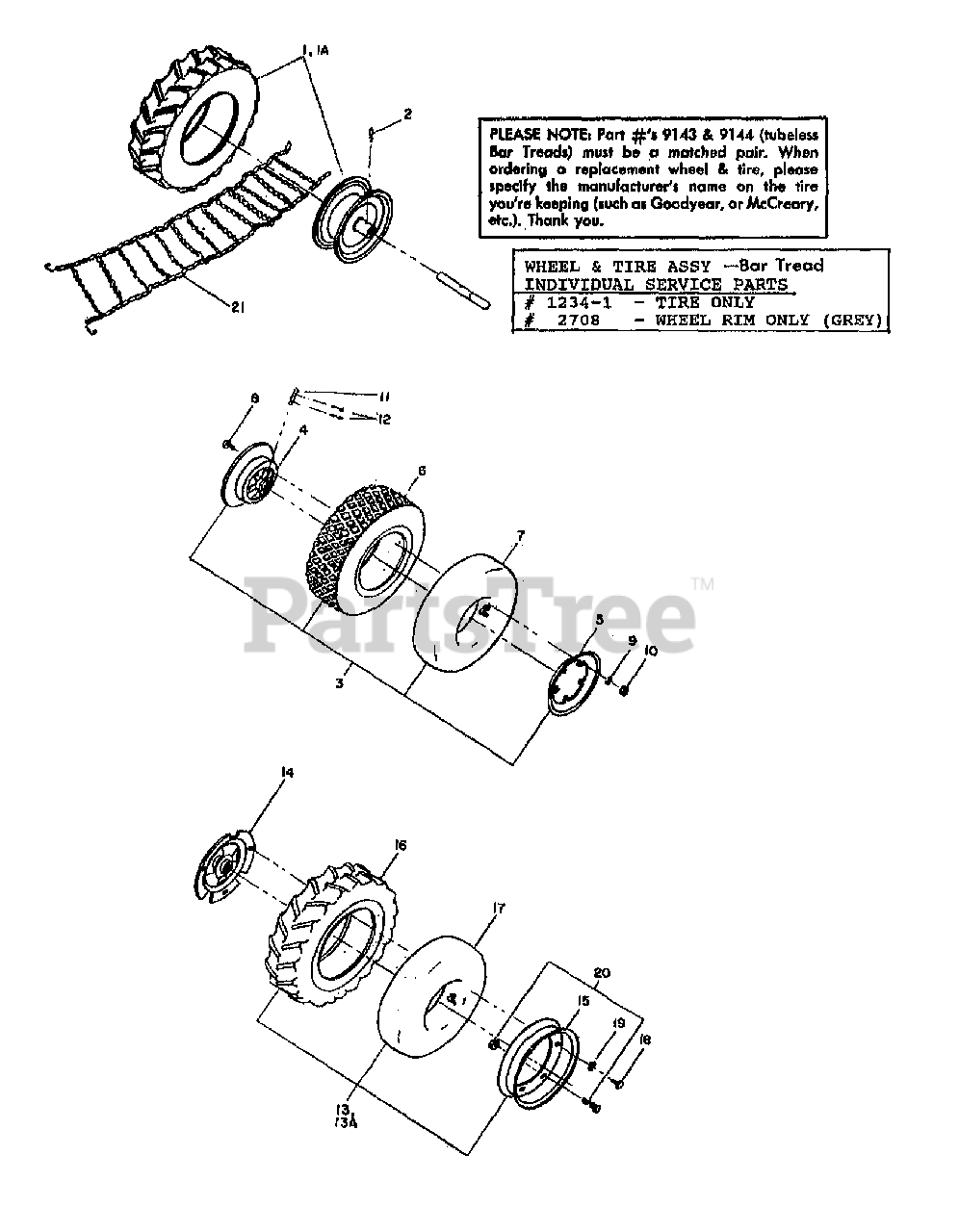

WHEELS AND TIRES Parts Diagram

  • Title

Troy-Bilt 1234-1

TIRE-BTT 4.80/4.00X8.00

$

$

Currently unavailable

Troy-Bilt 2708

RIM-WHEEL 8" GRAY

$

$

Currently unavailable

1

Troy-Bilt 9144

TIRE-RT BT GARDEN TRAC

$

$

Currently unavailable

1A

Troy-Bilt 9143

TIRE-LT BT GARDEN TRAC

$

$

Currently unavailable

2

Troy-Bilt 9322

PIN-SPIROL .313 X 1.5
(Superseded to GW-9322099)

$7.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 9148

4X7TIRE/TUBE

$

$

Currently unavailable

4

Troy-Bilt 1018

HUB-4X7

$

$

Currently unavailable

5

Troy-Bilt 1017

WHEEL RIM

$

$

Currently unavailable

6

Troy-Bilt 9109

TIRE 4X7

$

$

Currently unavailable

7

Troy-Bilt 9110

TUBE-4X7

$

$

Currently unavailable

8

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

9

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

10

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

11

Troy-Bilt 1097

KIT-NUT/BOLT PIN WHL/SHAFT

$

$

Currently unavailable

12

Troy-Bilt 9317

PIN-COTTER .094X1.0
(Superseded to GW-9317)

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 9149

ASSM-WHEEL 4X8 BTT

$

$

Currently unavailable

13A

Troy-Bilt 9150

ASSM-RT WHL BTT

$

$

Currently unavailable

14

Troy-Bilt 1163

HUB-WHEEL MACH

$

$

Currently unavailable

15

Troy-Bilt 9113

RIMS W/HDW (1648)

$

$

Currently unavailable

16

Troy-Bilt 9111

TIRE-BTT 4.80/4.00X8.00

$

$

Currently unavailable

17

Troy-Bilt 9112

TUBE-INNER BT (4 X 8)

$

$

Currently unavailable

18

Troy-Bilt 9709

SCR-HH 3/8-16X.75 G5 ZP

$

$

Currently unavailable

19

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

20

0

STUD & NUT

$

$

Not available

21

Troy-Bilt 9146

CHAINS-HORSE TILLER

$

$

Currently unavailable
