HPW 3050 H (UT-01814) - Homelite Pressure Washer Unloader Parts Diagram

Pressure Washer

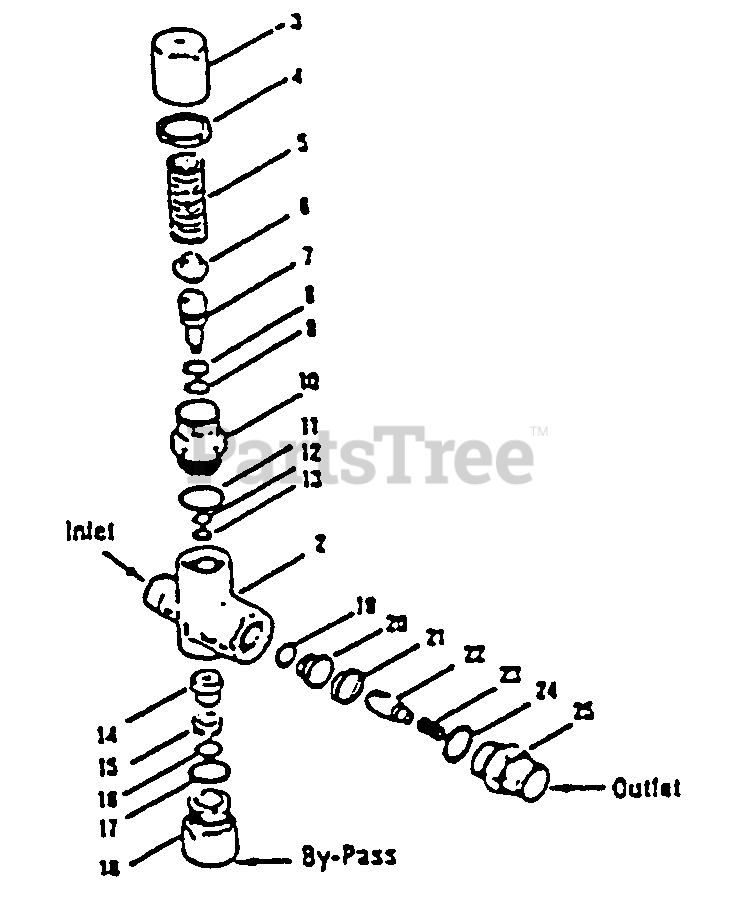

Unloader Parts Diagram

  • Title

2

Homelite E45196

Body

Note: Brass

$

$

Currently unavailable

3

Homelite E45197

Hex Adjusting Cap

Note: Brass

$

$

Currently unavailable

4

Homelite E45201

Lock Nut (M25 x 1) (Included)

$

$

Currently unavailable

5

Homelite E45198

Coil Spring-3000 PSi

$

$

Currently unavailable

6

Homelite E45199

Spring Retainer

Note: Brass

$

$

Currently unavailable

7

Homelite E45694

Piston Stem-M5

Note: Brass

$

$

Currently unavailable

8

Homelite E20184

Back-Up ring

Note: Teflon

$

$

Currently unavailable

9

Homelite E14190

O-Ring, Piston Stem

Note: Buna N

$

$

Currently unavailable

10

Homelite E45200

Piston Retainer

Note: Brass

$

$

Currently unavailable

11

Homelite E26133

O-Ring, Piston Guide

Note: Buna N

$

$

Currently unavailable

12

Homelite E14759

O-Ring, Body

Note: Buna N

$

$

Currently unavailable

13

Homelite E107675

Back-up Ring

Note: Teflon

$

$

Currently unavailable

14

Homelite E45716

Valve and Ball Assembly - M5

Note: 304SS

$

$

Currently unavailable

15

Homelite E107680

Valve Seat

Note: 304SS

$

$

Currently unavailable

16

Homelite E13963

O-Ring, Valve Seat

Note: Buna N

$

$

Currently unavailable

17

Homelite E26133

O-Ring, Adapter

Note: Buna N

$

$

Currently unavailable

18

Homelite E45695

By-Pass Fitting - 3/8" NPT

Note: Brass

$

$

Currently unavailable

19

Homelite E26127

O-Ring, Seat

Note: Buna N

$

$

Currently unavailable

20

Homelite E45206

Seat

Note: 304SS

$

$

Currently unavailable

21

Homelite E45205

Collar

$

$

Currently unavailable

22

Homelite E45203

Flow Balancer w/O-Ring

Note: Brass

$

$

Currently unavailable

23

Homelite E45924

Spring - 85G

$

$

Currently unavailable

24

Homelite E26133

O-Ring, Discharge Fitting

Note: Buna N

$

$

Currently unavailable

25

Homelite E107681

Discharge Fitting - 3/8" NPT

Note: Brass

$

$

Currently unavailable

Homelite E32098

O-Ring Kit

Note: (Includes 8, 9, 11, 12, 13, 16, 17, 19)

$

$

Currently unavailable

Homelite E0709141

By-Pass Hose w/Thermo Valve

Note: (Opt.)

$

$

Currently unavailable

Homelite E07091

By-Pass Hose - 24"

Note: (Opt.)

$

$

Currently unavailable
