HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in Japan (SN: MA2R-1000001 - MA2R-6000000) RECOIL STARTER 2613585-- Parts Diagram

17" Walk-Behind Mower, Made in Japan

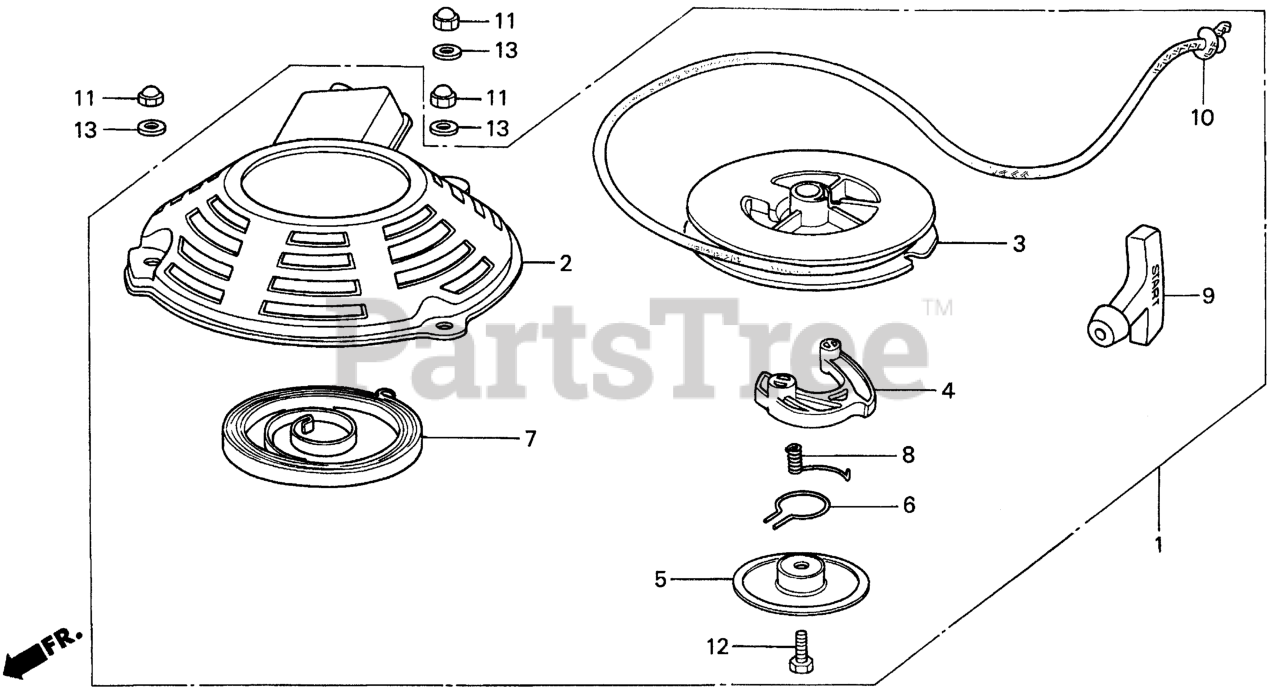

RECOIL STARTER 2613585-- Parts Diagram

  • Title

1

Honda 28400-ZG1-702ZA

STARTER ASSY., RECOIL *G144* (GARDEN GREEN)

Note: Use from Engine SN 2613585.

$

$

Not available

1

Honda 28400-ZG1-702ZB

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use from Engine SN 2613585.

$

$

Currently unavailable

2

Honda 28410-ZG1-702ZB

CASE, RECOIL STARTER *G144* (GARDEN GREEN)

Note: Use from Engine SN 2613585.

$

$

Not available

2

Honda 28410-ZG1-702ZD

SEE PART DETAILS - PRI; CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: Use from Engine SN 2613585.

$

$

Not available

3

Honda 28420-ZG1-702

REEL, RECOIL STARTER

Note: Use from Engine SN 2613585.

$

$

Not available

4

Honda 28422-896-010

SEE PART DETAILS - PRI; RATCHET, STARTER (Honda Code 1033224).

Note: Use from Engine SN 2613585.

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION (Honda Code 0927913).

Note: Use from Engine SN 2613585.

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION (Honda Code 0927921).

Note: Use from Engine SN 2613585.

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER (Honda Code 2332922).

Note: Use from Engine SN 2613585.

$23.99

$

Usually ships in 3-6 days

0

8

Honda 28443-896-000

SPRING, RETURN (Honda Code 0927939).

Note: Use from Engine SN 2613585.

$4.99

$

In Stock, only 1 left!

0

9

Honda 28461-ZG0-004

KNOB, STARTER

Note: Use from Engine SN 2613585.

$8.99

$

Usually ships in 3-6 days

0

10

Honda 28462-ZG1-702

ROPE, RECOIL STARTER (#4X91")

Note: Use from Engine SN 2613585.

$

$

Currently unavailable

11

Honda 90106-MB9-871

NUT, FLANGE CAP (5MM)

Note: Use from Engine SN 2613585.

$3.99

$

Usually ships in 3-6 days

0

12

Honda 92101-06012-0H

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 3438264).

Note: Use from Engine SN 2613585.

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94103-05000

WASHER, PLAIN (5MM) (Honda Code 1555630).

Note: Use from Engine SN 2613585.

$0.99

$

In Stock, only 4 left!

0
