HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) GRASS BAG@DISCHARGE ADAPTER Parts Diagram

21" Walk-Behind Mower, Made in Japan

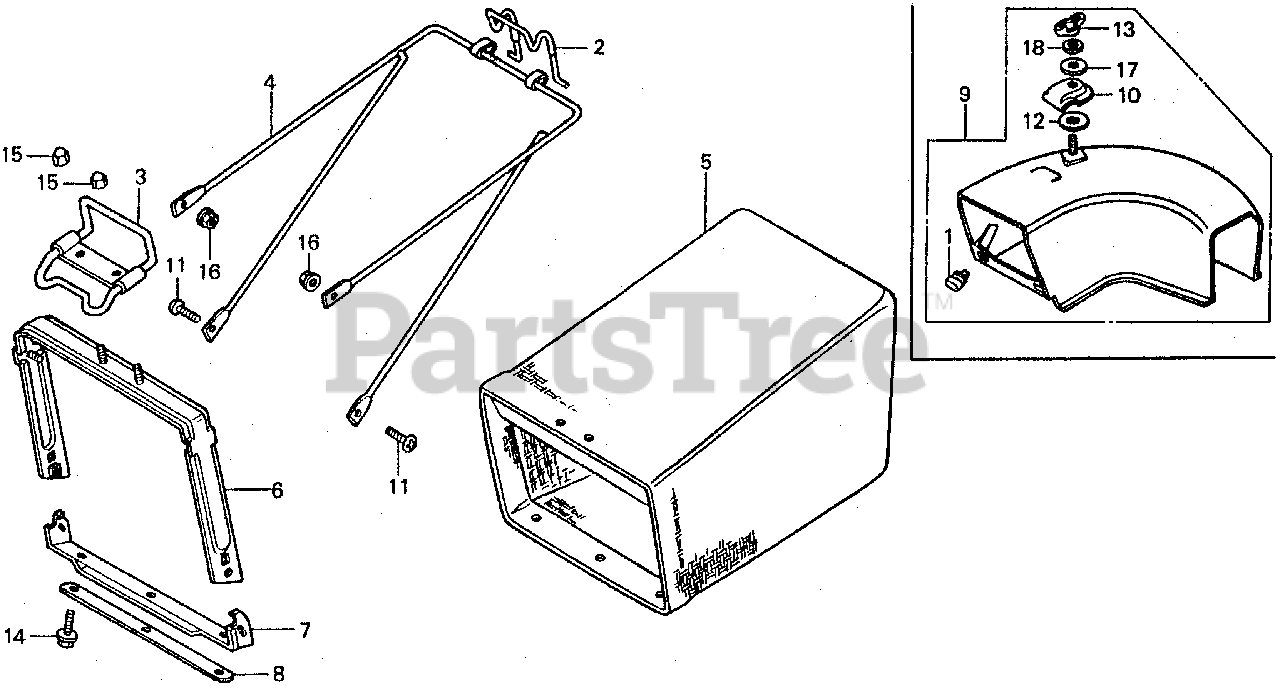

GRASS BAG@DISCHARGE ADAPTER Parts Diagram

  • Title

1

Honda 76122-952-000

STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736.

Note: (Optional).

$4.99

$

In Stock, only 2 left!

0

2

Honda 81154-963-000

GRIP, GRASS BAG (NOT AVAILABLE)

$

$

Not available

3

Honda 81155-963-000

HANDLE, GRASS BAG

$

$

Not available

4

Honda 81156-963-000

BAR, GRASS BAG

$

$

Not available

5

Honda 81157-963-000

FABRIC, GRASS BAG

$207.99

$

Usually ships in 3-6 days

0

6

Honda 81158-963-000

FRAME A, BAG

$

$

Not available

7

Honda 81159-963-000

FRAME B, BAG

$

$

Not available

8

Honda 81162-963-000

PLATE, BAG

$

$

Not available

9

Honda 81210-963-620

ADAPTER, DISCHARGE (N/A: SEE COMPONENTS)

Note: (Optional).

$

$

Currently unavailable

10

Honda 81211-952-300

PLATE, CLAMP

Note: (Optional).

$

$

Not available

11

Honda 90102-679-003

SCREW, TORUS (6X16)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90136-428-870

WASHER, TANK SETTING

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

Note: (Optional).

$5.49

$

In Stock, Qty 14

0

14

Honda 93404-06012-00

BOLT-WASHER (6X12)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM) (Honda Code 0057893).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94111-06000

SEE PART DETAILS - PRI; WASHER, SPRING (6MM)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
