HRA21 SDA (HRA21) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HRA21-1000001 - HRA21-9999999) TRANSMISSION CASE@CHANGE ARM Parts Diagram

21" Walk-Behind Mower, Made in Japan

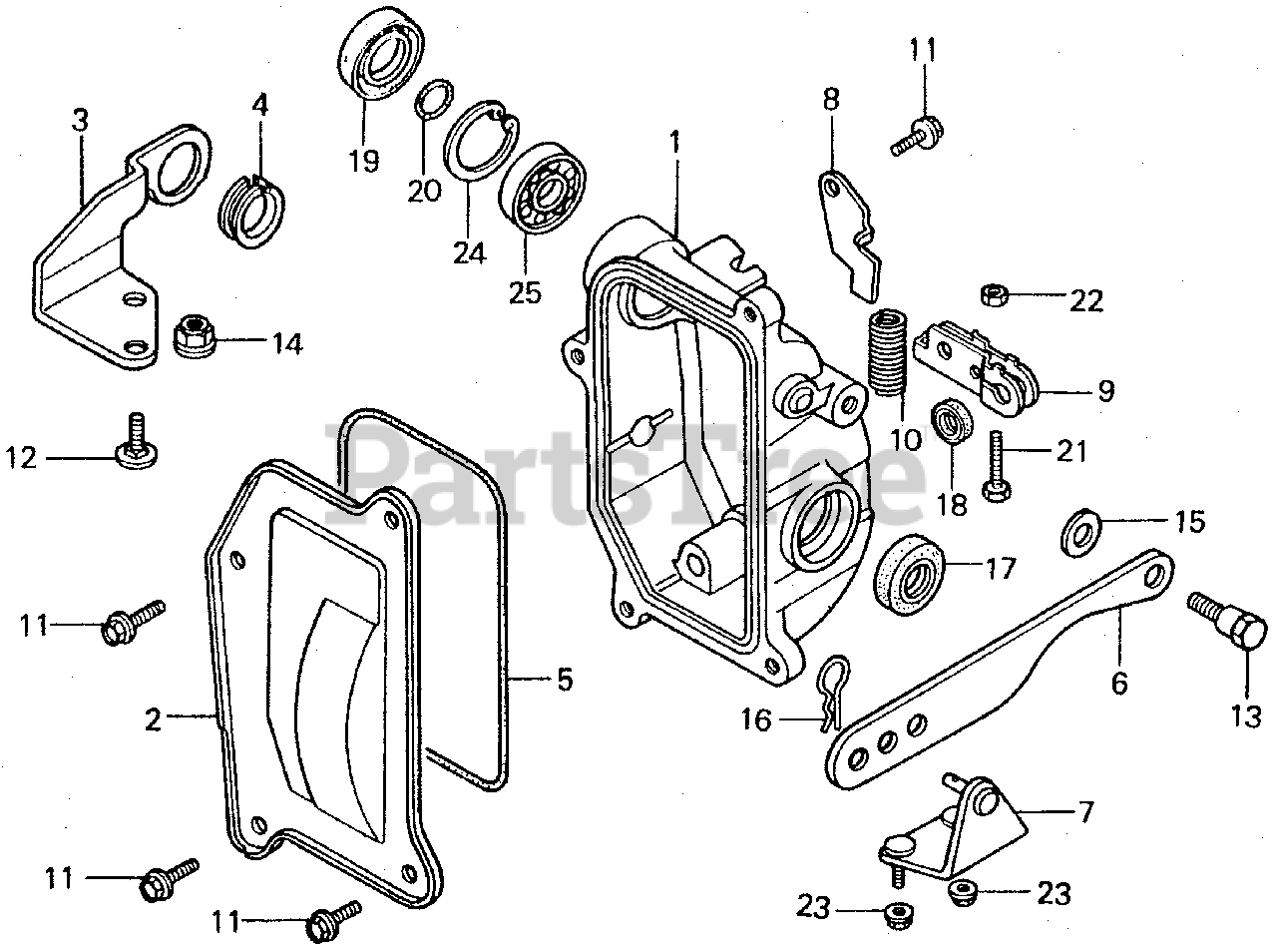

TRANSMISSION CASE@CHANGE ARM Parts Diagram

  • Title

1

Honda 211A1-963-000

CASE, TRANSMISSION (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 21211-963-000

COVER, CASE

$

$

Not available

3

Honda 21221-963-000

STAY A, CASE MOUNTING (NOT AVAILABLE)

$

$

Not available

4

Honda 21225-963-000

BUSH, CASE MOUNTING (NOT AVAILABLE)

$

$

Not available

5

Honda 21591-963-000

O-RING, CASE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 22531-963-610

ARM, CHANGE

$

$

Not available

7

Honda 22533-963-610

STAY, CHANGE ARM

$

$

Not available

8

Honda 22535-963-000

HOLDER, WIRE

$

$

Not available

9

Honda 23436-963-000

ARM, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 23437-963-000

SPRING, CLUTCH RETURN

$

$

Not available

11

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 11

0

12

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

13

Honda 90138-381-000

BOLT, MUFFLER SETTING (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 10

0

15

Honda 90465-422-000

WASHER, THRUST (8MM)

$3.99

$

Usually ships in 3-6 days

0

16

Honda 90651-703-000

PIN, SNAP (7MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 91201-965-000

SEE PART DETAILS - PRI; OIL SEAL (12X22X5)

$5.99

$

Usually ships in 3-6 days

0

18

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, only 2 left!

0

18

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, only 2 left!

0

19

Honda 91204-952-772

OIL SEAL (18X38X6) (NOT AVAILABLE)

$8.49

$

Usually ships in 3-6 days

0

20

Honda 91205-952-771

O-RING (11.7X1.2) (NOT AVAILABLE)

$

$

Not available

21

Honda 92101-06020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 2528925).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

22

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

23

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

24

Honda 94520-28000

CIRCLIP (INNER) (28MM)

$1.99

$

Usually ships in 3-6 days

0

25

Honda 96100-60010-00

BEARING, RADIAL BALL (6001)

$23.99

$

Usually ships in 3-6 days

0
