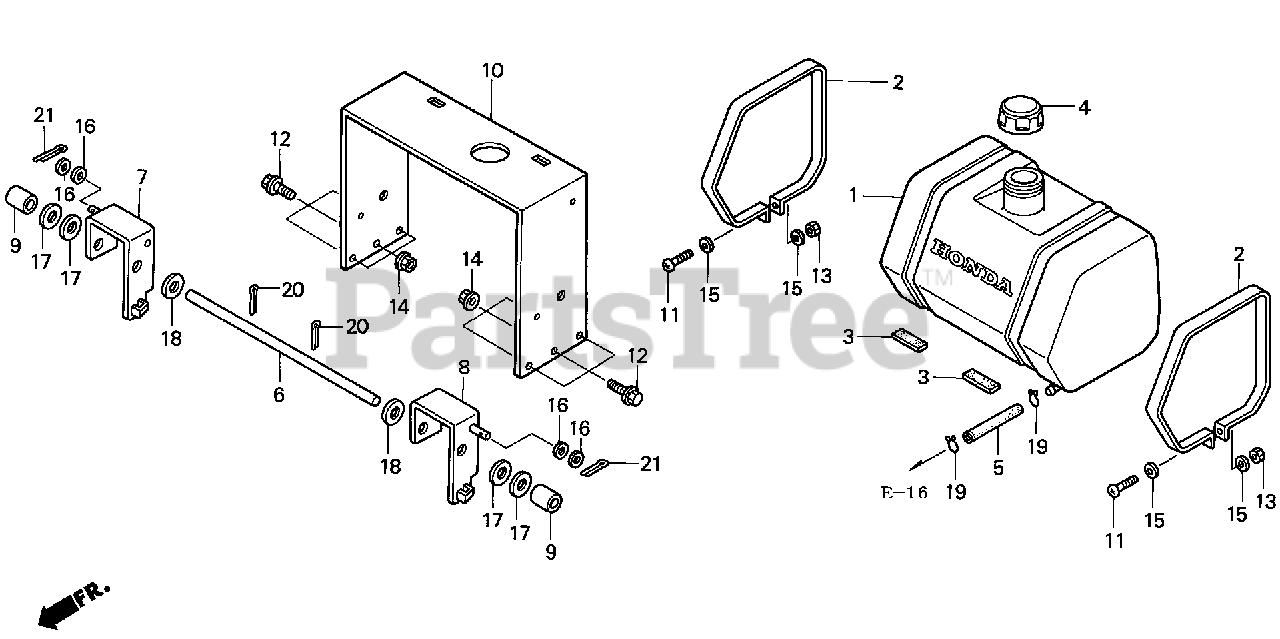

HRC7113 TXA (MZCK) - Honda Walk-Behind Mower, Made in USA (SN: MZCK-3000001 - MZCK-9999999) FUEL TANK Parts Diagram

Walk-Behind Mower, Made in USA

FUEL TANK Parts Diagram

  • Title

1

Honda 17510-VG5-000

TANK, FUEL

$171.99

$

Usually ships in 3-6 days

0

2

Honda 17517-VG5-000

STRAP, FUEL TANK

$13.99

$

Usually ships in 3-6 days

0

3

Honda 17532-VG5-000

PAD, FUEL TANK

$1.99

$

Usually ships in 3-6 days

0

4

Honda 17620-VG5-000

CAP ASSY., FUEL TANK

$

$

Not available

5

Honda 17701-VG5-000

TUBE, FUEL

$1.99

$

Usually ships in 3-6 days

0

6

Honda 22553-VG5-000

SHAFT, CLUTCH LINK

$47.99

$

Usually ships in 3-6 days

0

7

Honda 22810-VG5-000

ARM, R. CLUTCH

$67.99

$

Usually ships in 3-6 days

0

8

Honda 22815-VG5-000

ARM, L. CLUTCH

$63.99

$

Usually ships in 3-6 days

0

9

Honda 24672-VG5-000

SPACER

$10.99

$

Usually ships in 3-6 days

0

10

Honda 53131-VG5-000

SUPPORT, HANDLE

$138.99

$

Usually ships in 3-6 days

0

11

Honda 90117-VE4-003

SCREW, PAN (10-24X1 3/4") (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 90180-VG5-000

BOLT, WHIZ-LOCK (1/2-13X1")

$5.49

$

Usually ships in 3-6 days

0

13

Honda 90308-VG5-000

NUT (10-24)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 90367-VG5-000

NUT, WHIZ-LOCK (1/2"-13)

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90508-VG5-000

WASHER, FLAT (#10)

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90512-VG5-000

WASHER, FLAT (3/8")

$0.99

$

In Stock, only 2 left!

0

17

Honda 90515-VG5-000

WASHER (3/4"-1 1/4"X18)

$0.99

$

Usually ships in 3-6 days

0

18

Honda 90517-VG5-000

WASHER, FLAT (3/4")

$0.99

$

Usually ships in 3-6 days

0

19

Honda 90653-VG5-000

CLAMP, FUEL

$1.99

$

Usually ships in 3-6 days

0

20

Honda 90757-VG5-L00

PIN, COTTER (1/8X1 1/2")

$0.99

$

Usually ships in 3-6 days

0

21

Honda 90781-VG5-000

PIN, COTTER (1/8X3/4")

$0.99

$

Usually ships in 3-6 days
