HS1132 TA/A (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1010001 - SZBF-9999999) RECOIL STARTER Parts Diagram

32" Snow Blower, Made in Japan

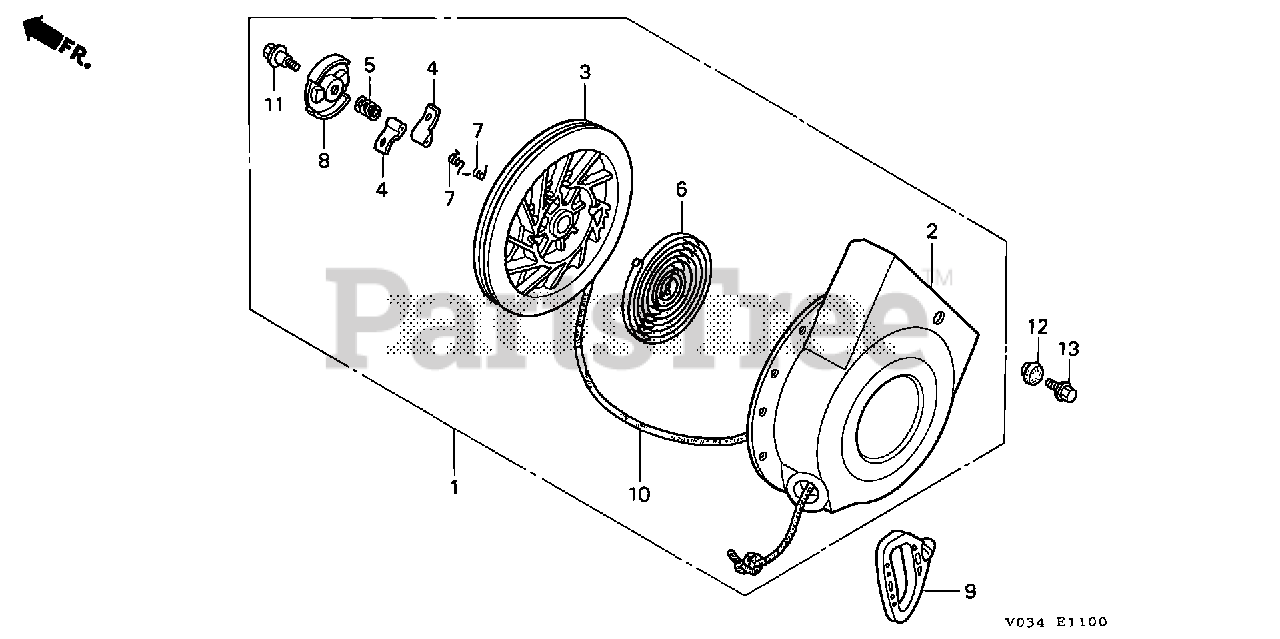

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE3-H61ZB

STARTER ASSY., RECOIL *R280* (POWER RED)

$106.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZE3-H61ZB

CASE, RECOIL STARTER *R280* (POWER RED)

$65.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE8-821

PULLEY, RECOIL STARTER

$48.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

In Stock, only 2 left!

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, only 1 left!

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

In Stock, only 2 left!

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

Usually ships in 3-6 days

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-H22

GRIP, STARTER

$12.99

$

In Stock, only 3 left!

0

10

Honda 28462-ZE2-H21

ROPE, RECOIL STARTER (NA USE ALT:08550-ZG921-11)

$

$

Currently unavailable

11

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, only 1 left!

0

12

Honda 91618-SA5-000

GROMMET B, CONTROL WIRE (16MM)

$7.49

$

Usually ships in 3-6 days

0

13

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0
