HS80 K1 TA (SA1) - Honda Snow Blower, Made in Japan (SN: SA1-1100001 - SA1-9999999) HS80 RECOIL STARTER K-K1 Parts Diagram

Snow Blower, Made in Japan

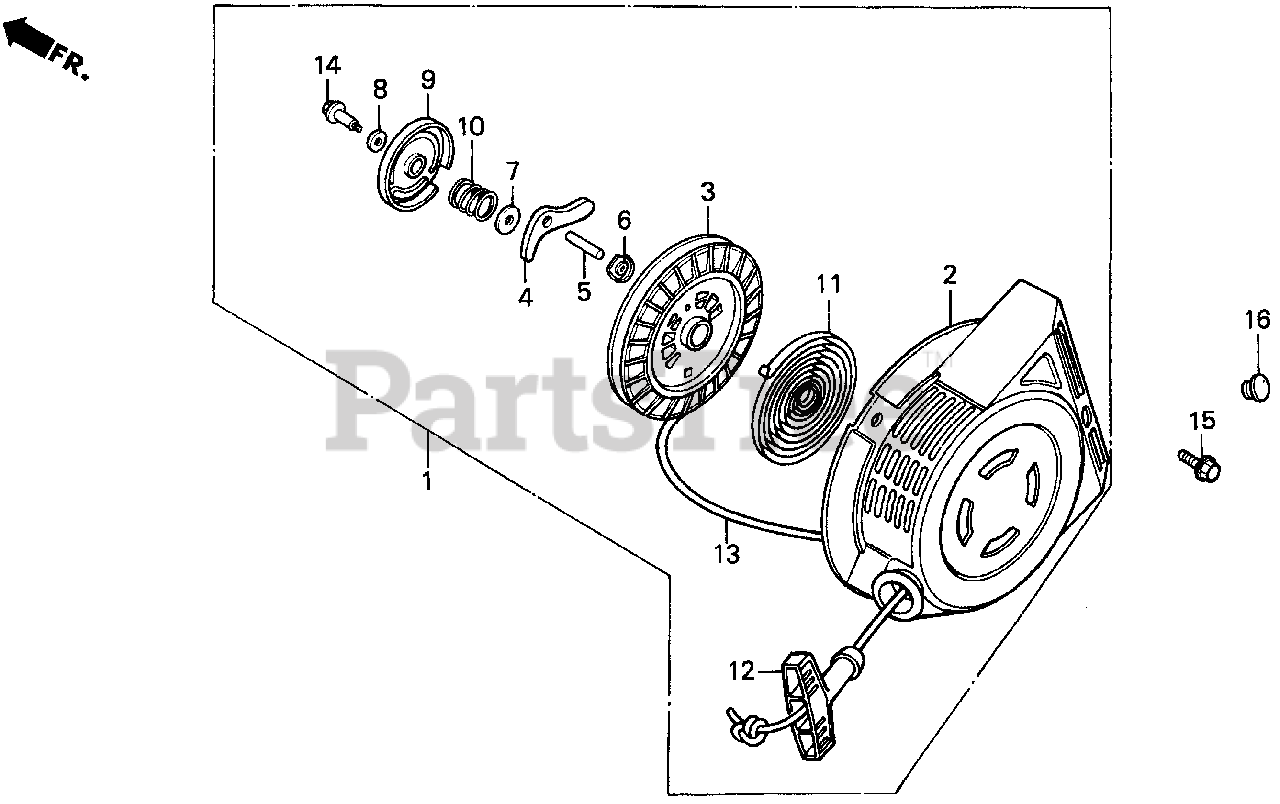

HS80 RECOIL STARTER K-K1 Parts Diagram

  • Title

1

Honda 06284-ZE2-405ZA

STARTER KIT, RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 1100276.

$

$

Currently unavailable

1

Honda 28400-ZE2-405ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use from Engine SN 1100277.

$

$

Currently unavailable

2

Honda 28410-ZE2-H22H

CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: Use from Engine SN 1100277 to 1171448.

$

$

Not available

2

Honda 28410-ZE2-H22ZA

CASE, STARTER *R8* (BRIGHT RED)

Note: Use from Engine SN 1171449.

$

$

Not available

3

Honda 28420-889-631

REEL, STARTER

$34.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE1-711

RATCHET, STARTER

$5.49

$

Usually ships in 3-6 days

0

5

Honda 28423-ZE1-711

SHAFT, RATCHET

$8.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-711

SEE PART DETAILS - SUP; PLATE, GUIDE
(Superseded to 28424-ZE1-712)

$4.99

$

Usually ships in 3-6 days

0

6

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28431-ZE1-711

PLATE A, FRICTION

$3.99

$

Usually ships in 3-6 days

0

8

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28434-ZE1-711

COVER, REEL STARTER

$

$

Not available

10

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

$3.49

$

Usually ships in 3-6 days

0

11

Honda 28442-ZE1-711

SEE PART DETAILS - SUP; SPRING, RETURN
(Superseded to 28442-ZE1-713)

$21.99

$

In Stock, only 1 left!

0

11

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN

$21.99

$

In Stock, only 1 left!

0

12

Honda 28461-ZE2-H21

SEE PART DETAILS - SUP; GRIP, STARTER

Note: Use from Engine SN 1100277.

$

$

Not available

12

Honda 28461-889-631

GRIP, STARTER

Note: Use up to Engine SN 1100276.

$10.99

$

In Stock, Qty 14

0

13

Honda 28462-ZE2-003

SEE PART DETAILS - SUP; ROPE, STARTER (#5X59") (N/A: USE ALT. PNO 08550-ZG921-11)

$

$

Currently unavailable

14

Honda 90003-ZG0-003

BOLT, REEL COVER

$

$

Not available

15

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 8

0

16

Honda 91618-SA5-000

GROMMET B, CONTROL WIRE (16MM)

$7.49

$

Usually ships in 3-6 days

0
