HS928 WAS (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1100001 - SZAS-1129999) AIR CLEANER Parts Diagram

28" Snow Blower, Made in Japan

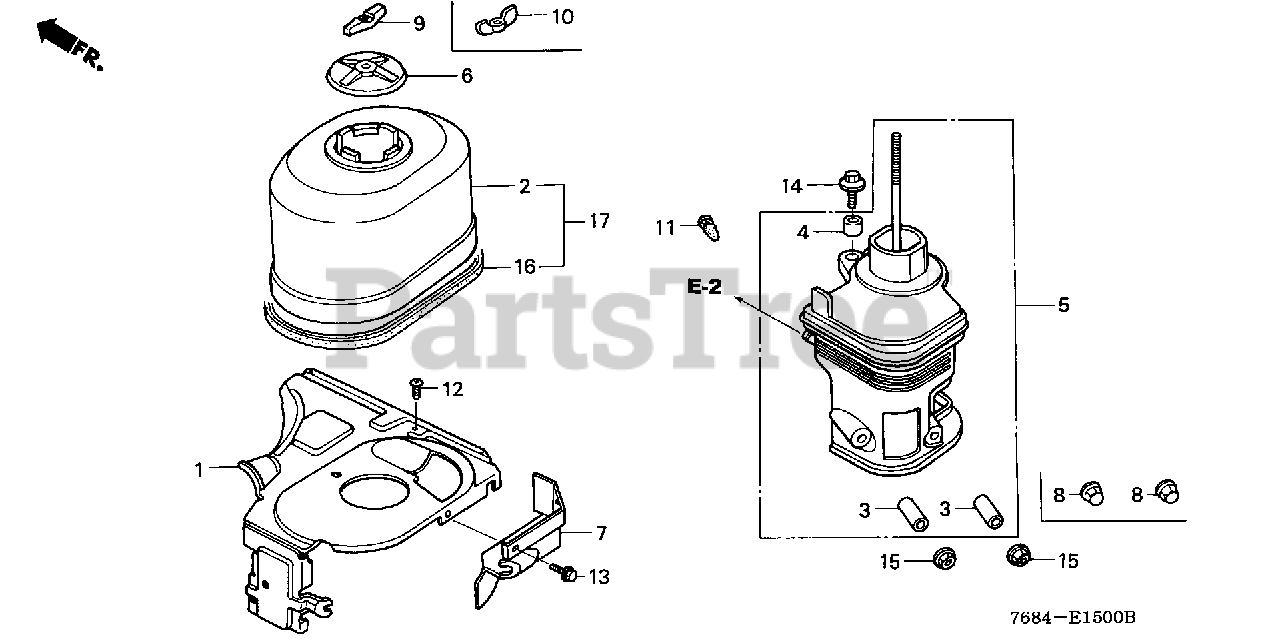

AIR CLEANER Parts Diagram

  • Title

1

Honda 16591-ZE2-P51

COVER, CONTROL

$61.99

$

Usually ships in 3-6 days

0

2

Honda 17231-ZE2-000

COVER, AIR CLEANER (SEMI-DRY)

Note: Use up to Engine SN 1593525.

$33.99

$

Usually ships in 3-6 days

0

3

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$4.49

$

In Stock, Qty 12

0

4

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.49

$

In Stock, Qty 9

0

5

Honda 17410-ZE2-020

ELBOW, AIR CLEANER
(Superseded to 17410-ZE2-030)

$32.99

$

In Stock, only 1 left!

0

6

Honda 17420-ZE2-P50

CAP, AIR CLEANER

$10.99

$

Usually ships in 3-6 days

0

7

Honda 19661-ZE2-P51

COVER, AIR IN.

$23.99

$

Usually ships in 3-6 days

0

10

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

11

Honda 90899-422-610

PLUG, CONE TYPE

$2.49

$

Usually ships in 3-6 days

0

12

Honda 93500-06008-0G

SCREW, PAN (6X8)

$1.49

$

In Stock, Qty 7

0

13

Honda 95701-06008-07

BOLT, FLANGE (6X8)

$1.49

$

In Stock, Qty 8

0

15

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 17233-ZE2-H90

RUBBER, AIR CLEANER COVER

Note: Use from Engine SN 1593526.

$13.99

$

Usually ships in 3-6 days

0

17

Honda 17230-ZE2-H90

COVER, AIR CLEANER

Note: Use from Engine SN 1593526.

$47.99

$

Usually ships in 3-6 days

0
