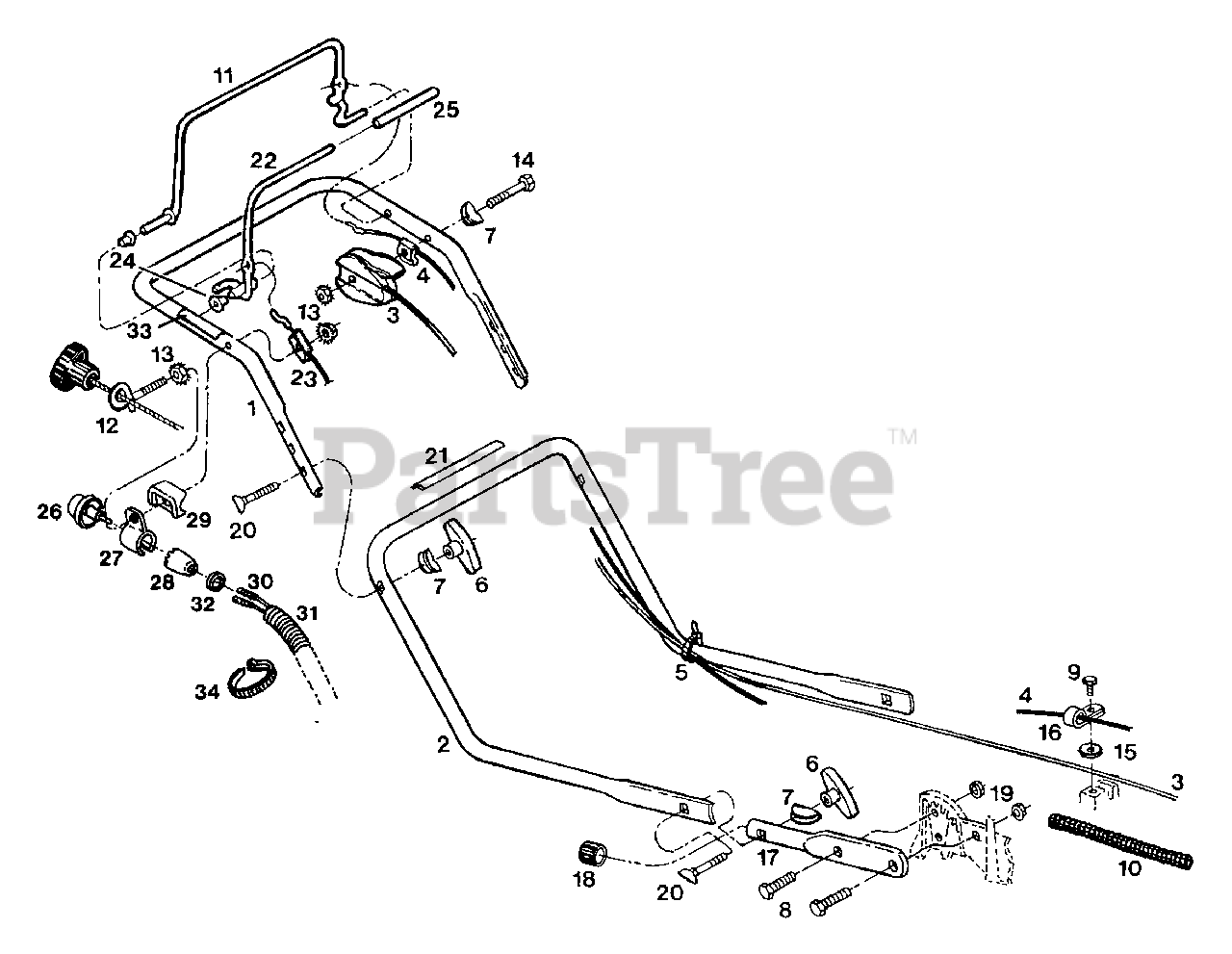

HSB 21 P5EI (UT-30517-B) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Superbagger Walk-Behind Mower

Handles & Controls Parts Diagram

  • Title

1

Homelite GP023891

Handle - Upper

$

$

Currently unavailable

2

Homelite JA993741

Handle - lower

$

$

Currently unavailable

3

Homelite GP053107

Control - throttle w/cable

$

$

Currently unavailable

4

Homelite GP053108

Cable - engine/blade control

$

$

Currently unavailable

5

Homelite JA994274

Cable Tie

$

$

Not available

6

Homelite GP115540

Wing Nut - plastic

$

$

Currently unavailable

7

Homelite GP150201

Washer - 5/16 curved

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 80085

Bolt - hex 5/16-18 x 1

$1.49

$

Usually ships in 3-7 days

0

9

Homelite GP158097

Screw - 1/4-20 x 5/8 hex tap

$

$

Currently unavailable

10

Homelite JA994888

Cover - cable

$

$

Currently unavailable

11

Homelite GP073623

Bail - engine/blade control

$

$

Currently unavailable

12

Homelite GP152629

Eyebolt - rope guide

$

$

Currently unavailable

13

Homelite GP715037

Nut - hex 1/4-20 keps

$

$

Currently unavailable

14

Homelite GP616094

Bolt - hex 1/4-20 x 2 1/2

$

$

Currently unavailable

15

Homelite GP151555

Washer - flat 1/4

$

$

Currently unavailable

16

Homelite JA994310

Clamp - engine control cable

$

$

Currently unavailable

17

Homelite JA994739

Stub - handle mounting

$

$

Currently unavailable

18

Homelite JA994795

Plug - stub end

$

$

Currently unavailable

19

Homelite JA445775

Nut - hex 5/16-18 finge lock
(Superseded to UP06674)

$

$

Not available

20

Homelite GP151936

Bolt - handle, curved head

$

$

Currently unavailable

21

Homelite GP800068

Decal - Starting Instructions

$

$

Currently unavailable

22

Homelite JA993860

Bail - ground drive control

$18.99

$

Usually ships in 3-7 days

0

23

Homelite GP053093

Cable - drive control
(Superseded to UP06700)

$

$

Not available

24

Homelite JA993670

Bushing - control bail

$

$

Not available

25

Homelite JA993682

Sleeve - control bail

$

$

Not available

26

Homelite JA991228

Switch - push button

$

$

Currently unavailable

27

Homelite JA992394

Mount - switch

$

$

Currently unavailable

28

Homelite JA992395

Housing - switch

$

$

Currently unavailable

29

Homelite GP115530

Spacer - mounting

$

$

Currently unavailable

30

Homelite JA991226

Harness - wiring

$

$

Not available

31

Homelite JA990626

Cover - harness

$

$

Not available

32

Homelite JA359289

Clip - harness cover

$17.99

$

Usually ships in 3-7 days

0

33

Homelite JA990618

Decal - Press to Start

$

$

Currently unavailable

34

Homelite JA991636

Tie - cable

$

$

Not available
