HSB 21 (UT-30515-B) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Superbagger Walk-Behind Mower

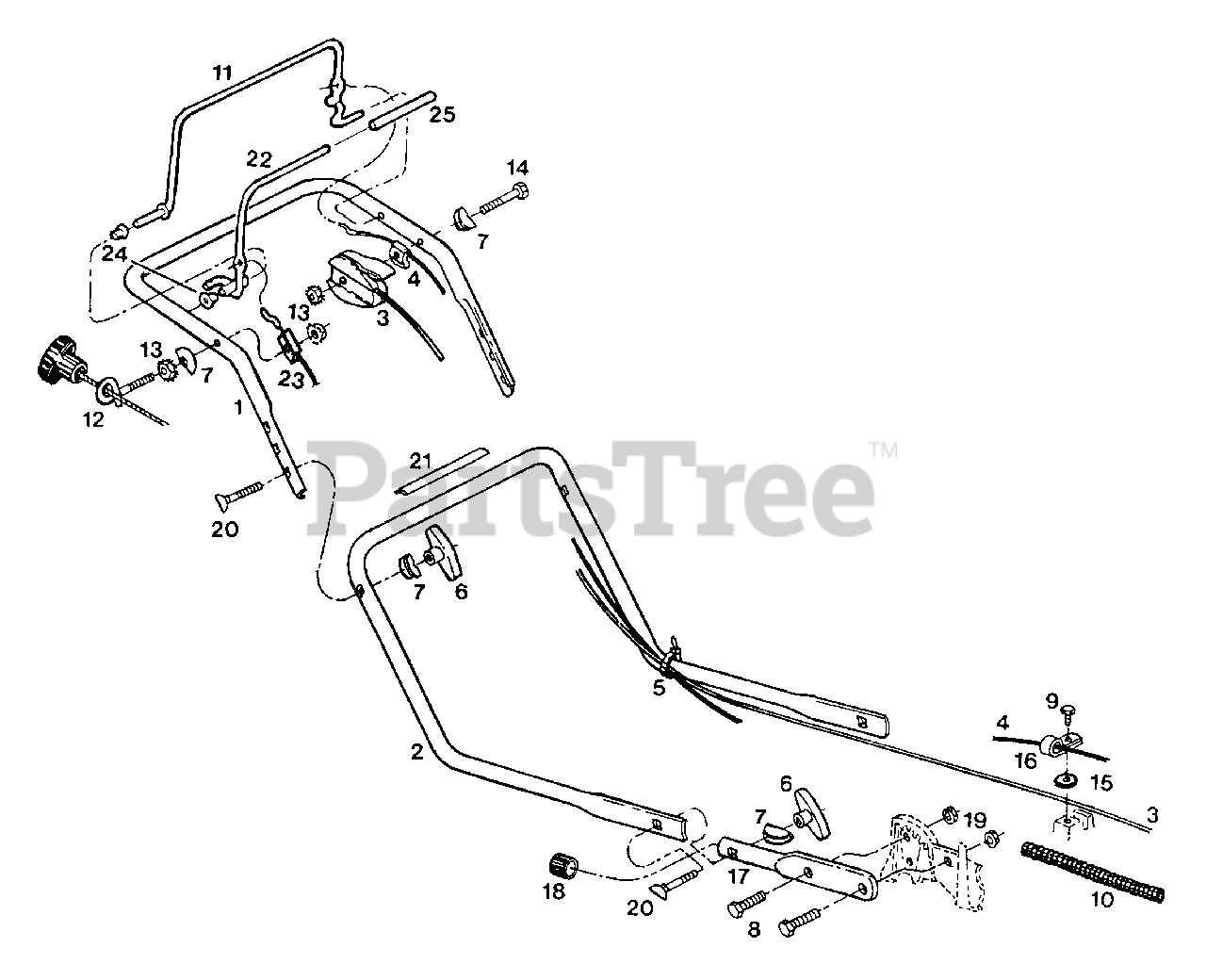

Handles & Controls Parts Diagram

  • Title

1

Homelite GP023891

Handle - Upper

$

$

Currently unavailable

2

Homelite JA994739

Handle - lower

$

$

Currently unavailable

3

Homelite GP053107

Control - throttle w/cable

$

$

Currently unavailable

4

Homelite GP053108

Cable - engine/blade control

$

$

Currently unavailable

5

Homelite JA994274

Cable Tie

$

$

Not available

6

Homelite GP115540

Wing Nut - plastic

$

$

Currently unavailable

7

Homelite GP150201

Washer - 5/16 curved

$2.49

$

Usually ships in 3-7 days

0

8

Homelite 80085

Bolt - hex 5/16-18 x 1

$1.49

$

Usually ships in 3-7 days

0

9

Homelite GP158097

Screw - 1/4-20 x 5/8 hex tap

$

$

Currently unavailable

10

Homelite JA994888

Cover - cable

$

$

Currently unavailable

11

Homelite GP073616

Bail - engine/blade control

$

$

Currently unavailable

12

Homelite GP152371

Eyebolt - rope guide

$

$

Currently unavailable

13

Homelite GP715037

Nut - hex 1/4-20 keps

$

$

Currently unavailable

14

Homelite GP616094

Bolt - hex 1/4-20 x 2 1/2

$

$

Currently unavailable

15

Washer - flat 1/4

Note: Not Used On This Model.

$

$

Not available

16

Homelite JA994310

Clamp - engine control cable

$

$

Currently unavailable

17

Homelite JA994739

Stub - handle mounting

$

$

Currently unavailable

18

Homelite JA994795

Plug - stub end

$

$

Currently unavailable

19

Homelite JA445775

Nut - hex 5/16-18 flnge lock
(Superseded to UP06674)

$

$

Not available

20

Homelite GP151936

Bolt - handle, curved head

$

$

Currently unavailable

21

Homelite 04106

Decal - Starting Instructions

$

$

Currently unavailable

22

Bail - ground drive control

Note: Not Used On This Model.

$

$

Not available

23

Cable - drive control

Note: Not Used On This Model.

$

$

Not available

24

Bushing - control bail

Note: Not Used On This Model.

$

$

Not available

25

Sleeve - control bail

Note: Not Used On This Model.

$

$

Not available
