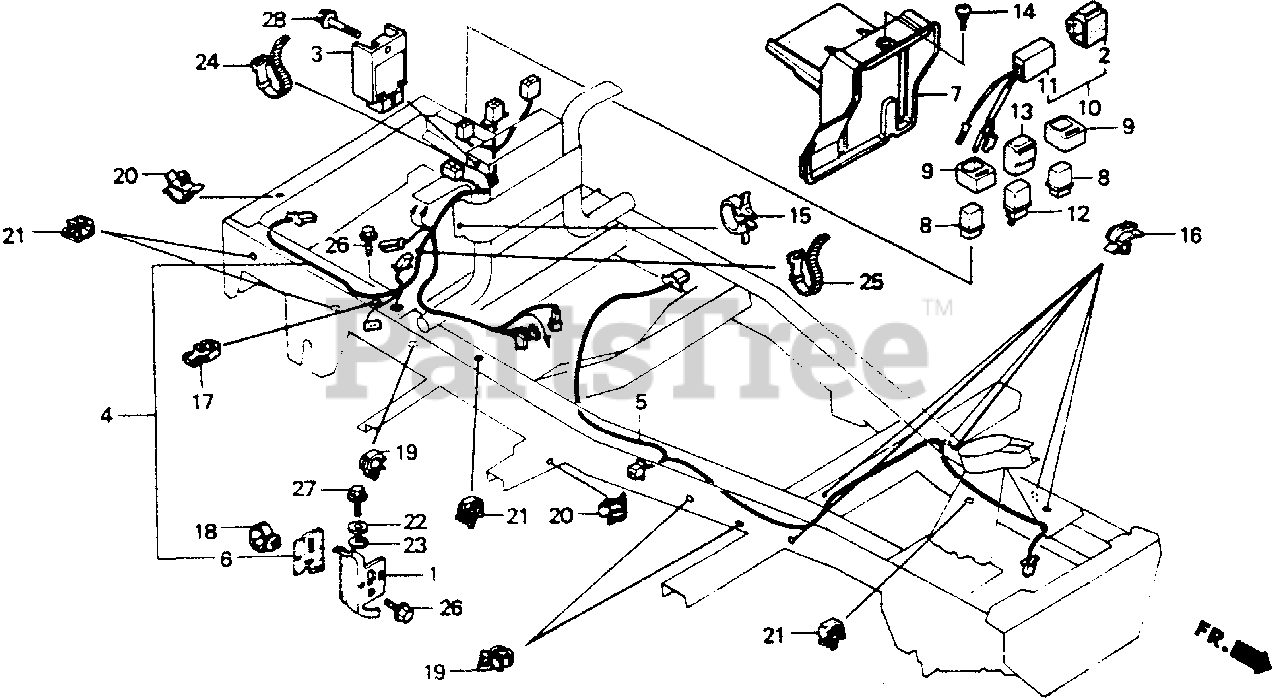

HT-R3811 SA (MABT) - Honda Riding Mower, Made in Japan (SN: MABT-5000001 - MABT-9999999) HARNESS Parts Diagram

Riding Mower, Made in Japan

HARNESS Parts Diagram

  • Title

1

Honda 24145-751-000

STAY, CHANGE MOUNTING

$

$

Not available

2

Honda 30401-GB6-000

RUBBER, IGNITION CONTROL MODULE

$7.49

$

Usually ships in 3-6 days

0

3

Honda 31710-751-003

DIODE ASSY. (NOT AVAILABLE)

$

$

Not available

4

Honda 32100-751-700

WIRE HARNESS ASSY., MAIN (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 32110-751-030

SUB-WIRE HARNESS ASSY., FR.

$

$

Not available

6

Honda 32302-751-000

HOLDER, CONNECTOR

$

$

Not available

7

Honda 32451-751-003

COVER, ELECTRIC PARTS

$

$

Not available

8

Honda 38350-762-003

SEE PART DETAILS - PRI; RELAY ASSY., CONTROL (10A)

$51.99

$

Usually ships in 3-6 days

0

8

Honda 38351-750-003

SEE PART DETAILS - SUP; RELAY, CONTROL
(Superseded to 38350-762-003)

$51.99

$

Usually ships in 3-6 days

0

9

Honda 38356-750-003

SUSPENSION, CONTROL RELAY

$

$

Currently unavailable

10

Honda 38415-751-701

CONTROL UNIT ASSY., BUZZER (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 38416-751-701

CONTROL UNIT, BUZZER (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 38501-GF4-701

RELAY, STARTER

$

$

Not available

12

Honda 38501-751-701

RELAY, STARTER (TATEISHI)

$

$

Not available

13

Honda 38506-GJ2-004

SUSPENSION, STARTER RELAY (MITSUBA)

$

$

Not available

13

Honda 38506-751-701

SUSPENSION, STARTER RELAY (TATEISHI)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90380-MB2-000

SCREW, SPECIAL (6X8)

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90628-SB0-003

CLIP, HARNESS

$

$

Not available

16

Honda 90673-GJ5-003

CLIP, CORD

$4.99

$

Usually ships in 3-6 days

0

17

Honda 90678-ZA0-601

CLIP, HARNESS (5MM-15MM) (BLACK)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

19

Honda 90684-ZA0-601

CLIP, HARNESS

$4.99

$

Usually ships in 3-6 days

0

20

Honda 32171-GJ1-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

21

Honda 91505-ZA0-601

CLIP, HARNESS (7MM)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

24

Honda 95014-62100

BAND B1, WIRE

$1.99

$

Usually ships in 3-6 days

0

25

Honda 95014-62200

BAND B2, CABLE HARNESS

$2.49

$

Usually ships in 3-6 days

0

26

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

27

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95700-06018-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)

$

$

Currently unavailable

28

Honda 95701-06018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0
