HUV 4210 GXP - Husqvarna 4x2 Utility Vehicle (2008-04) ENGINE Parts Diagram

4x2 Utility Vehicle

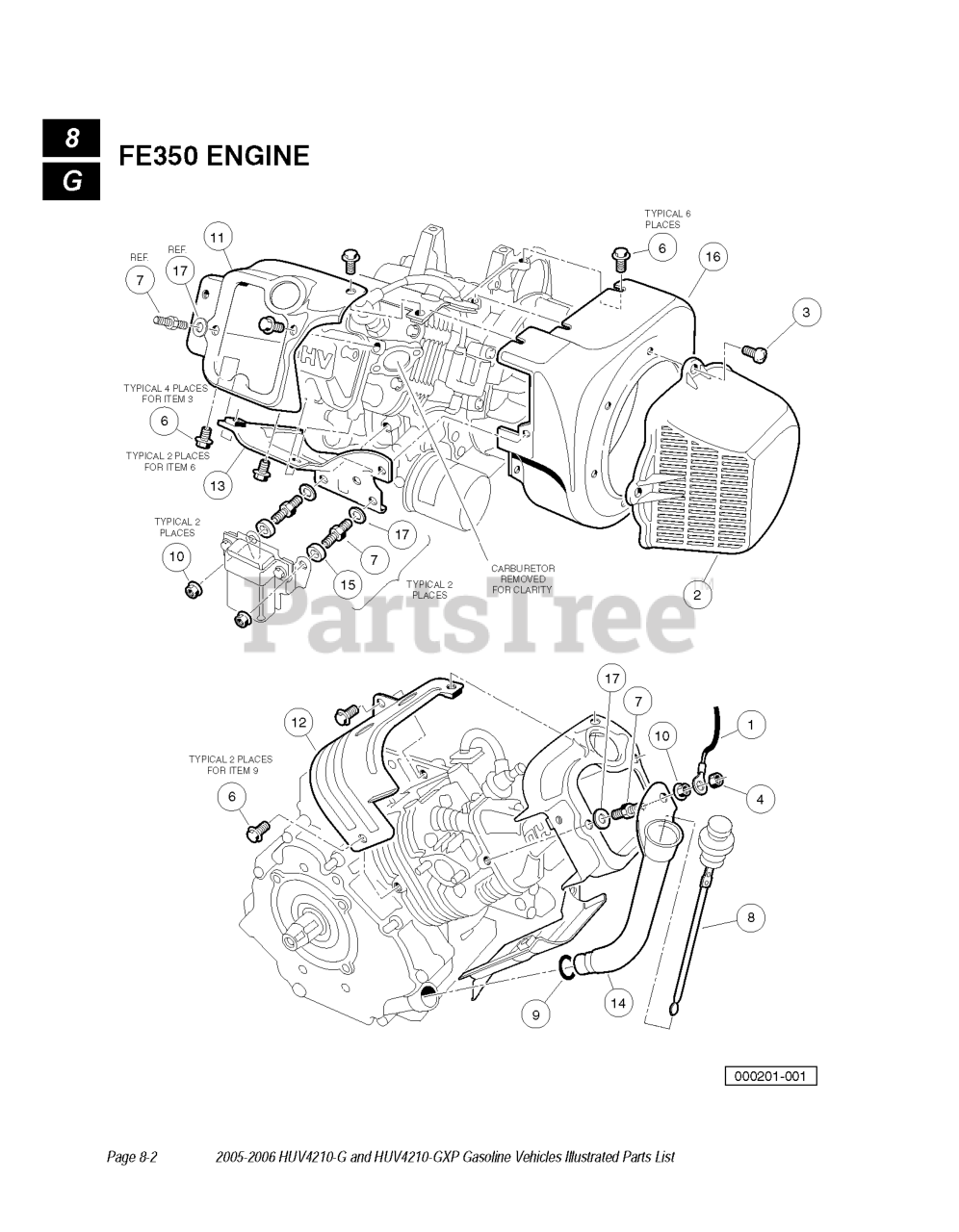

ENGINE Parts Diagram

  • Title

16

Husqvarna 603003230

HOUSING, FE350 FAN

$

$

Not available

9

Husqvarna 603000337

O-RING

$

$

Not available

8

Husqvarna 603000333

DIPSTICK

$

$

Not available

5

Husqvarna 603003238

ENGINE, FE350 (CW) W/O CR

Note: "6, 7, 8-17"

$

$

Not available

7

Husqvarna 603000328

BOLT

$

$

Not available

1

Husqvarna 603000247

WIRE ASM

Note: UNINSULATED

$

$

Not available

11

Husqvarna 603000414

SHROUD ENGINE

$

$

Not available

15

Husqvarna 603000420

SPACER 6.50 X 12 X 5.5

$

$

Not available

6

Husqvarna 603000309

BOLT, FLANGED

$

$

Not available

3

Husqvarna 603000274

SCREW, M6-1.00 X 10MM PAN HD

$

$

Not available

14

Husqvarna 603000417

OIL FILLER TUBE

$

$

Not available

10

Husqvarna 603000341

NUT

$

$

Not available

13

Husqvarna 603000416

SHROUD ENGINE

$

$

Not available

4

Husqvarna 603000558

LOCKNUT, M6-1.00 NYLON INSERT

$

$

Not available

12

Husqvarna 603000415

SHROUD - ENGINE

$

$

Not available

2

Husqvarna 603000265

SHROUD, FAN

$

$

Not available
