HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) CAMSHAFT AND IDLE GEAR Parts Diagram

4x4 Utility Vehicle, Diesel

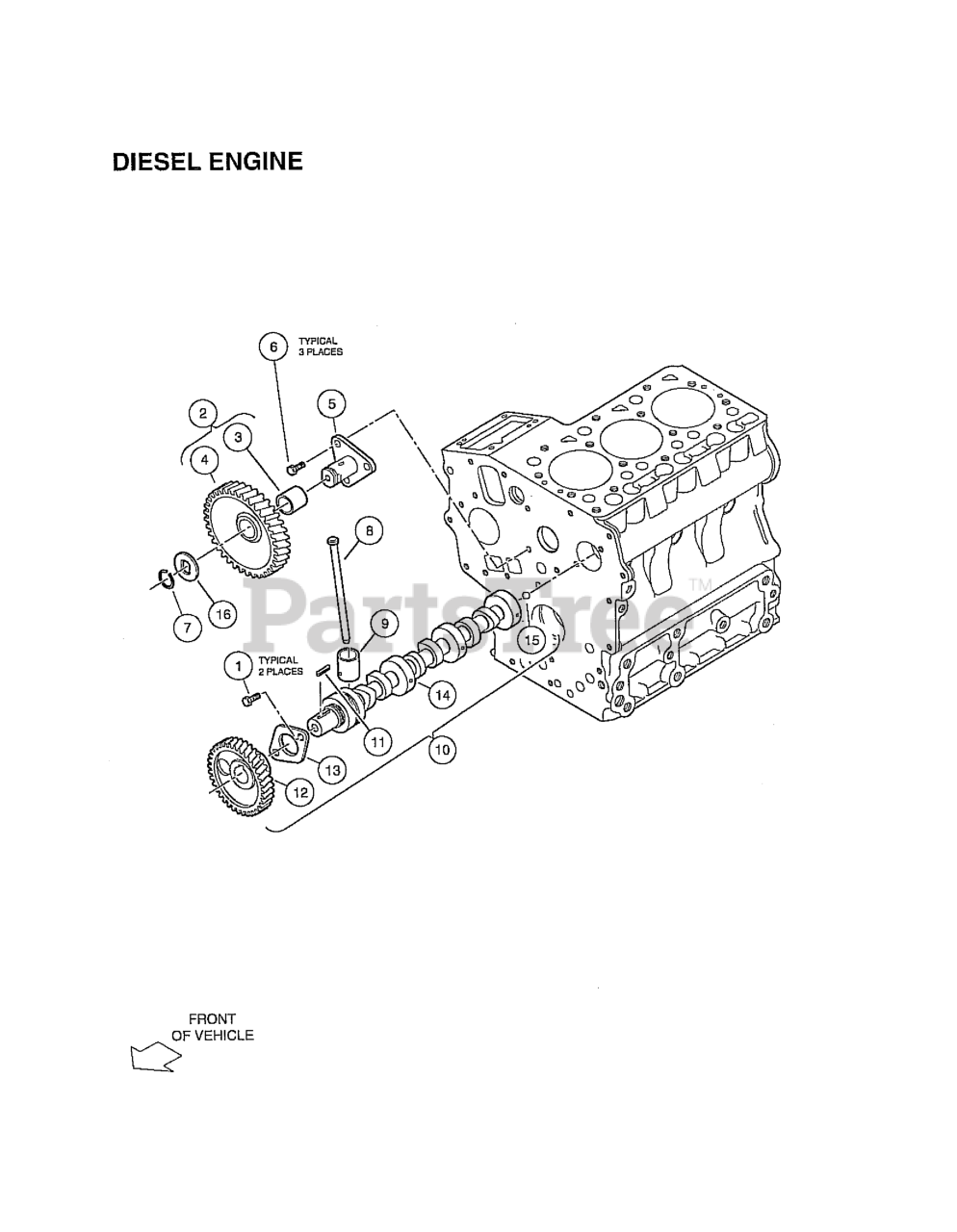

CAMSHAFT AND IDLE GEAR Parts Diagram

  • Title

1

Husqvarna 603001228

BOLT, D722, CAM END

$

$

Not available

7

Husqvarna 603001237

RING, SNAP

$

$

Not available

2

Husqvarna 603001234

COMP, GEAR, IDLE

$

$

Not available

8

Husqvarna 603001238

PUSH ROD

$

$

Not available

3

Husqvarna 603001221

NEEDS DESCRIPTION

$

$

Not available

12

Husqvarna 603001243

GEAR, CAM

$

$

Not available

10

Husqvarna 603001242

ASSY CAMSHAFT, LONG

$

$

Not available

16

Husqvarna 603001457

COLLAR, IDLE GEAR

$

$

Not available

13

Husqvarna 603001244

STOPPER, CAMSHAFT

$

$

Not available

5

Husqvarna 603001235

SHAFT, IDLE GEAR

$

$

Not available

15

Husqvarna 603001814

BALL-CHECK

$

$

Not available

9

Husqvarna 603001239

TAPPET

$

$

Not available

6

Husqvarna 603001236

BOLT, M6 X 1 X 14

$

$

Not available
