HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) IGNITION SYSTEM Parts Diagram

4x4 Utility Vehicle, Diesel

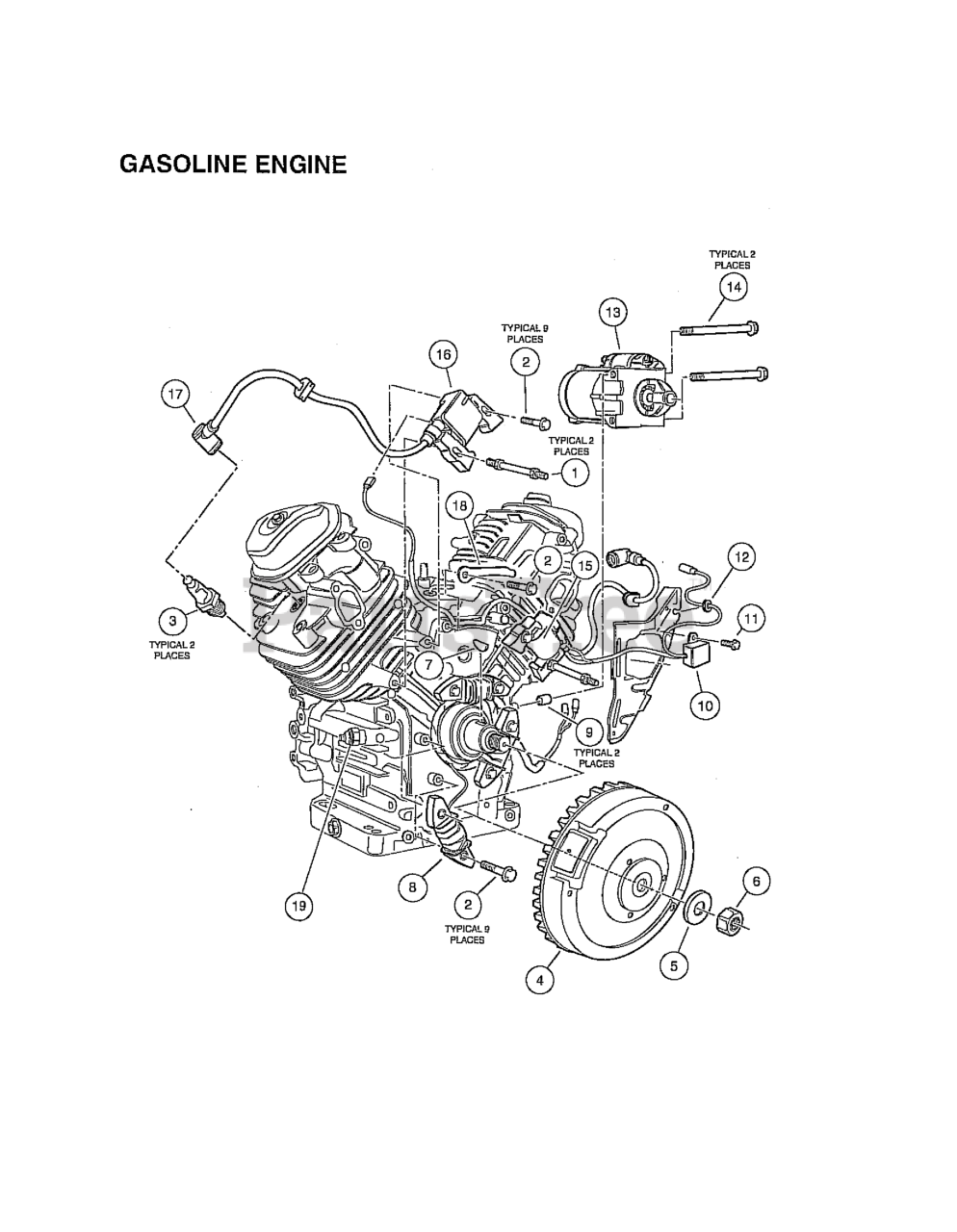

IGNITION SYSTEM Parts Diagram

  • Title

14

Husqvarna 603001565

BOLT, FLANGE, M8 X 1.25 X 110

$

$

Not available

15

Husqvarna 603001566

COIL ASSY, R, IGNITION

$

$

Not available

7

Husqvarna 603001558

KEY, SPECIAL WOODRUFF, 25 X 18

$

$

Not available

5

Husqvarna 603001556

WASHER, M20

$

$

Not available

1

Husqvarna 603001462

STUD, ENGINE

$

$

Not available

18

Husqvarna 603001582

CLAMP, WIRE

$

$

Not available

3

Husqvarna 603000039

SPARK PLUG, BPR2ES,NGK
(Superseded to 603003770)

$3.49

$

In Stock, Qty 5

0

11

Husqvarna 603001562

BOLT, FLANGE, M6 X 1 X 8

$

$

Not available

6

Husqvarna 603001557

NUT, FLANGE, M20

$

$

Not available

10

Husqvarna 603001561

DIODE ASSY, ENGINE STOP

$

$

Not available

4

Husqvarna 603001555

FLYWHEEL

$

$

Not available

13

Husqvarna 603001564

MOTOR ASSY, STARTER

$

$

Not available

12

Husqvarna 603001563

GROMMET, TOOL

$

$

Not available

9

Husqvarna 603001560

PIN, DOWEL, 10 X 12

$

$

Not available

16

Husqvarna 603001567

COIL ASSY, L, IGNITION

$

$

Not available

8

Husqvarna 603001559

COIL ASSY, CHARGE, 12V/20A

$

$

Not available

2

Husqvarna 603001532

BOLT, FLANGE, M6 X 1 X 32

$

$

Not available
