HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) PEDALS Parts Diagram

4x4 Utility Vehicle, Diesel

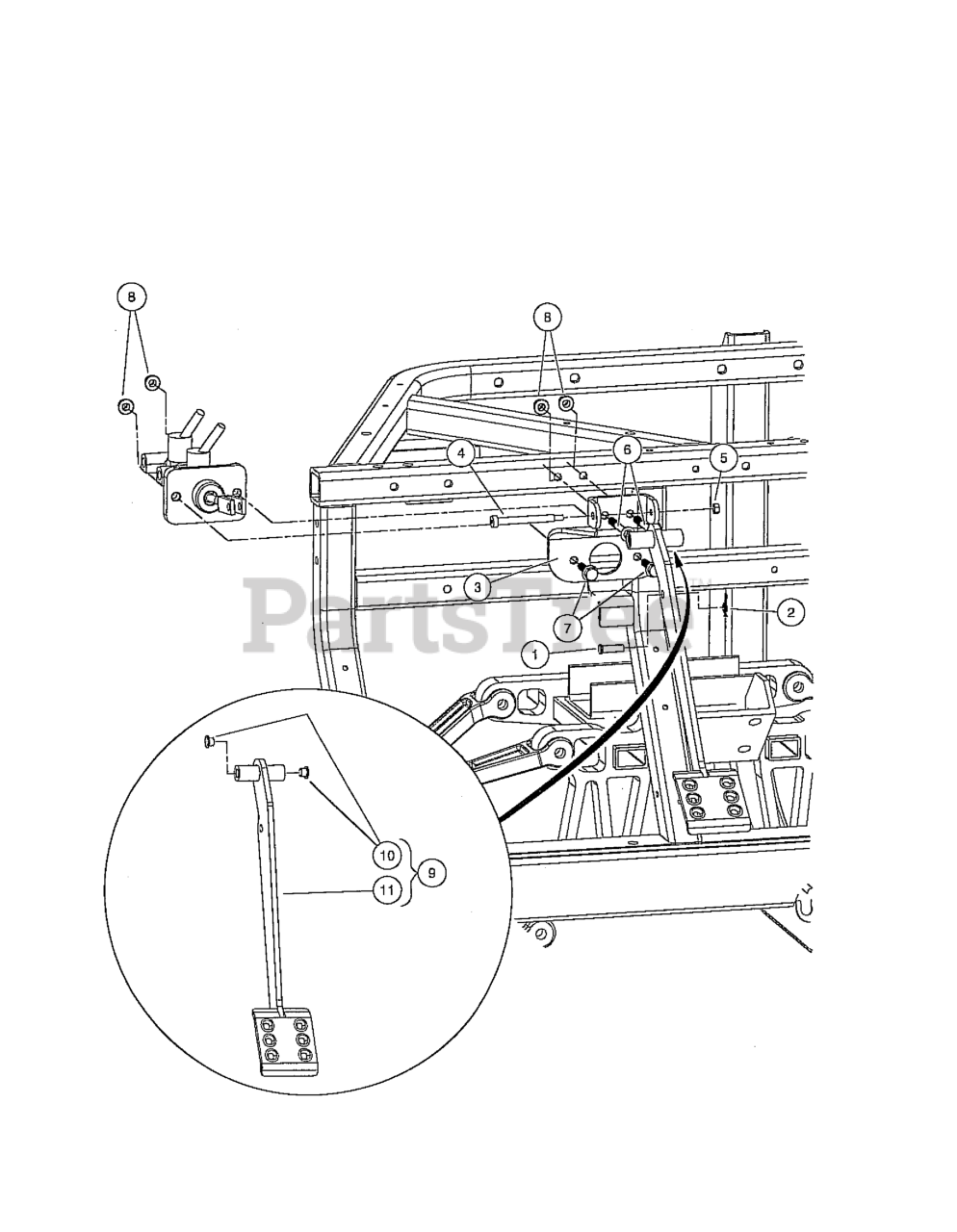

PEDALS Parts Diagram

  • Title

10

Husqvarna 603001055

BUSHING, GREASELESS

$

$

Not available

4

Husqvarna 603001146

BOLT, SHOULDER, M8 X 70
(Superseded to 603003840)

$

$

Not available

7

Husqvarna 603001307

BOLT FLG, M8X1.25X35

$

$

Not available

1

Husqvarna 603000454

CLEVIS PIN, 5/16 X 1

$

$

Not available

3

Husqvarna 603000935

BRACKET, PEDAL, BRAKE

$

$

Not available

2

Husqvarna 603000798

PIN, RUE

$

$

Not available

11

Husqvarna 603001322

WELDMENT, PEDAL, BRAKE, HUNG

$

$

Not available

5

Husqvarna 603001305

NUT M6X1 MECH DEF CENTER

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 603001308

LOCK NUT, FLG M8 X 1.25 NYLON

$

$

Not available

6

Husqvarna 603001306

BOLT FLG, M8X1.25X65

$

$

Not available
