HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2005-02) REAR BRAKE ASSEMBLY Parts Diagram

4x4 Utility Vehicle, Diesel

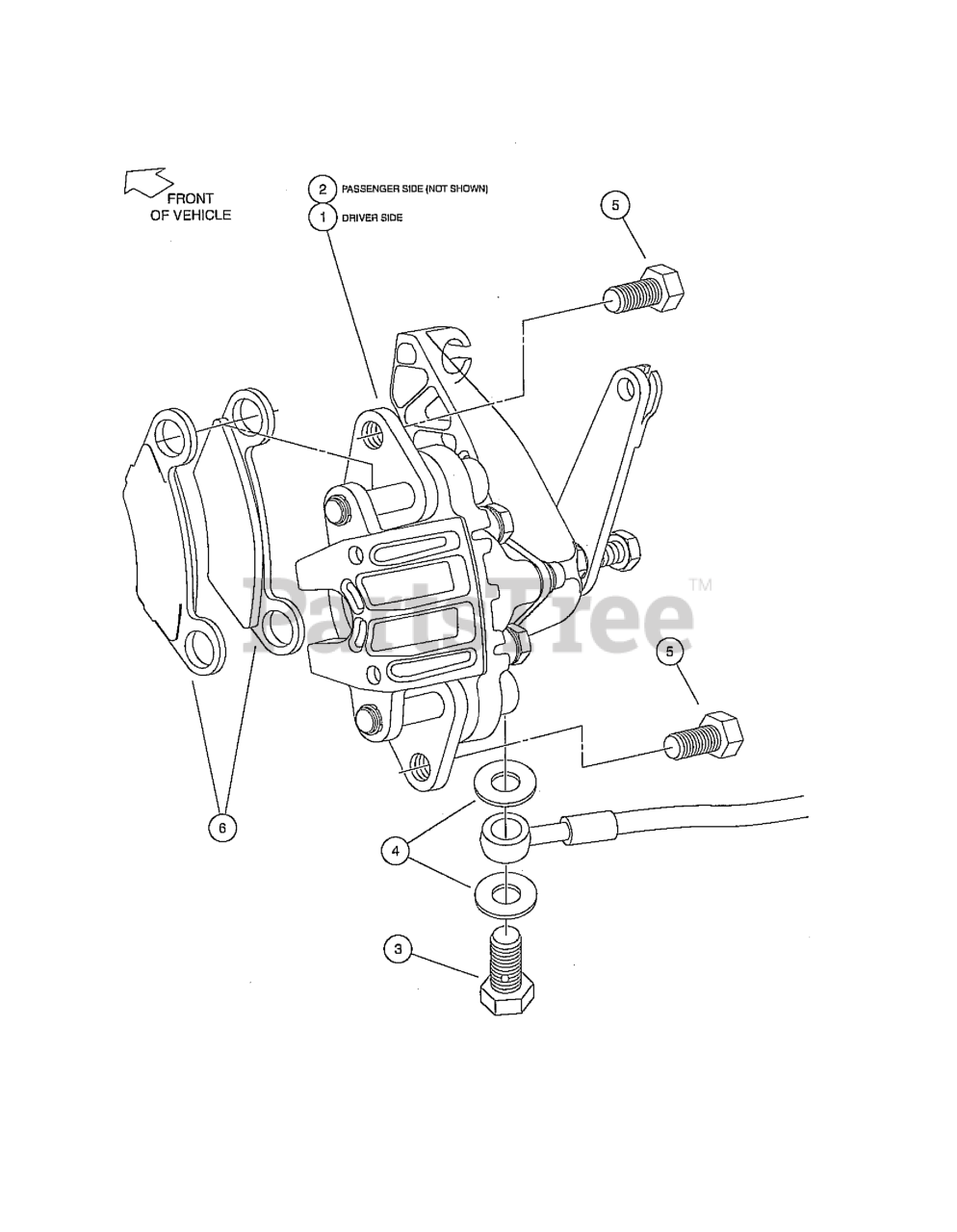

REAR BRAKE ASSEMBLY Parts Diagram

  • Title

3

Husqvarna 603001162

BOLT, BANJO, M10X1X19

$

$

Not available

1

Husqvarna 603000945

CALIPER, BRAKE, HYDRO-MECH, LH
(Superseded to 589260301)

$

$

Not available

5

Husqvarna 603001183

BOLT FLG, 3/8-24X.750 LOCTITE

$

$

Not available

4

Husqvarna 603001175

WASHER COPPER, M10 CRUSH

$

$

Not available

6

Husqvarna 603001670

SERVICE KIT, BRAKE PAD

$

$

Not available

2

Husqvarna 603000946

CALIPER, BRAKE, HYDRO-MECH, RH

$

$

Not available
