HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) CRANKSHAFT Parts Diagram

4x4 Utility Vehicle, Diesel

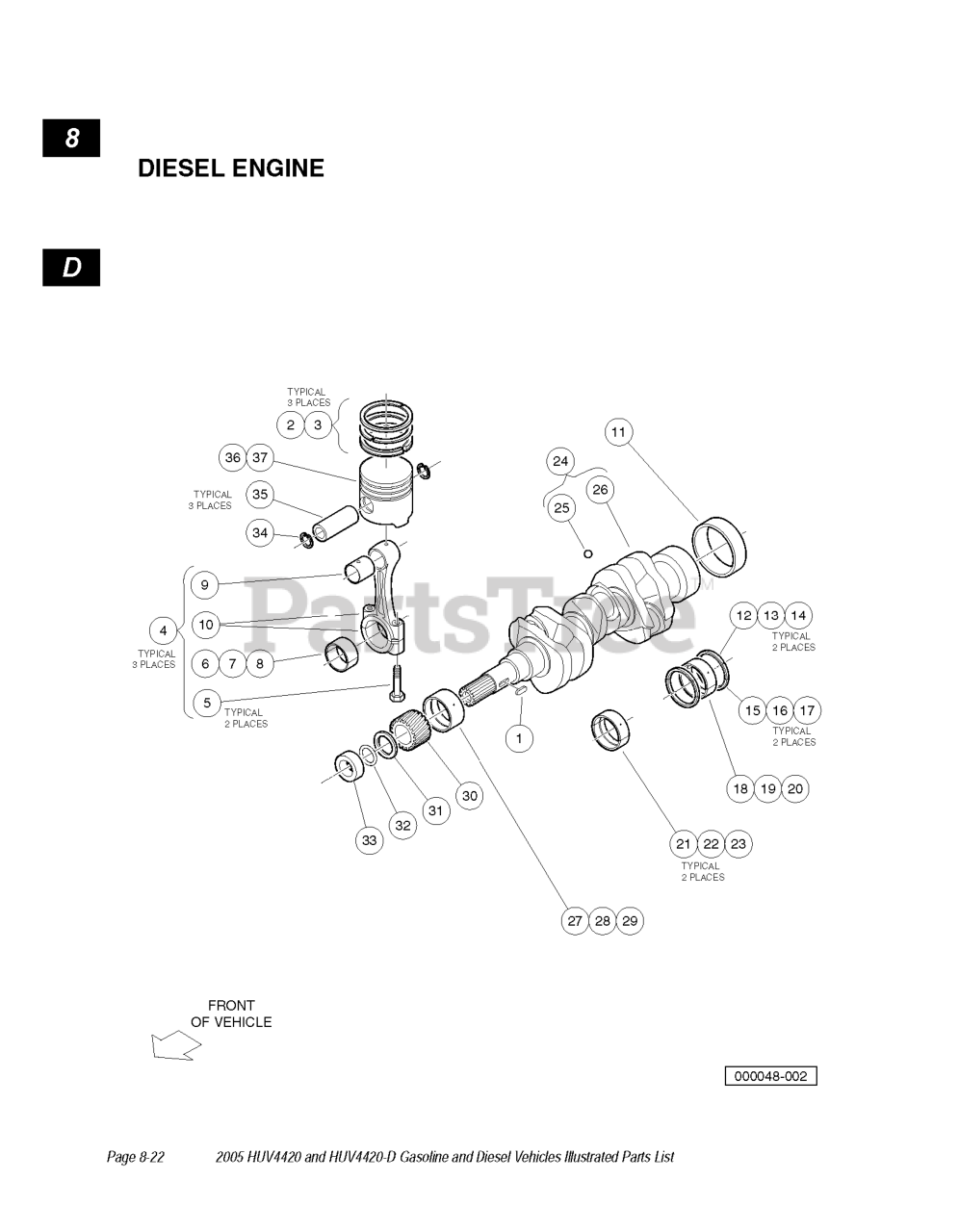

CRANKSHAFT Parts Diagram

  • Title

27

Husqvarna 603001328

METAL, CRANK, D722, FRNT, STD

$

$

Not available

14

Husqvarna 603001270

METAL, CRANK, 0 SIDE, +.040

$

$

Not available

11

Husqvarna 603001261

SLEEVE, CRANKSHAFT

$

$

Not available

30

Husqvarna 603001331

GEAR, CRANK

$

$

Not available

32

Husqvarna 603001333

O RING, 23X26

$

$

Not available

21

Husqvarna 603001282

METAL, CRANK, MAIN, MID STD

$

$

Not available

19

Husqvarna 603001276

METAL, CRANK, MAIN, REAR-.020

$

$

Not available

9

Husqvarna 603001758

BUSHING, PISTON PIN, D722

$

$

Not available

5

Husqvarna 603001259

BOLT, CONNECTING ROD

$

$

Not available

36

Husqvarna 603001719

PISTON, D722, STD

$

$

Not available

4

Husqvarna 603001258

ASSY, CONNECTING ROD

$

$

Not available

24

Husqvarna 603001285

COMP, CRANKSHAFT

$

$

Not available

2

Husqvarna 603001256

ASSY PISTON RING, D722 STD

$

$

Not available

16

Husqvarna 603001272

METAL, CRANK, 1 SIDE, +.020

$

$

Not available

12

Husqvarna 603001268

METAL, CRANK, 0 SIDE, STD

$

$

Not available

17

Husqvarna 603001273

METAL, CRANK, I SIDE, +.040

$

$

Not available

29

Husqvarna 603001330

METAL, CRANK, 722, FRNT, -.040

$

$

Not available

25

Husqvarna 603001260

BALL, CRANKSHAFT

$

$

Not available

33

Husqvarna 603001334

COLLAR, CRANKSHAFT

$

$

Not available

37

Husqvarna 603001720

PISTON, D722, +0.25

$

$

Not available

34

Husqvarna 603001339

CIRCLIP, PISTON PIN

$

$

Not available

6

Husqvarna 603001336

METAL, CRANK, ROD, D722, STD

$

$

Not available

31

Husqvarna 603001332

SLINGER, OIL

$

$

Not available

20

Husqvarna 603001277

METAL, CRANK, MAIN, REAR-.040

$

$

Not available

22

Husqvarna 603001283

METAL, CRANK, MAIN, MID+.020

$

$

Not available

15

Husqvarna 603001271

METAL, CRANK, 1 SIDE, STD

$

$

Not available

7

Husqvarna 603001337

METAL, CRANK, ROD, D722, .020

$

$

Not available

23

Husqvarna 603001284

METAL, CRANK, MAIN, MID+.040

$

$

Not available

8

Husqvarna 603001338

METAL, CRANK, ROD, D722, .040

$

$

Not available

18

Husqvarna 603001275

METAL, CRANK, MAIN, REAR STD

$

$

Not available

13

Husqvarna 603001269

METAL, CRANK, 0 SIDE + .020

$

$

Not available

3

Husqvarna 603001257

ASSY PISTON RING, D722 + .025

$

$

Not available

35

Husqvarna 603001340

PIN, PISTON

$

$

Not available

1

Husqvarna 603001230

KEY, FEATHER, SHORT CAMSHAFT

$

$

Not available

28

Husqvarna 603001329

METAL, CRANK, 722, FRNT, -.020

$

$

Not available
