HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) DRIVEN CLUTCH Parts Diagram

4x4 Utility Vehicle, Diesel

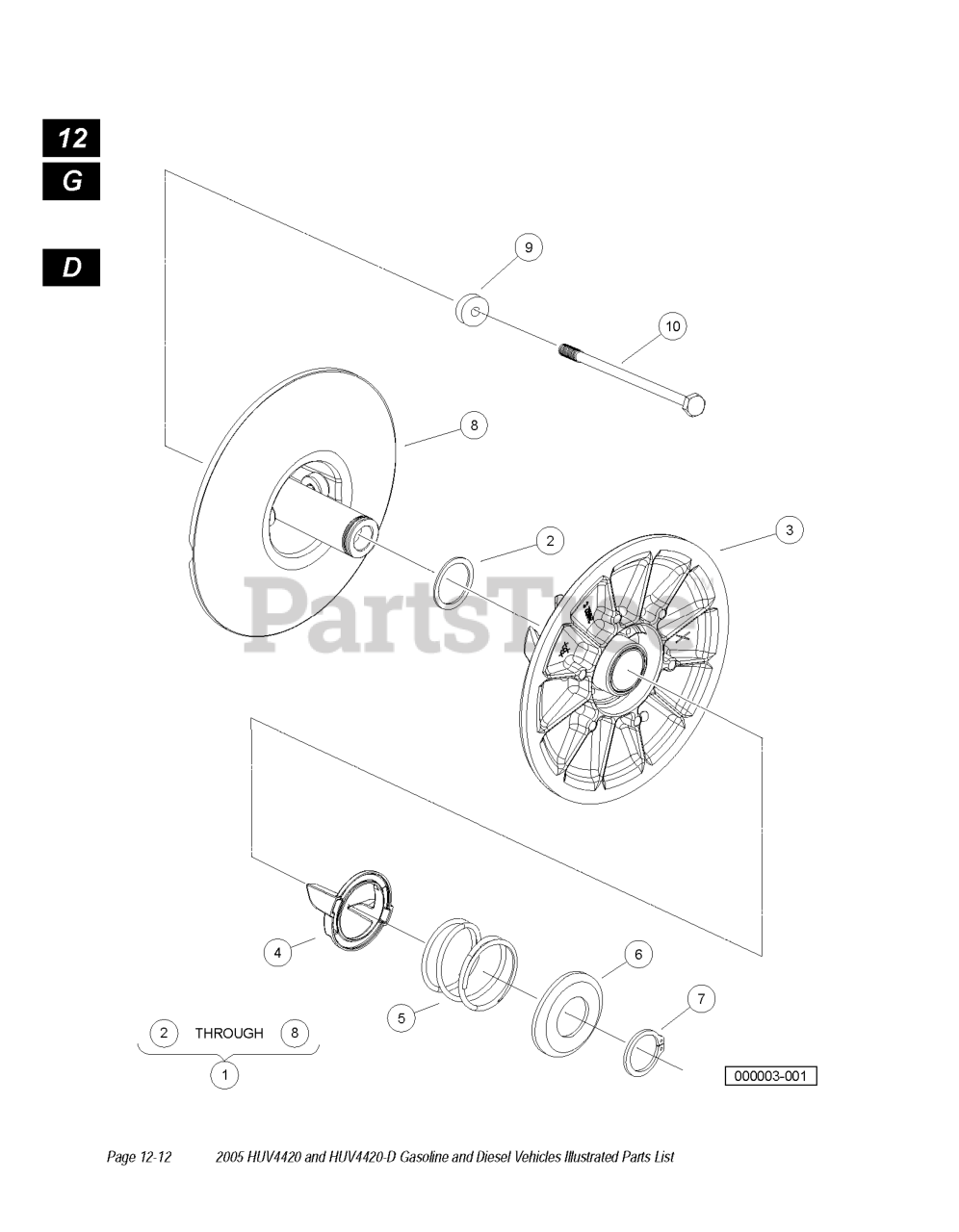

DRIVEN CLUTCH Parts Diagram

  • Title

4

Husqvarna 603001636

RETAINER, SPRING, INNER

$

$

Not available

6

Husqvarna 603001638

RETAINER, SPRING, OUTER

$

$

Not available

1

Husqvarna 603000906

CVT, SECONDARY

$

$

Not available

9

Husqvarna 603000939

WASHER, STEPPED, CVT SECONDARY

$

$

Not available

5

Husqvarna 603001637

SPRING, COMPRESSION, SECONDARY

$

$

Not available

10

Husqvarna 603001169

BOLT, M10 X 1.5 X 100 LOCTITE

$

$

Not available

2

Husqvarna 603001635

WASHER, THRUST, 1.53 X 1.92

$

$

Not available

7

Husqvarna 603001639

RING, RETAINING, EXTERNAL

$

$

Not available
