HUV 4420 D - Husqvarna 4x4 Utility Vehicle, Diesel (2008-03) ELECTRICAL Parts Diagram

4x4 Utility Vehicle, Diesel

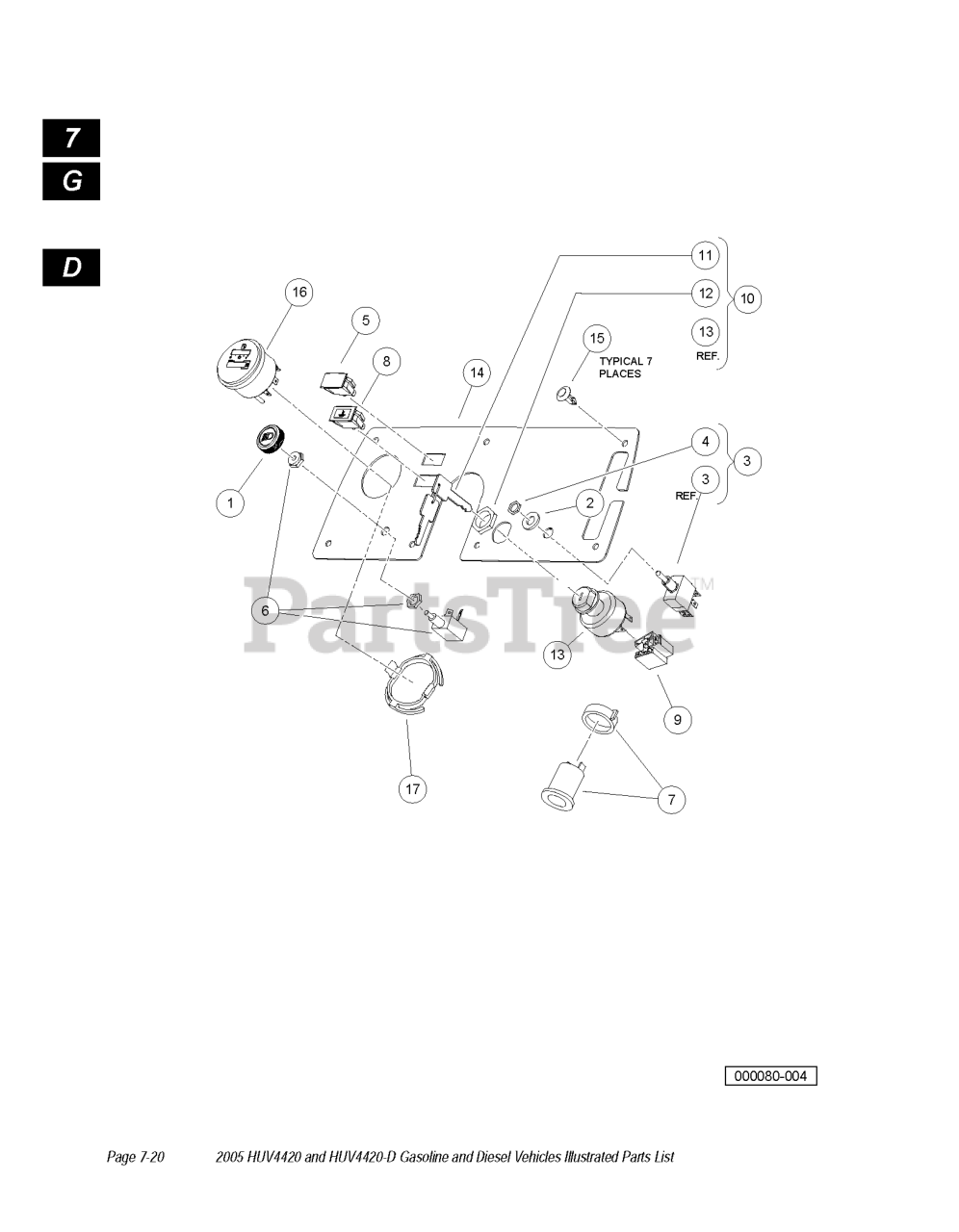

ELECTRICAL Parts Diagram

  • Title

15

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

2

Husqvarna 603000272

WASHER, 7/16 FLAT

$

$

Not available

3

Husqvarna 603000493

TOGGLE SWITCH

$

$

Not available

10

Husqvarna 603001097

KEYSWITCH, DIESEL

$

$

Not available

11

Husqvarna 603001754

KEY SET, AWD DIESEL

Note: 1 PAIR

$

$

Not available

7

Husqvarna 603000801

ACCESSORY RECEPTACLE

$

$

Not available

14

Husqvarna 603000921

PANEL, INSTRUMENT, DIESEL

$

$

Not available

1

Husqvarna 603000191

LIGHT SWITCH KNOB

$

$

Not available

17

Husqvarna 603004169

CLIP METER ROUND

$

$

Not available

6

Husqvarna 603000762

SWITCH, LIGHT

$

$

Not available

16

Husqvarna 603004168

GAUGE FUEL-HOUR SEP GND

$

$

Not available

8

Husqvarna 603000922

2IGHT, INDICATOR, COLLANT TEMP

$

$

Not available

5

Husqvarna 603000366

LIGHT, OIL

$

$

Not available
