HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Camshaft and Idle Gear Parts Diagram

4x4 Utility Vehicle

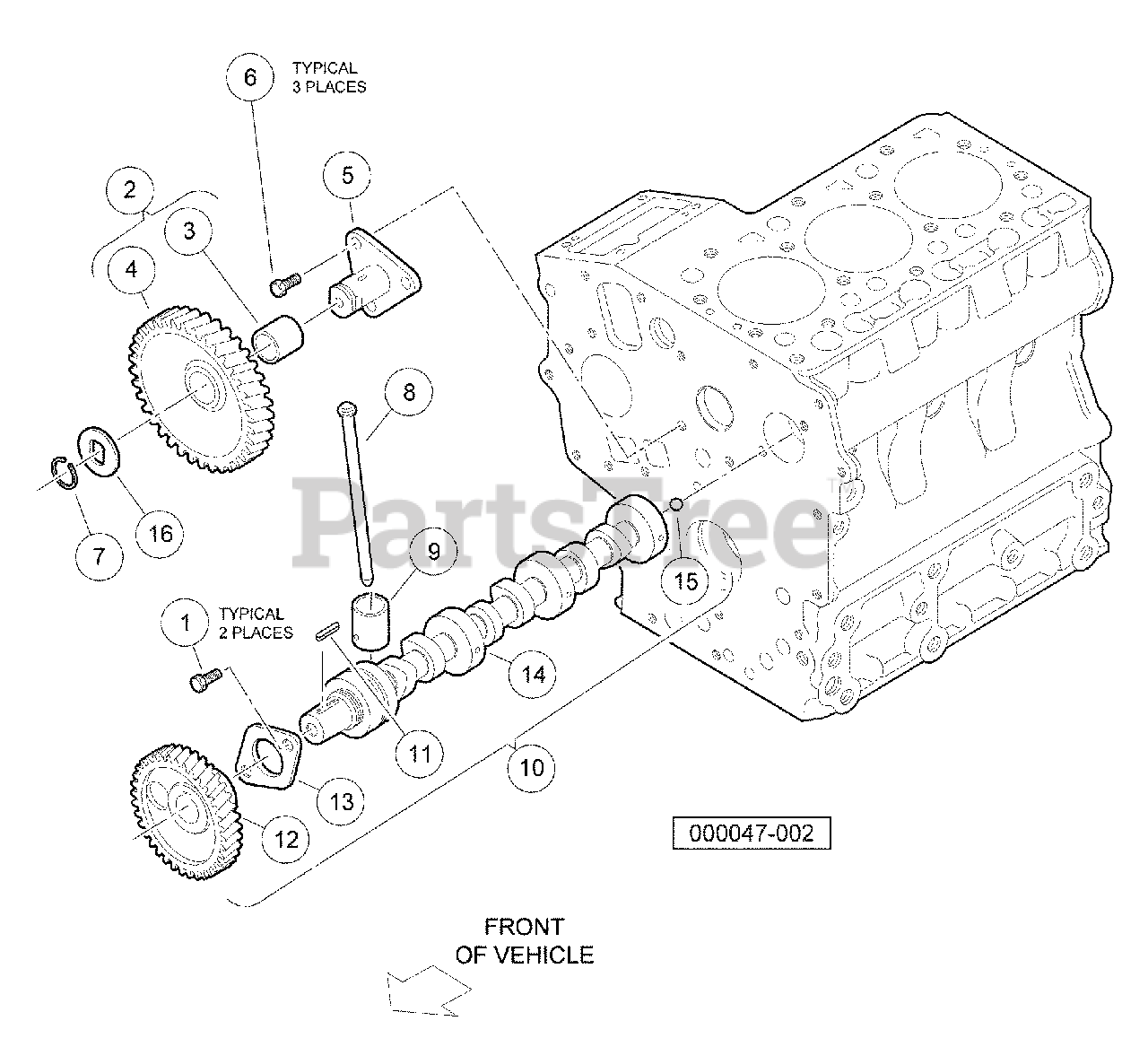

Camshaft and Idle Gear Parts Diagram

  • Title

1

Husqvarna 603001228

Bolt, D722, Cam End

$

$

Not available

2

Husqvarna 603001234

Gear, Idle

Note: (includes items 3 and 4)

$

$

Not available

3

Bushing, D722 Idle Gear

$

$

Not available

4

Gear, Idle

$

$

Not available

5

Husqvarna 603001235

Shaft, Idle Gear

$

$

Not available

6

Husqvarna 603001236

Bolt, M6 X 1 X 14

$

$

Not available

7

Husqvarna 603001237

Ring, Snap

$

$

Not available

8

Husqvarna 603001238

Push Rod

$

$

Not available

9

Husqvarna 603001239

Tappet

$

$

Not available

10

Husqvarna 603001242

Assy Camshaft, Long

Note: (includes items 11 through 15)

$

$

Not available

11

Husqvarna 603001240

Key, Feather, Long Camshaft

$

$

Not available

12

Husqvarna 603001243

Gear, Cam

$

$

Not available

13

Husqvarna 603001244

Stopper, Camshaft

$

$

Not available

14

Camshaft

$

$

Not available

15

Husqvarna 603001814

Ball, Check

$

$

Not available

16

Husqvarna 603001457

Collar, Idle Gear

$

$

Not available
