HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Coolant Pipes and Hoses Parts Diagram

4x4 Utility Vehicle

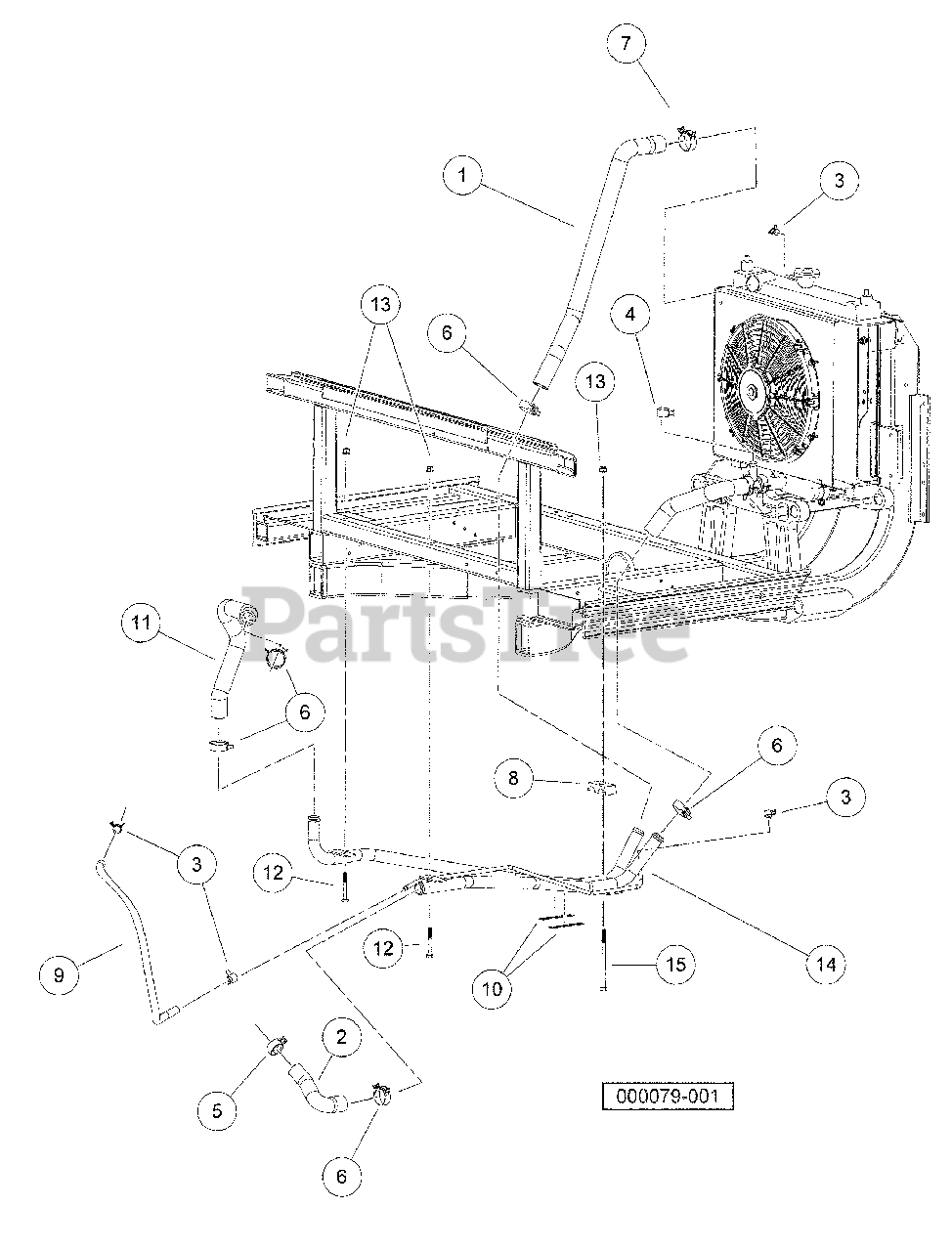

Coolant Pipes and Hoses Parts Diagram

  • Title

1

Husqvarna 603000927

Hose, Coolant Upper Rad

$

$

Not available

2

Husqvarna 603000928

Hose, Coolant Lower Eng

$

$

Not available

3

Husqvarna 603000970

Clamp, Hose, CTB 15mm

$

$

Not available

4

Husqvarna 603000971

Clamp, Hose, CTB 22mm

$

$

Not available

5

Husqvarna 603000972

Clamp, Hose, Ctb 30mm

$

$

Not available

6

Husqvarna 603000973

Clamp, Hose, Ctb 35mm

$

$

Not available

7

Husqvarna 603000974

Clamp, Hose, Ctb 38mm

$

$

Not available

8

Husqvarna 603001003

Clamp, Bar

$

$

Not available

9

Husqvarna 603001016

Hose, Vent Tube To Eng, Coolnt

$

$

Not available

10

Husqvarna 603001102

Decal, Hot Surface Warning

$

$

Not available

11

Husqvarna 603001155

Hose, Coolant, Return, Engine

$

$

Not available

12

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

13

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

14

Husqvarna 603001326

Weldment, Group, Coolant Pipe

Note: (includes items 15 through 19)

$

$

Not available

15

Pipe, Coolant Upper

$

$

Not available

16

Pipe, Coolant Lower

$

$

Not available

17

Tab, Rear Mntg, Coolant Pipe

$

$

Not available

18

Pipe, Vent, Coolant

$

$

Not available

19

Tab, Cooling Pipe Mount

$

$

Not available

20

Husqvarna 603000453

Bolt, M8 X 1.25 X 130

$

$

Not available
