HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Nozzle Holders and Glow Plugs Parts Diagram

4x4 Utility Vehicle

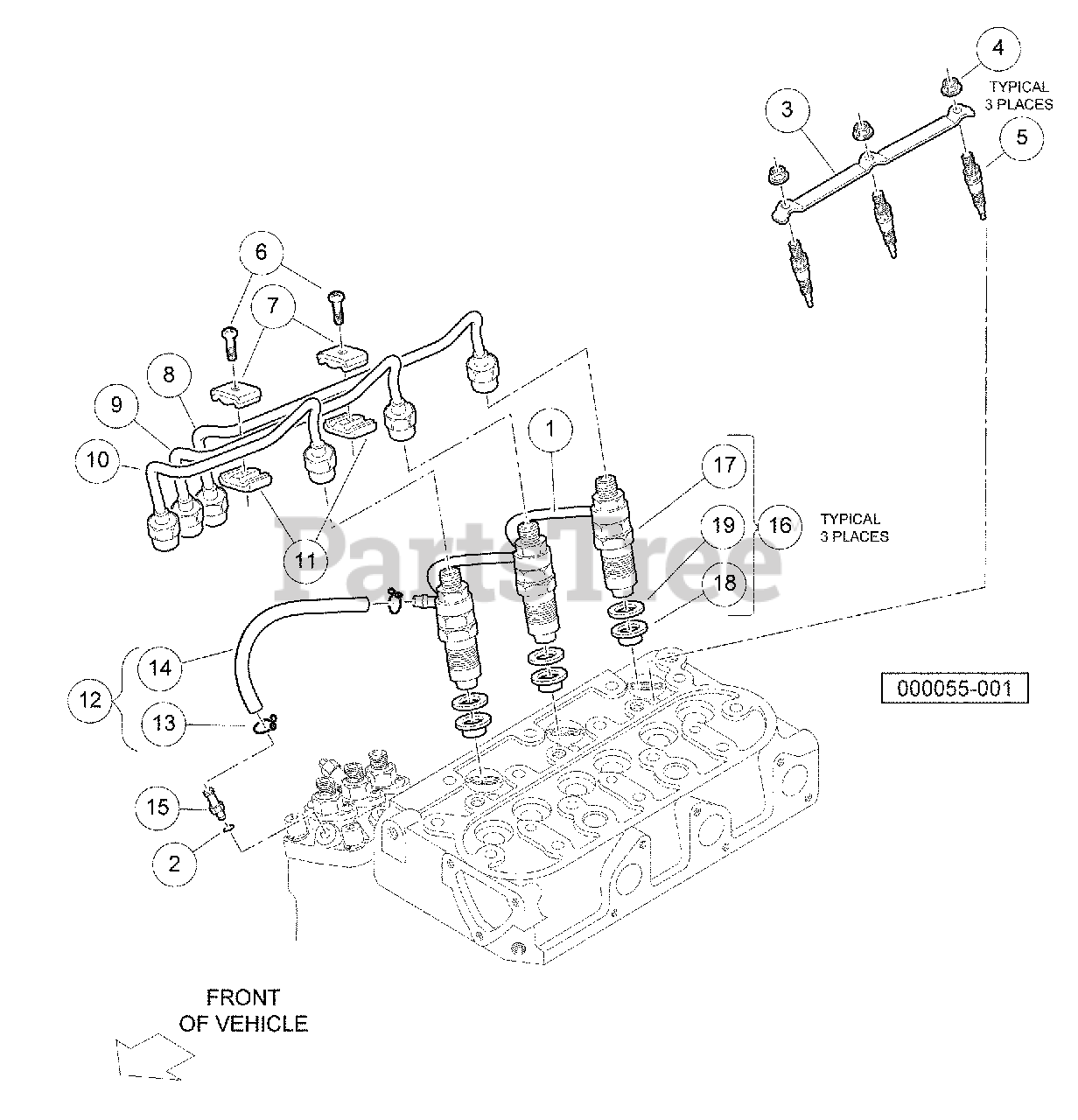

Nozzle Holders and Glow Plugs Parts Diagram

  • Title

1

Husqvarna 603001241

Assy Pipe, D722 Fuel Over Flow

$

$

Not available

2

Husqvarna 603001369

Gasket, 6 X 10

$

$

Not available

3

Husqvarna 603001393

Cord, Glow Plug

$

$

Not available

4

Husqvarna 603001394

Nut, Flange,m4

$

$

Not available

5

Husqvarna 603001395

Glow Plug

$

$

Not available

6

Husqvarna 603001397

Screw, Washer

$

$

Not available

7

Husqvarna 603001398

Clamp, Pipe, Top

$

$

Not available

8

Husqvarna 603001399

Pipe, Injection, Left

$

$

Not available

9

Husqvarna 603001400

Pipe, Injection, Right

$

$

Not available

10

Husqvarna 603001401

Pipe, Injection, Middle

$

$

Not available

11

Husqvarna 603001402

Clamp, Pipe, Bottom

$

$

Not available

12

Husqvarna 603001403

Assy Pipe, Over Flow

Note: (includes items 13 and 14)

$

$

Not available

13

Husqvarna 603001734

Clip, Pipe, Return

$

$

Not available

14

Hose, Overflow

$

$

Not available

15

Husqvarna 603001405

Screw, Air Bleeder

$

$

Not available

16

Husqvarna 603001735

Kit, Holder, Nozzle

Note: (includes items 17 through 19)

$

$

Not available

17

Husqvarna 603001392

Assembly, Nozzle Holder

$

$

Not available

18

Husqvarna 603001396

Seal, Heat

$

$

Not available

19

Husqvarna 603001404

Gasket, Nozzle

$

$

Not available
