HUV 4420 - Husqvarna 4x4 Utility Vehicle (2006-11) Park Brake Pedal Assembly Parts Diagram

4x4 Utility Vehicle

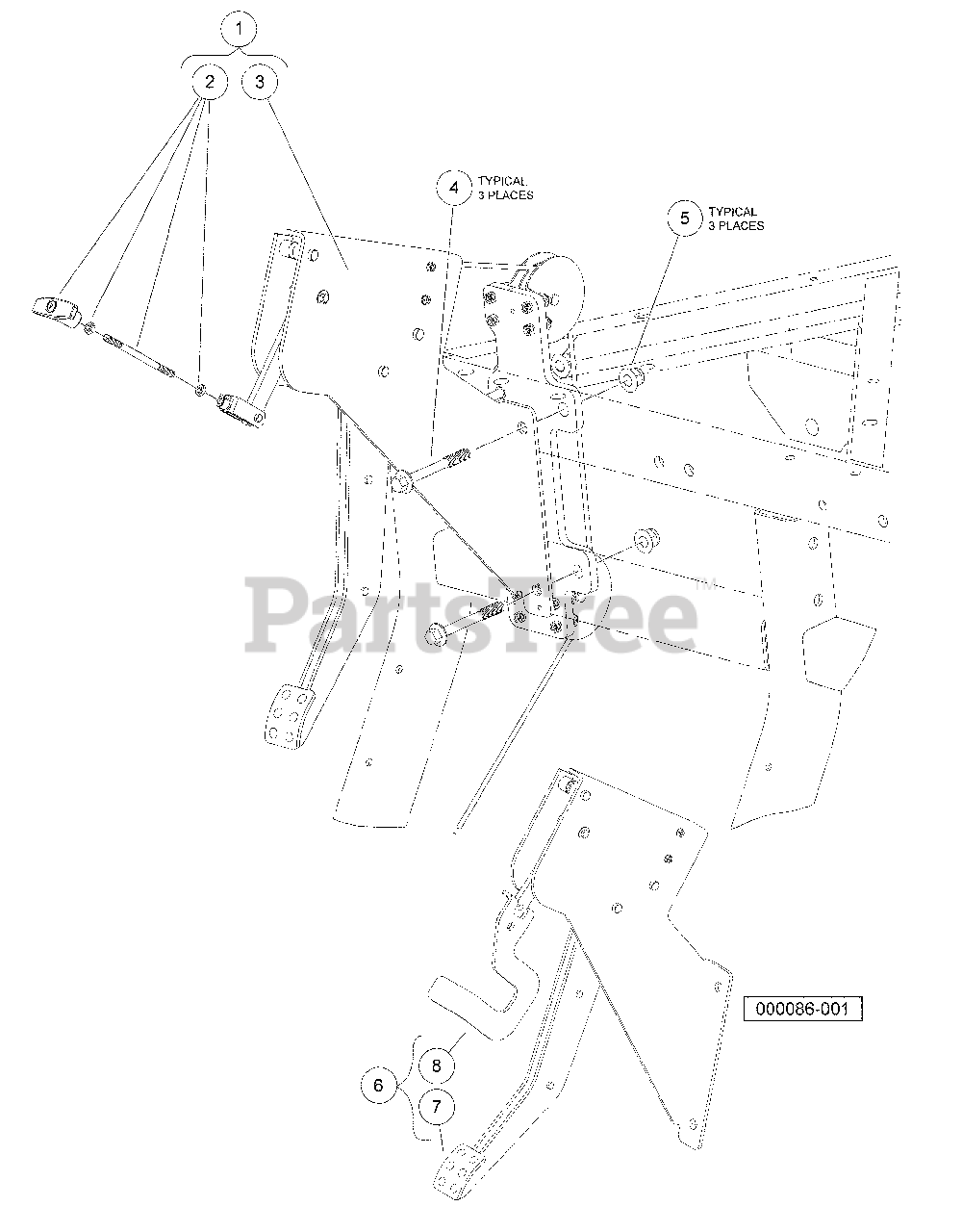

Park Brake Pedal Assembly Parts Diagram

  • Title

1

Pedal Asm, Brake, Park

Note: (includes items 2 and 3)

$

$

Not available

2

Husqvarna 603001777

Kit, Handle, Brake, Park

$

$

Not available

3

Pedal, Brake, Park

$

$

Not available

4

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

5

Husqvarna 603001308

Lock Nut, Flg M8 X 1.25 Nylon

$

$

Not available

6

Husqvarna 531307375

Asm, Pedal, Brake, Hard

Note: (includes items 7 and 8)

$

$

Not available

7

Pedal, Brake, Park

$

$

Not available

8

Husqvarna 603003526

Handle, Release, Park Brake

$

$

Not available
