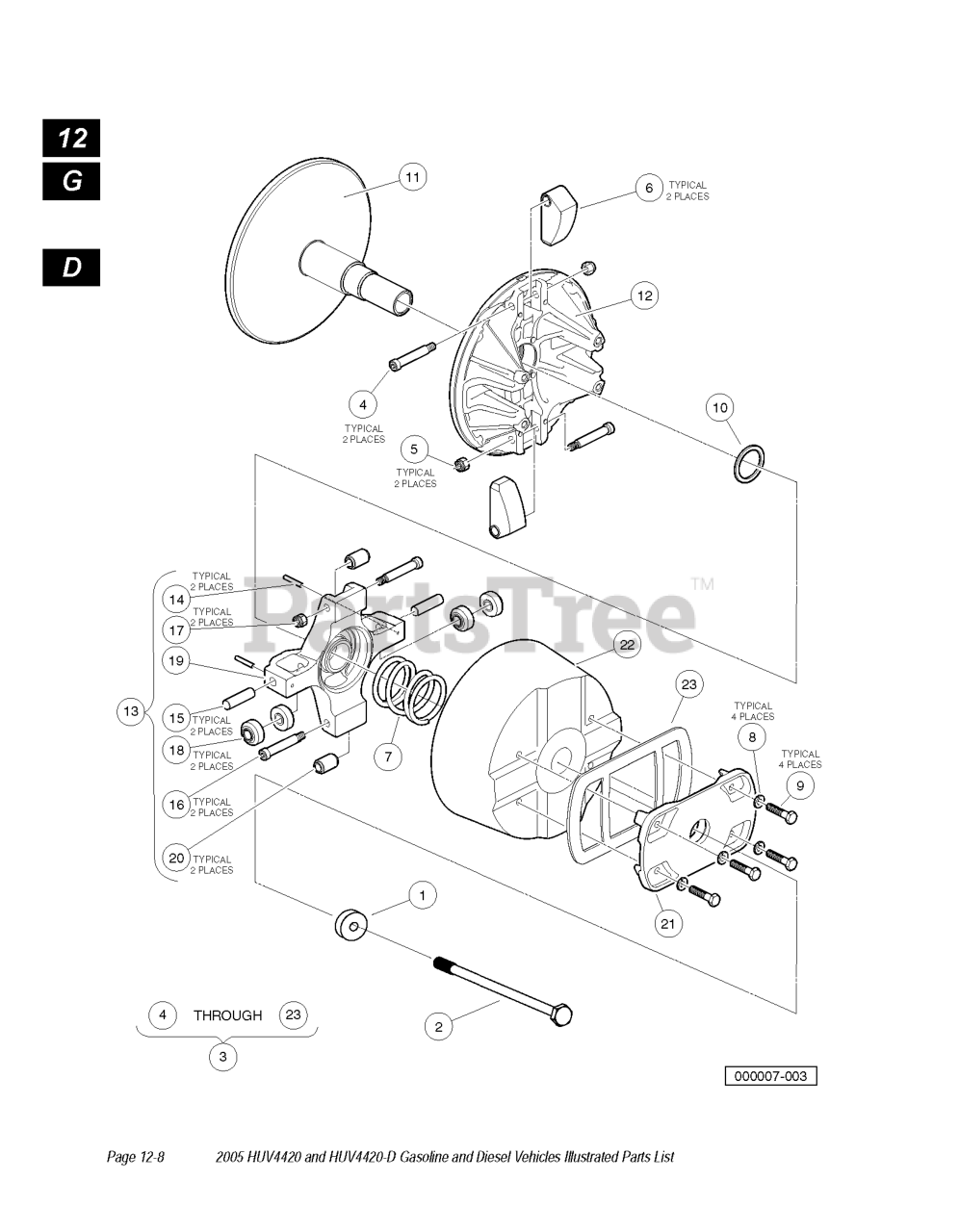

HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) CLUTCH Parts Diagram

4x4 Utility Vehicle

CLUTCH Parts Diagram

  • Title

3

Husqvarna 603000982

CVT, PRIMARY GAS
(Superseded to 586045901)

$

$

Not available

4

Husqvarna 603001611

SCREW, SHLDER HEX, .312 X 1.75

$

$

Not available

2

Husqvarna 603001164

BOLT, M10X1.25X200 LOCTITE

$

$

Not available

23

Husqvarna 531308139

GASKET, COVER, CLUTCH, 4X4

Note: 4X4

$

$

Not available

15

Husqvarna 603001609

PIN, DOWEL, .375 X 1.50

$

$

Not available

6

Husqvarna 603001615

SUB ASSY, WT CLUTCH, GAS

$

$

Not available

16

Husqvarna 603001611

SCREW, SHLDER HEX, .312 X 1.75

$

$

Not available

17

Husqvarna 603001613

NUT, LOCK HEX, 1/14-20, FLEXLC

$

$

Not available

5

Husqvarna 603001613

NUT, LOCK HEX, 1/14-20, FLEXLC

$

$

Not available

10

Husqvarna 603001619

SHIM, 1.63 X 1.33

$

$

Not available

1

Husqvarna 603000938

WASHER, STEPPED, CVT PRIMARY

$

$

Not available

20

Husqvarna 603001612

SUB ASSY, ROLLER WEIGHT

$

$

Not available

14

Husqvarna 603001608

PIN, SPRING SLOTTED,1.25 X 1.0

$

$

Not available

7

Husqvarna 603001616

SPRING, COMPRESSION, PRIMARY

$

$

Not available

22

Husqvarna 531308140

COVER, CLUTCH, 4X4

Note: 4X4

$

$

Not available

8

Husqvarna 603001617

WASHER, LOCK, H SPRING, 1/4

$

$

Not available

9

Husqvarna 603001618

SCREW, CAP, HEX HD, 1/4 X 1.25

$

$

Not available

18

Husqvarna 603001620

ROLLER, TORQUE, GAS

$

$

Not available
