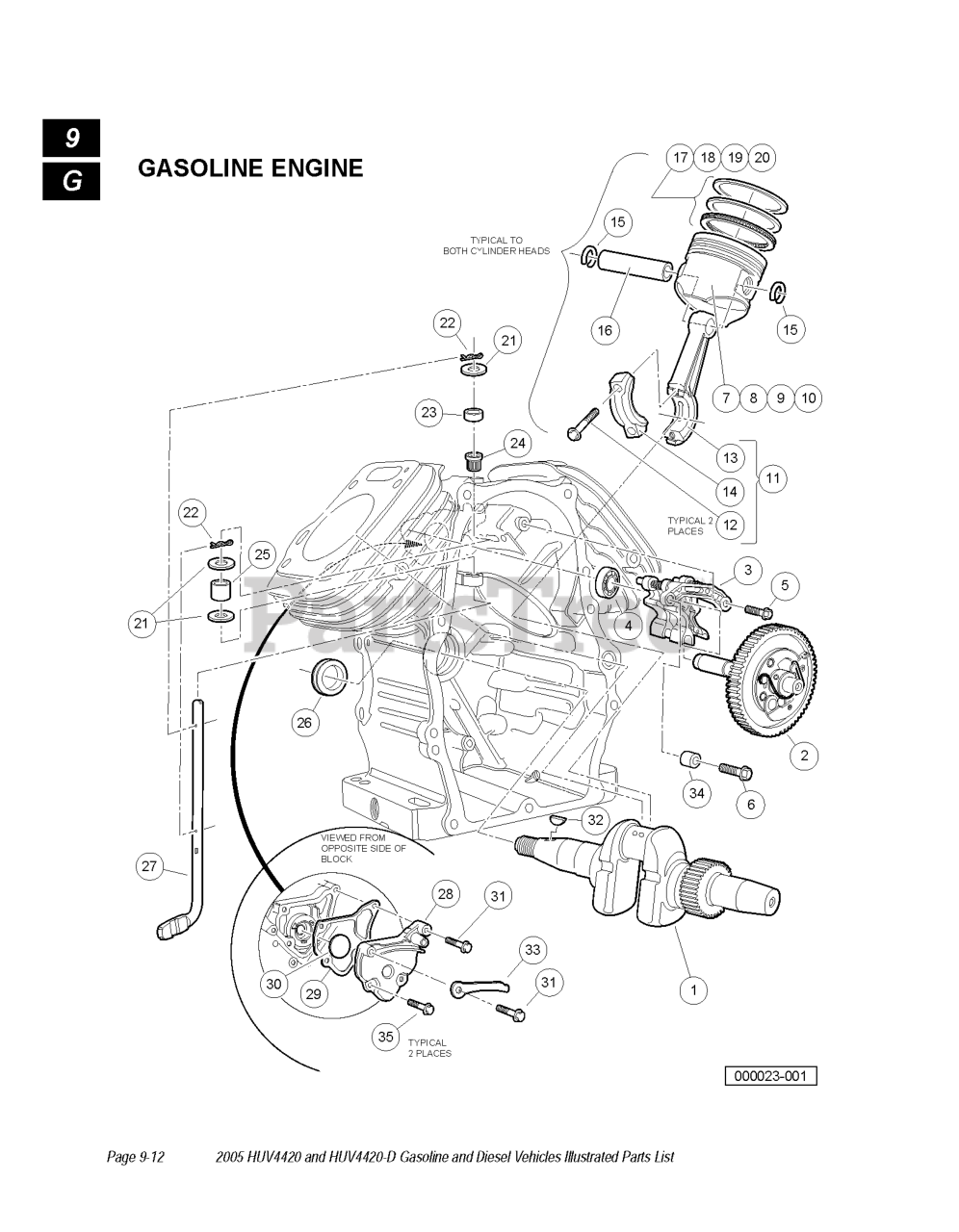

HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) CRANKCASE Parts Diagram

4x4 Utility Vehicle

CRANKCASE Parts Diagram

  • Title

6

Husqvarna 603001509

BOLT, FLANGE, M6 X 1 X 25

$

$

Not available

2

Husqvarna 603001505

CAMSHAFT ASSY.

$

$

Not available

15

Husqvarna 603001515

2LIP, PISTON PIN, 18MM

$

$

Not available

18

Husqvarna 603001518

RING SET, PISTON, OS 0.25

$

$

Not available

5

Husqvarna 603001508

BOLT, FLANGE, M5 X 1 X 16

$

$

Not available

3

Husqvarna 603001506

LIFTER ASSY., VALVE

$

$

Not available

29

Husqvarna 603001530

GASKET, BREATHER COVER

$

$

Not available

20

Husqvarna 603001520

RING SET, PISTON, OS 0.75

$

$

Not available

31

Husqvarna 603001532

BOLT, FLANGE, M6 X 1 X 32

$

$

Not available

26

Husqvarna 603001527

OIL SEAL, 38 X 58 X 9

$

$

Not available

1

Husqvarna 603001504

CRANKSHAFT

$

$

Not available

8

Husqvarna 603001511

PISTON, OS 0.25

$

$

Not available

21

Husqvarna 603001522

WASHER, PLAIN, M8

$

$

Not available

35

Husqvarna 603001696

BOLT, FLANGE, 6 X 16

$

$

Not available

4

Husqvarna 603001507

BEARING, RADIAL BALL, 6003

$

$

Not available

23

Husqvarna 603001524

BEARING, NEEDLE, 8 X 12.7 X 11

$

$

Not available

28

Husqvarna 603001529

COVER, BREATHER

$

$

Not available

17

Husqvarna 603001517

RING SET, PISTON, STD

$

$

Not available

25

Husqvarna 603000446

BEARING, NEEDLE, 8 X 12 X 10

$

$

Not available

10

Husqvarna 603001513

PISTON, 0.75

$

$

Not available

9

Husqvarna 603001512

PISTON, OS 0.50

$

$

Not available

12

Husqvarna 603001521

BOLT, CONNECTING ROD, 6 X 37

$

$

Not available

16

Husqvarna 603001516

PIN, PISTON

$

$

Not available

19

Husqvarna 603001519

RING SET, PISTON, OS 0.50

$

$

Not available

7

Husqvarna 603001510

PISTON, STD

$

$

Not available

27

Husqvarna 603001528

SHAFT, GOVERNOR ARM

$

$

Not available

30

Husqvarna 603001531

VALVE, BREATHER

$

$

Not available

24

Husqvarna 603001525

OIL SEAL, 8 X 14 X 5

$

$

Not available

11

Husqvarna 603001514

ROD ASSY., CONNECTING

$

$

Not available

32

Husqvarna 603001558

KEY, SPECIAL WOODRUFF, 25 X 18

$

$

Not available

34

Husqvarna 603001695

PIN A, DOWEL

$

$

Not available

22

Husqvarna 603001523

PIN, LOCK, 8MM

$

$

Not available

33

Husqvarna 603001582

CLAMP, WIRE

$

$

Not available
