HUV 4420 - Husqvarna 4x4 Utility Vehicle (2008-03) ELECTRICAL Parts Diagram

4x4 Utility Vehicle

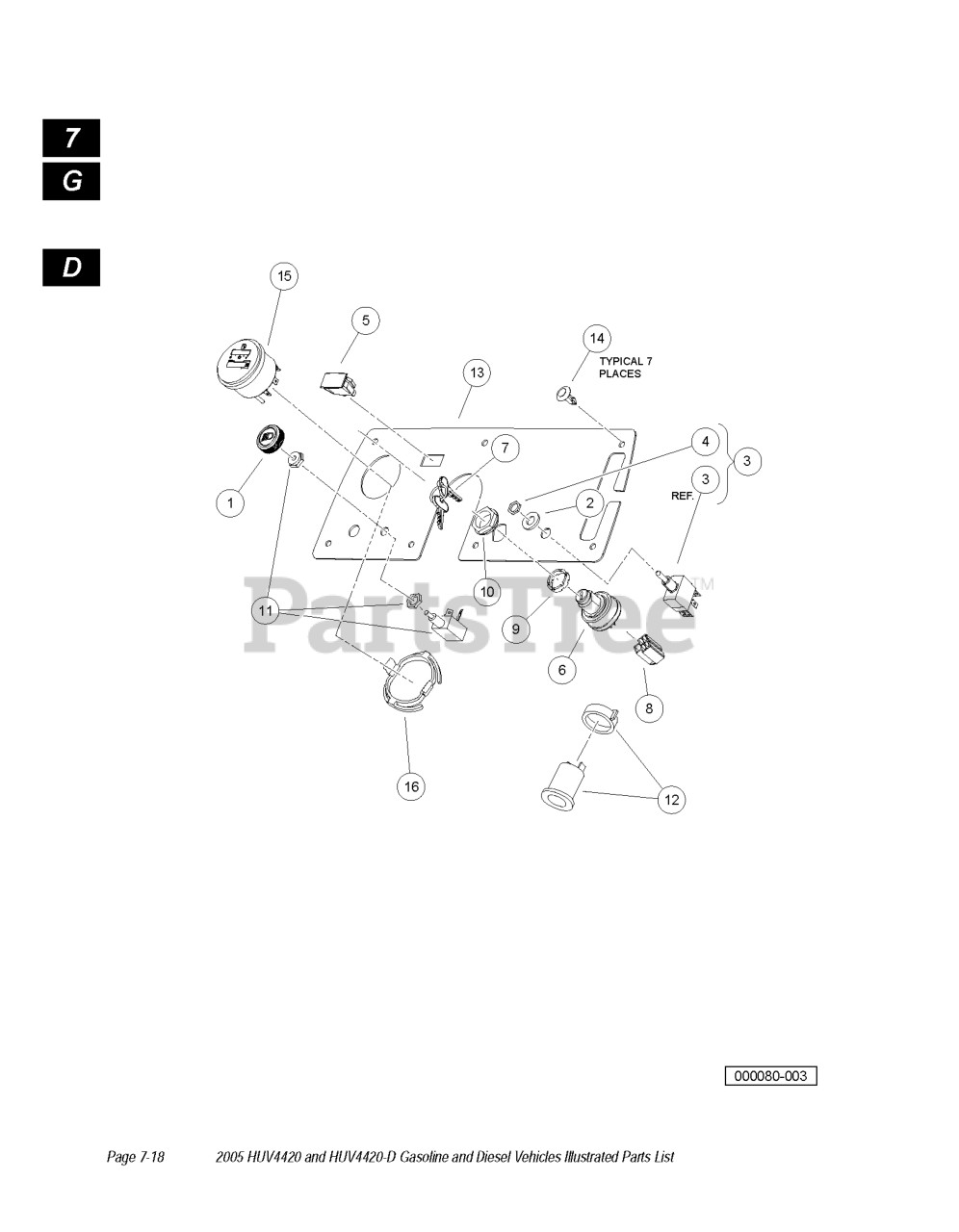

ELECTRICAL Parts Diagram

  • Title

15

Husqvarna 603004168

GAUGE FUEL-HOUR SEP GND

$

$

Not available

2

Husqvarna 603000272

WASHER, 7/16 FLAT

$

$

Not available

13

Husqvarna 603000920

PANEL, INSTRUMENT, GAS

$

$

Not available

12

Husqvarna 603000801

ACCESSORY RECEPTACLE

$

$

Not available

6

Husqvarna 603000727

KEY SWITCH 12V KEY START

$

$

Not available

7

Husqvarna 603000728

KEY SET

$

$

Not available

3

Husqvarna 603000493

TOGGLE SWITCH

$

$

Not available

16

Husqvarna 603004169

CLIP METER ROUND

$

$

Not available

11

Husqvarna 603000762

SWITCH, LIGHT

$

$

Not available

14

Husqvarna 603000695

SCREW, TUFLOK PANEL, 1/4

$

$

Not available

9

Husqvarna 603000760

SPACER, KEYSWITCH

$4.99

$

In Stock, only 2 left!

0

1

Husqvarna 603000191

LIGHT SWITCH KNOB

$

$

Not available

10

Husqvarna 603000761

NUT, KEYSWITCH

$

$

Not available

5

Husqvarna 603000366

LIGHT, OIL

$

$

Not available
