HWPS 26600RV (84649) - Snapper 26" Walk-Behind Mower, 6hp ENGINE COMPONENTS Parts Diagram

26" Walk-Behind Mower, 6hp

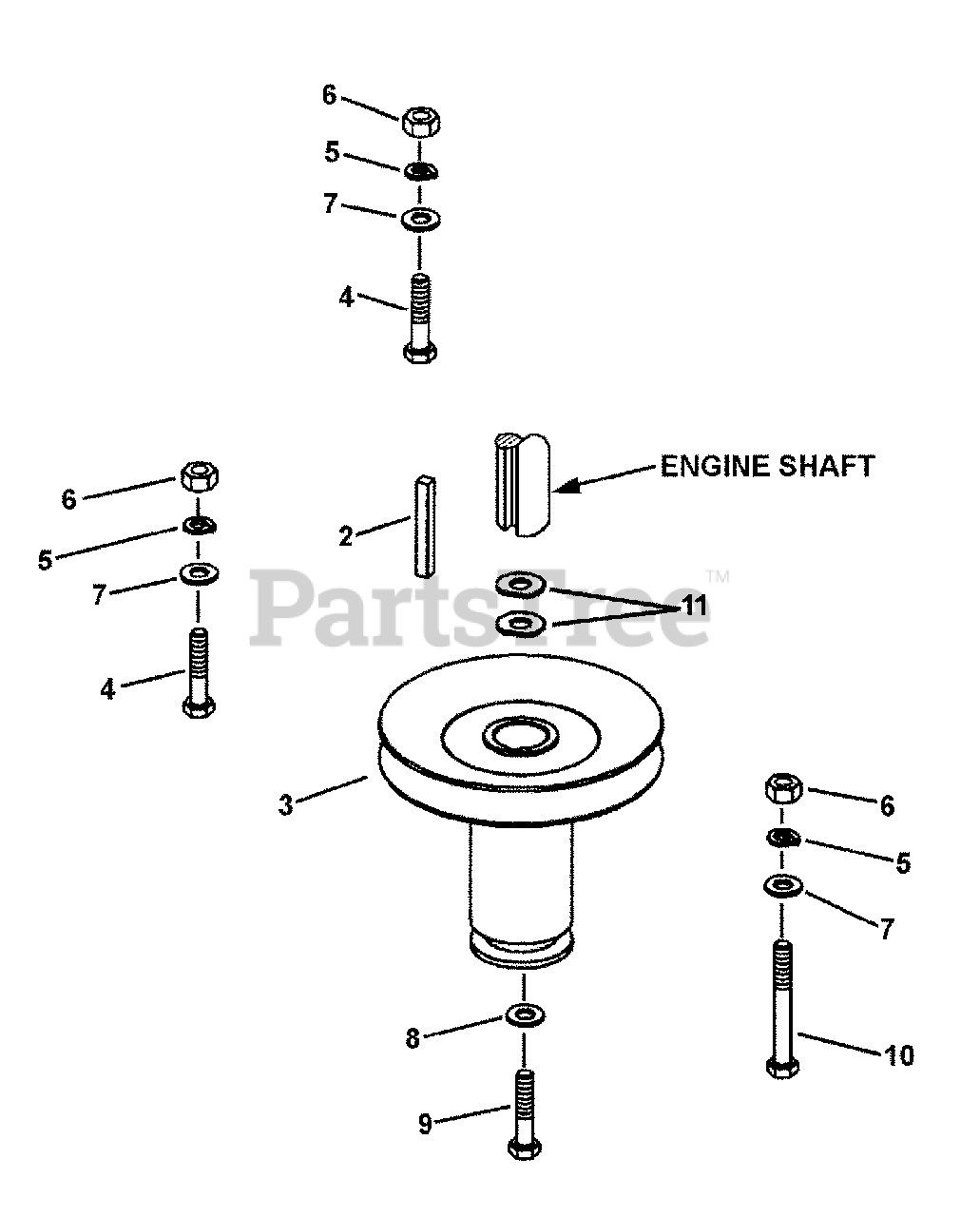

ENGINE COMPONENTS Parts Diagram

  • Title

1

*ENGINE, 6HP (Robin Part No. EH18V)

Note: Model EH180V00053 #1

$

$

Not available

1

*ENGINE, 7HP B&S Intek

Note: Model 12H672 Type 0110 Trim E1

$

$

Not available

2

Snapper 7010210

KEY 1/4" Square x 2" long
(Superseded to 703890)

Note: used on HWPS26600RV model

$4.99

$

In Stock, Qty 7

0

2

Snapper 7013250

KEY 1/4" Square x 1" long
(Superseded to 5050407X8SM)

Note: used on HWPS26700BV model

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7046812

PULLEY, Engine
(Superseded to 7046812YP)

$93.99

$

In Stock, only 1 left!

0

4

Snapper 7090242

SCREW, 5/16-24 x 1-1/2" Hex Head Cap, GR 2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7090223

NUT, 5/16-24 Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7079268

WASHER, 3/8" Split Lock
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

9

Snapper 7090160

SCREW, 3/8-24 x 1" Hex Head Cap, GR 5
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

10

Snapper 7090246

SCREW, 5/16-24 x 2-1/2" Hex Head Cap, GR 5
(Superseded to 7090246YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7044770

SPACER, .06 Blade Hub
(Superseded to 7044770YP)

Note: used on Briggs model only

$4.49

$

Usually ships in 2-12 days

0
