HydroDrive (5900806) - Ferris HydroDrive Series 48" Walk-Behind Mower, 16hp Deck Lift Group Parts Diagram

HydroDrive Series 48" Walk-Behind Mower, 16hp

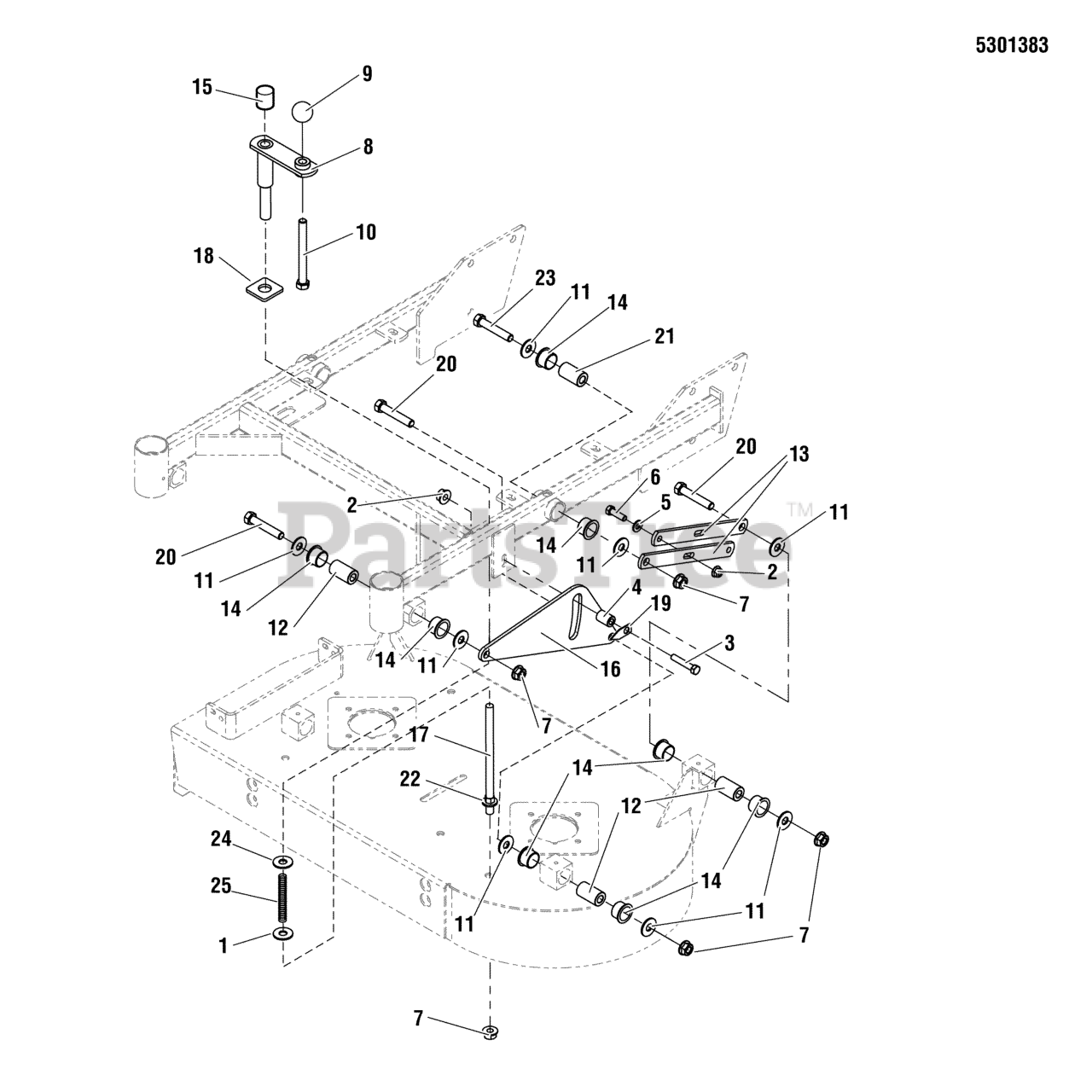

Deck Lift Group Parts Diagram

  • Title

1

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

2

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

3

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 6

0

4

Ferris 5042658

SPACER, .39 X .75 X 1.06
(Superseded to 5042658SM)

$7.49

$

In Stock, Qty 6

0

5

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

6

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

7

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 12

0

8

Ferris 84008454

CRANK, Deck

$

$

Currently unavailable

9

Ferris 5021733

KNOB, PLASTIC, 1/2-13
(Superseded to 5021733SM)

$9.49

$

In Stock, only 2 left!

0

10

Ferris 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, Qty 6

0

11

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5101413

SPACER, .52 X 1.00 X 1.825
(Superseded to 5101413FS)

$12.99

$

In Stock, only 1 left!

0

13

Ferris 5403224B

BAR, DECK LIFT - ADJ - RED

$10.99

$

Usually ships in 2-12 days

0

14

Ferris 5023356

BUSHING, 1.00X1.13X.75, PLA
(Superseded to 5023356SM)

$6.49

$

Usually ships in 2-12 days

0

15

Ferris 5100500

CAP, VINYL, .937 ID X 1.00

$

$

Currently unavailable

16

Ferris 5403477B

PLATE, DECK HEIGHT INDICATOR - SNP RED

$33.99

$

Usually ships in 2-12 days

0

17

Ferris 5101516

ROD, DECK LIFT, STUD
(Superseded to 5101516FS)

$29.99

$

Usually ships in 2-12 days

0

18

Ferris 5102772

WASHER, SQ, .715ID X 1.63SQ X 14TH, CZ

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5101310

POINTER, DECK HEIGHT

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

21

Ferris 5043366

SPACER, .50 X 1.00 X 2.25

$13.99

$

Usually ships in 2-12 days

0

22

Ferris 5025500

HEX NUT, 1/2-13, SERRATED FLANGE, YZ
(Superseded to 5025500FS)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

Usually ships in 2-12 days

0

24

Ferris 5025159

WASHER, 5/8 USS

$

$

Currently unavailable

25

Ferris 5101722

SPRING, COMP, .695 X .885 X 7.5, BLACK

$24.99

$

Usually ships in 2-12 days

0
